Manual Rotary Microtome for Hard Specimens

Product Description

Product Description
Product Description

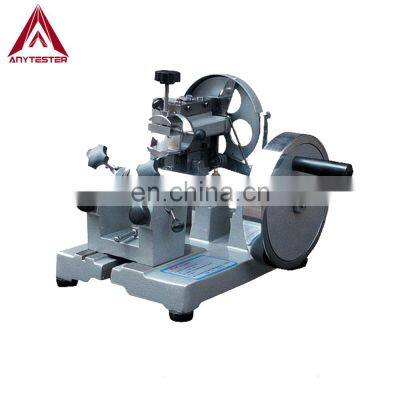

KD202 Manual Rotary Microtome adopts advanced guide ways, high-strength alloy steel materials, and ideal devise. It’s very suitable for cutting fiber, plastic, bone, plant, hair and other hard specimens.
Specification

Item	KD202
Section thickness range	1～25μm
Max specimen size	35 x 25mm
Min setting value	1μm
Precision error	±10%
Maximum movement of knife holder base	50mm
Sample horizontal displacement	30mm
Sample vertical displacement	50mm
Dimension	280×300×240mm
Power supply	220V, 50Hz
Net weight	20kg

Details & Features
★ Precise positioning system with0 level indication, very simple for operation.★ It can obtain ideal section no matter using standard slicing knife or disposable slicing knife.
★ Smooth and reliable operation.
★ Adopt crank drive, ratchet feed mechanism, with continuous slicing and other basic functionse
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery

Packaging
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container
