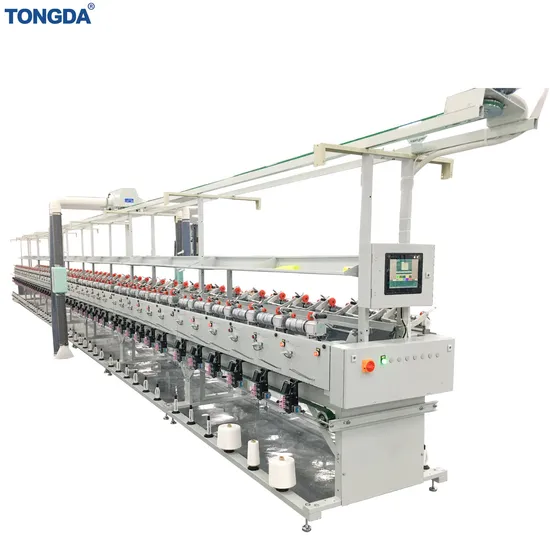

Rewinding Machine for Different Yarn with High Speed and Efficiency

Product Description

Product display and advantages

Application Occasions:
The bobbin yarn forming process and special yarn winding processs before tube dyeing are suitable for the winding process of cotton, wool, hemp, synthetic short fibers, andblended yarns
Application Occasions:
The tube forming process after tube dyeing and the special yarn winding process are suitable for the winding process of cotton, wool, hemp, synthetic short fibers, andblended yarns

CORE ADVANTAGE:
·LOW ENERGY CONSUMPTION AND LABOR SAVINNG
Achieve a_25% reduction in comprehensive energy consumptionand a 40% reduction in laborcosts,30%increase in production capacity and efficien cy.
·LOW PRICE AND SHORT EOUIPMENTLNVESTMENT PBP
Automatic doffing with full tube and automatic replacement of spare tubes to reduce downtime.
·HIGH LNTELLIGENT
High level of intelligence and auto mation, the multitask control platform can detect and record the operating status of each ingot equipment in real-time, as well as the warning system, achieving productiion capacity visualization, dataization, intelligence, and ERP integration with the customer's central control system platfornn.
·INTELLECTUAL PROPERTY PROTECTION
Provide customized Functional requirement services for customers,develop software and hardware independently, ensure prices, and no one can repair them), so as to avoid worries in the future.of accessories, high prices, and no one can repair them), so as to avoid worries in the future. Provide lifelon maintenance services for equipment.
Product Display
Intelligent Tension Control

Programmable control to achieve uniform and consistent tension and density, en suring spindle difference.
High Precision Length Gauge
Suitable for pro cesses with high precision requirements for length measurement, with a fixed length accuracy of less than 0.5%.
Electronic Anti Overlap

Improved the quality of finished yarn forming, reduced yarn wear, and avoid ed un win din g, unrolling, and disordered yarn.

Straight Yarn Path Design Reduce the contact points between yarn and yarn path, reducethe hairiness caused by friction, and increase the windingspeed up to 1200m/min.

Mliddle Conveyor Beltg
The shedding pro cess is labor-saving, easy to operate, arnd eliminates the need for frequent manual lifting of finished yarn.
Main technicl parameters

Sofa high-speed auto winder
Grooved drum	O/D82mm, pitch2.5, symmetrical 0°
Guide stroke	152mm Optional
Takeup Package	Loose0°, 5° 57
Spindle spacing	350mm
Max speed	1200m/min
Configuration	12spindle/S, less than 9section
Slow Start	Fixed start time, Smooth Start
Transverse	Adjustable lateral soft edge
Tbalancer	Gas spring
Driving method	90WDC motor, Independent control
Overlapping	Electronic Overlanooing System
Installed Power	Installed Power
Power	380V50HZ/60HZ
Machine Dimension	L2240mm*9 (S) ;W1100mm;H2400mm
Cleaner	2200W,Hopper Optional
Hard high-speed auto winder
Grooved drum	O/D82mm, pitch2.5, symmetrical 0°
Guide stroke	147mm Optional
Takeup Package	0°,3°30,4°20,5°57
Spindle spacing	350mm
Max speed	1200m/min
Configuration	12spindle/S, less than 9section
Automatic Length	Measurement Accuracy 0.5%
Slow Start	Fixed start time, Smooth Start
Transverse	Adjustable lateral soft edge
Tbalancer	Gas spring
Driving method	90WDC motor, Independent control
Overlapping	Electronic Overlanooing System
Waxing	Electric
Installed Power	90W/s, Cleaner power, Negative pressure Total 15KW
Power	380V50HZ/60HZ
Machine Dimension	L2240mm*9 (S) ;W1250mm;H2400mm
Cleaner	2200W,Hopper Optional

Why Choose Us
Regarding the package & delivery
Company Profile
Tongda Group , the vice president company of CTMA. specializes in design, manufacturing, and marketing of a wide range of Textile machinery, it has 7 branch companies, mainly produces blow room, cotton carding machine, draw frame, Roving frame, rotor spinning machine, ring spinning machine, water jet loom, nonwoven machinery etc. The company has built a complete infrastructure to support a full effort for product research and development to satisfy the needs of the marketplace. Production capability for cotton machinery and spinning machinery products sustains an annual quantity of 20,000 units of various models.Tongda has been growing steadily since 1952 when the spinning machine were developed. Tongda places its focus on becoming a professional supplier of Textile machinery and new materials with continuous development of modern ergonomic designs, a reliable service support network, and an efficient global network of logistics. Today, Tongda machines are being widely used by thousands of cotton and yarn, textile manufacturers. Along with product development, Tongda has been awarded technology patents. Special techniques in design and manufacturing have also been perfected.Tongda is an ISO9001, ISO14001, and ISO13485 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. Tongda will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.
Certifications
Our Exhibitions
FAQ
(1) Q: Why Choose Our Company?
A: History: TONGDA Textile Machinery Group was establish in 1952. Now have more than 65 years old history. Main Products: TONGDA Group specializes in design, manufacturing, and marketing of a wide range of Textile machinery, it has seven branch companies, mainly produces ring spinning frame, roving frame, weaving machine (water Jet loom/Air jet loom/rapier Loom), warping machine, quilting machine and nonwoven machine. We provide design for complete line of spinning mill for cotton yarn, polyester yarn, wool yarn, flax/linen yarn, machines including blow room, carding machine, draw frame, roving frame, ring frame, winding machine, open end spinning machine and the air conditioning system and waste collection system for spinning mill. We also provide workshop layout design and trench design, and air pipe layout design.
(2) Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.
(3) Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
(4) Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
(5) Q: How about the quality?
A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
(6) Q: Are you a manufacturer or Trade Company?
A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
(7) Q: Product /Quality Guarantee and After Sale Service?
A: 1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
(8) Q: One-stop Service:
A: We have R&D department including more than 100 engineers which are improving and enlarging our supply range.
(9) Q: Certification?
A: TONGDA is an ISO9001, ISO14001, and ISO13485 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. TONGDA will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.

---
