Display Specifications

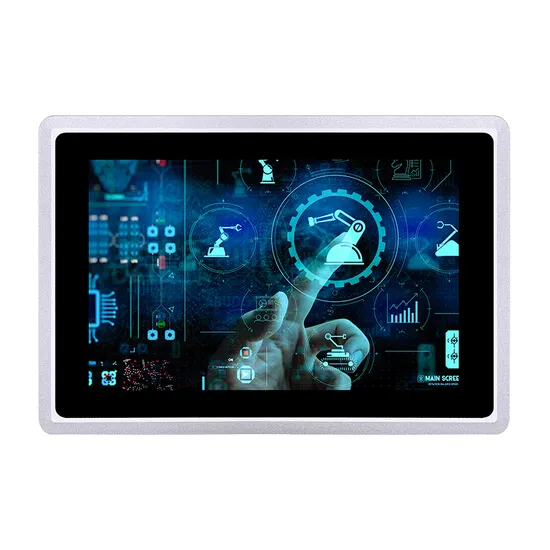

| Size | 10.1-inch industrial screen |
| | Resolution | 1280(H) x 800(V) |
| | Brightness | 350 cd/m2 |
| | Contrast ratio | 900:1 |
| | Viewing angle | 85/85/85/85(L/R/U/D) |
| | Backlight life | 30000HRS≥ |
Touch Specifications
| Touch Type | USB interface, full-screen 10-point capacitive touch |
| | Touch mode | Finger or capacitance pen. |
| | Transmittance | 85%≥ |
| | Hardness | Mohs hardness 6H |
Built-in Interface
| CPU | Optional intel onboard Core 6 to 11 generations and Celeron CPU TDP15W. |
| | Memory | Maximum support is 48G (selected according to CPU) |
| | Hard Disk | SSD is optional above 32g, and 2.5-inch SATA hard disk can be added. |
| | WIFI | Optional 2.4G&5G dual frequency. |
| | 4G/5G | Optional Mobile, Unicom and Telecom |
| | Speaker | 2 x 8Ω2W |
| IO Interface | 1 x HDMI up to 4K |
| | 1 x MINI DP up to 4K |
| | 2 x LAN. |
| | 4 x COM ports (optional COM3 for 485). |
IO Interface
| 4 x USB; |
| 1 x DB9 (8-way GPIO); |
| 1 x DC; |
| 1 x Phoenix terminal power supply; |
| 1 x ADUIO (LINE OUT+ MIC IN). |
| 1 x M12 metal power switch with light; |
Environmental Reliability
| Working Temperature | 0ºC~50ºC |
| Storage Temperature | -20~70 ºC |
| Operating humidity | 95%@40ºCNo condensation |
| Vibration | 5-19HZ/1.0mm amplitude, 19-200HZ/1.0g acceleration |
| Waterproof | Front panel IP65 |
Power supply
| Adapter power supply | DC9-36V DC power supply |
| Maximum Power Consumption | Less than 50W |
Physical Characteristics
| Dimension | 276 x 188 x 63.6mm |
| Hole Size | 263.6 x 175.6mm |
| Color | Silver color |
| Case Material | Full metal case |
| Weight | Approx. 2.5KG |
| Installation | Fanless design, recessed and VESA wall mounting |
| Operating System | Windows 7/10/11/Linux, etc., depending on the appropriate motherboard. |
| Product Certifications | CCC/CE/FCC/RoHs |
| Adaptable Motherboards | Optional | Items Optional Descriptions |
| TL500Z3AW | CPU | Intel 11th Generation Celeron 6305 Processor |
| RAM | Support up to 48G |
| Hard Disk | M.2 SSD 32G or above optional |
| WU410Z3A | CPU | Intel Core 10th Generation I7-10710U, I5-10210U, I3-10110U, Celeron 5205U CPUs |
| RAM | Maximum support 40G |
| Hard Disk | M.2 SSD 32G or above optional |
| WU310Z3A | CPU | Intel Core 8th Gen I7-8565U, I7-8550U, I5-8265U, I5-8250U, I3-8145U, Celeron 4205U CPUs |
| RAM | Maximum support 40G |
| Hard Disk | M.2 SSD 32G or above optional |
| KU250Z3EW | CPU | Intel Core 7th Generation I7-7500U, I5-7200U, I3-7100U |
| RAM | Maximum support 24G |
| Hard Disk | M-SATA SSD 32G or above optional |
| SU110Z3EW | CPU | Intel Core 6th Generation I7-6500U, I5-6200U, I3-6100U, Celeron 3865U, 3965U CPUs |
| RAM | Maximum support 24G |
| Hard Disk | M-SATA SSD 32G or above optional |
