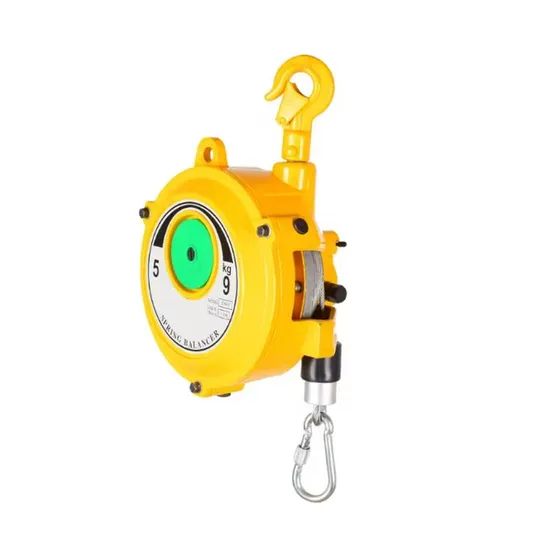

Lifting-Equipment Parts 440 Lbs 220 Lbs Spring Balancer/Balance Weighing Scale

Product Description

Model	Bearing Range	Min Capacity	Max Capacity	Working Length	N.W
SWB-3	1-3kg	1kg	3kg	1.5m	1.7kg
SWB-5	3-5kg	3kg	5kg	1.5m	1.8kg
SWB-9	5-9kg	5kg	9kg	1.5m	3.6kg
SWB-15	9-15kg	9kg	15kg	1.5m	4kg
SWB-22	15-22kg	15kg	22kg	1.5m	7.3kg
SWB-30	22-30kg	22kg	30kg	1.5m	7.8kg
SWB-40	30-40kg	30kg	40kg	1.5m	10kg
SWB-50	40-50kg	40kg	50kg	1.5m	10.5kg
SWB-60	50-60kg	50kg	60kg	1.5m	11.5kg
SWB-70	60-70kg	60kg	70kg	1.5m	12kg
SWB-80	70-80kg	70kg	80kg	1.5m	12.5kg
SWB-100	80-100kg	80kg	100kg	1.5m	18kg
SWB-120	100-120kg	100kg	120kg	1.5m	19kg
SWB-140	120-140kg	120kg	140kg	1.5m	20kg
SWB-160	140kg-160kg	140kg	160kg	1.5m	22kg
SWB-180	160kg-180kg	160kg	180kg	1.5m	24kg
SWB-200	180kg-200kg	180kg	200kg	1.5m	26kg

You May Like

A tool spring balancer are a type of lifting equipment that will take the weight (neutralise the weight) of a tool or equipment which is attached to it and this is achieved by applying the correct tensioning a spring of the tool balancer.Because the tool spring balancer now takes the load effectively the item is now nearly weightless. If slightly more tension is applied the return spring of the tool balancer than the self weight of the tool the tool being balanced then the tool will retract slowly; the more tension that is applied to the spring the harder it will be for the operator to pull down the tool.
spring balancer is designed by our factory using advanced technology from abroad.An auxiliary tool that is manufactured and used in conjunction with an operating tool. This series of products use the help of The energy accumulated by the coil spring makes the suspended operating tool in a weightless state, greatly reducing The labor intensity of operators is reduced, and the labor production efficiency is improved.Therefore, the spring Balancer is an indispensable auxiliary work in factory production.
Spring balancers are suitable for assembly lines and various fixed positions where the workload is relatively concentrated.It is widely used for steam when operating tools are heavy and the duration of using tools is long.
Cars, tractors, household appliances and machinery manufacturing and other fields, whether in the assembly line Or working at a fixed station, where manual tools and lifting equipment are used.also can be used as an auxiliary tool for lifting tools. The tools are heavy and need to be When working frequently up and down,the lifting force of the balancer can be used to reduce labor. The purpose of strength.

---
