2 Cavities Semi Automatic Blowing Molding Machine for Water Plant

Product Description

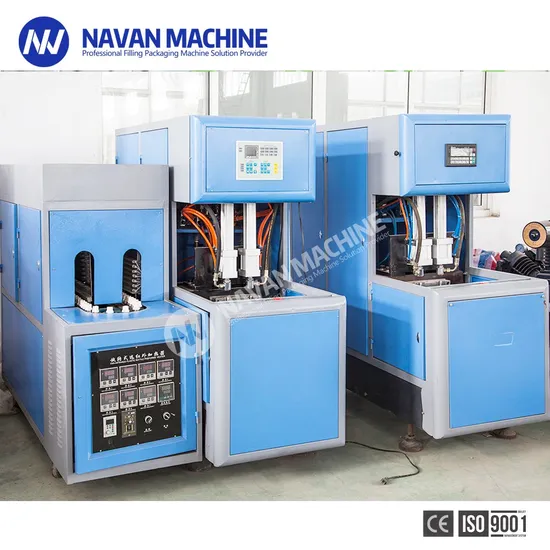

Semi Automatic 2 Cavity 0.2-2L PET Bottle Blowing Machine
Navan Semi Automatic 0.2 - 2.0L PET Bottle Stretch Blow Molding Machine factory and Semi Automatic 0.2 - 2.0L PET Bottle Stretch Blow Molding Machine wholesalers, We produce NB series of fully automatic and semi-automatic PET blow molding machines with production capacity from 400 to 8000 bottles per hour to satisfy different customers' requirements.
Product Description
Semi automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 100-2000ml. It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.
The machine is small with low investment, easy and safe to operate .
New Heating System.
*Perfect heating system design decrease power consumption.
*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.
*Cycle air-cooling system keeps the oven temperature constantly.
Easy To Change Bottle Shape.
*Drawer type mold structure design is easy for mold changing. Within one hour can change a mold on the condition of same bottle neck diameter.
Intelligent Human-Machine Interface.
*Human-machine interface control, easy operate and monitor.
*Live production information supervise, auto record production data everyday
*Failure warning and troubleshooting.

Container	Max Container Volume Itr	2
	Max Neck Diameter mm	38
	Max Container diameter mm	110
	Max Container Height mm	350

Product Parameters

Model		NB-1000A
Molding	Clamping Force kg	13000
	Clamping Stroke mm	155
	Stretching strok mm	370
	Bottom Stroke mm	\
	Cavity Spacing mm	90-130
	Number of Cavity Cavities	2
	Carriage Unit pcs	72
Theoretical Output	bph	1000-1400
Electrical System	Total Power kw	18
	Heating Power kw	32x0.5KW=16
	Number of Lamp Layers Layers	8
Air System	Operating Pressure kg/cm²	7-9
	Low Pressure Air Consumpt Itr/min	600
	Blowing Pressure kg/cm²	20-30
	High Pressure Air Consumpt Itr/min	800
Chiller	Operating Pressure kg/cm²	2-4
	Temperature Range ºC	10-12
	Consumption kcal/hr	1000
	Flow Rate Itr/min	150
Machine(Blower)	Main machine dimensions mm(L*W*H)	1650 x650x1750
	Main Machine Weight kg	650
Machine(Heater)	Heater Dimensions mm(L*W*H)	1700 x670x1600
	Heater Weight kg	350

Certifications

Packaging & Shipping

NAVAN Exhibitions
Company Profile
Navan machines
Navan Industrial has invested its best resources in technical research, to design and realize innovative in bottle blowing, filling, capping , labeling and packing systems which enable to respond and reach different demands and achieve new goals everyday, seizing the market's expectations in the pass years .
At the same time , we also provides turn-key services for customers, from plant layout, equipment manufacturing, production line setup, to operators training. We are always trying our best to meet the demands of our customers continuously and seeking for mutual development.
Today Navan has enhanced its exsitence both in domestic and global market. Thanks to its various and perfect cases, we provide our customers with delicated and customized solutions at quick response. Navan machines are utilized in large and small companies all around the world since 1990s.
Massive experience gained through the years of water, juice , soft drink , beer, honeys, sauces etc., with all the abundant experience we are able to deal with any problems related to specific customers requirements, such as daily or special products., and perfect the creation of various machine to satisfy any customer's demands.
Our Advantages
Navan Service
The sample service
1.We can send you the video of the running machine for your reference .
2.You are always welcome to come to visit our factory, and watch the operation of the machines here . We will make the arrangement to pick you up when you reach airport or railway station .
3.If we get the permission of the customer who has brought the machines from us ,we will arrange your visiting to their factory.

Customized service
1.we can design the machines according your requirements(material ,power,filling type,the kinds of the bottles, and so on).
2.At the same time we will give you our professional suggestion on factory design , bottle design , label design .... etc

After-sales service
1.We will provide the B/L and concerning Invoice , Packing List , Certificate .... on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions , we will send our engineer to your factory for the installation, testing and also training .
3.We provide one year warranty with spare parts free since machine installation done .
NAVAN supply and manufacture the followings machines
1) Water treatment equipment--- Electrolytic water equipment, RO purified equipment, UF purified equipment, Sand filter, Carbon filter, Water softner, Sea Water treatment.
2) Filling Machine --- 2 in 1 Filling Capping Machine / 3 in 1 Washing filling capping machine / 4 in 1 Washing filling capping machine / 5 in 1 Washing filling capping machine ---for your water, beer , kombucha , Kvass , cabonated drink,juice,wine,vinegar, milk,tea and so on.
--- 100 to 2500ml bottle, 3-10L,11- 20L bottle (3-6gallon bottle)
--- PET bottle, Glass bottle, PP bottle and Can
--- Pressure Cap , Screw cap, Aluminum cap, Grown Cap , T-cork , Wooden Cork and three (four) twist caps etc.
3) Labeling Machine --- Stick label, Shrink sleeve label, Hot melt Opp labels. Wet gule label
4) Printer --- Manual code printer , Inkjet printer , Laser printer
5) Packing Machine ---- Shrink wrapper , Carton Packer , Palletizer , Conveyor system , Robot Packing System
6) Bottle Blowing Machine --- Linear and Rotary Blowing Machine for making plastic bottle
7)Injection Molding Machine --- for your cap and proform.
8) Subsidiary products for drink production --- Bottle Washer, Bottle Capper, Conveyor, Bottle Dryer, Bottle Warmer, Bottle Loading system, Bottle unscrambler, CIP system, Bottle Cooler, Bottle Sterilizer, Blending tank, Storage Tank, Sugar Melting Pot, Syrup Filter Conveyor and so on.
NAVAN will supply you bottle design, label design, workshop design free and make Turnkey Project for you.
Don't hesitate to contact us if you show interesting on our beverage production machine and our NAVAN company
FAQ
Q1 : What is the warranty period?
We provide 12 months warranty for all spare parts. (exclude fragile parts).
Q2 : How do you control the quality?
1) All NAVAN machines are in strict accordance with the ISO quality and CE system requirements.
2) Each procedure is crafted by professional Skilled labour, followed by particular QC
3) All information of our products can be checked in efficient management system.
Q3 : What certifications do you have?
All our products are CE and ISO9001 certified. Numerous design and innovation patent for all our current models and spare parts. Such as the innovation patent squeegee design.
Q4 : What kind of service do you provide?
Before sales: Provide product information, market research forecasting, product customization, product processing, consultation and other services for your convenience.
After sales: 1. Technical training on according to customer requirements; 2. We promise replacement under warranty; 3. We promise to supply the maintenance spare parts; 4. Regular call back or visit customers; 5. On time response to mail and phone calls of your complaints or consultation.
Q5 : Are you a factory or a trading company, where are you located?
We are factory , just 150km(1.5hour by car) away from Shanghai Airport. We offer pickup service at Shanghai for your visit.
We Warmly Welcome Customers All Over The World To Our Company. ANY DEMANDS OR REQUEST ,Please Contract With Us FREELY!
