| US$13,500.00-14,500.00 | 3 Pieces (MOQ) |
| Specification: | |||

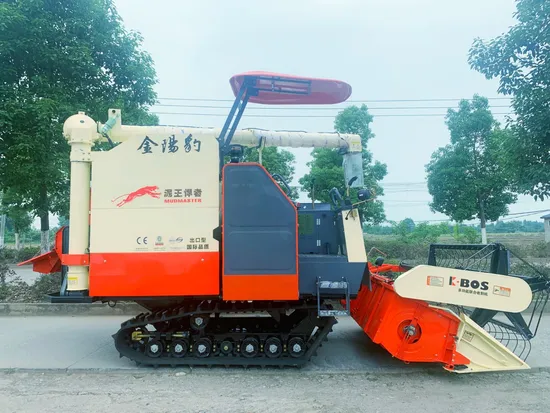

| Product Model | 4LZ-5.0Z Combine Harvester | ||
| Overall Dimension Length×Width×Heights ( mm ): | 5180×2585×2720 | ||
| Weight (kg) | 3420 | ||
| Productivity of Operating Hours(hm²/h): | 0.27~0.96 | ||
| Engine | Engine Model | 4D35ZT32 | |
| Rated Power ( kw/hp ) | 73.5KW/100HP, 80KW/108HP, 88KW/120HP | ||
| Engine Type | Water-Cooled, 4-Cylinder, DI-Injection, Vertical Turbocharged Diesel. | ||
| Rated Rotation Speed (r/min) | 2400 | ||
| Traveling System | Type of Gearbox: | HST X (3F, 3R) Hydraulic type + HST(3F, 3R) | |
| Rubber Track(mm): | 500 x 90 x 54 | ||
| Gauge | 1250 | ||
| Minimum Ground Clearance (mm) | 370 | ||
| Cutting header | Height Adjustment | Hydaulics. | |
| Cutting Width ( mm ) | 2100 | ||
| Header auger type | Telescopic Screw Conveying | ||
| Pickup Reel | D944mm; Qty 5 Eccentric Tooth(off-centre) | ||
| Threshing System | Threshing System | Spiked Tooth Axial Flow | |
| Threshing Cylinder Quantity | 1 | ||
| Cylinder Diameter×Length ( mm ) | φ626 x 2000 | ||
| Cleaning Mechanism Type | Air and Screen Cleaning, Vibrating Sieve adjustable | ||
| Grain Storing | Automatic Unloading | 1600L 360° / 90° Big Grain Tank Capacity 1600L with 360° / 90°Unloading Auger | |
| Manual Operation | 450L Small Tank Capacity 450L by Manpower | ||
