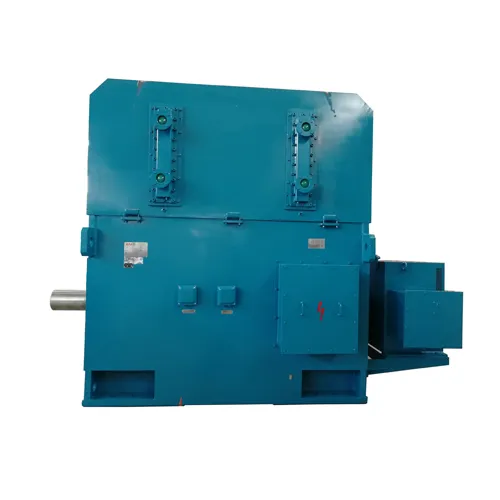

Yrks Large Size High Voltage Slip Ring Water-Cooled Motor

Product Description

The YRKS large-scale motor is a high-voltage wound-water-cooled three-phase asynchronous motor. The power class, installation dimensions and electrical performance of this type of motor are in compliance with relevant IEC standards. The basic installation method of the motor is the horizontal bottom angle (IMB3), the working system is the continuous working system (S1), and the wound rotor is made of Class F insulation material.
YRKS large slip ring motor bearings are divided into two types, rolling bearing and sliding bearing, depending on the motor power and speed. The rated frequency of the motor's power supply is 50Hz, the rated voltage is 6000V/10000V, and the basic type of protection is IP54. The motor slip ring housing can be protected to IP22 or IP23. Other voltage, frequency and degree of protection motors are also available upon request.
YRKS large water cooler motor addition set, bearing temperature measuring device, can also add heating device inside the motor, the shaft extension of the motor uses the tangential key, the motor carbon brush is not lifting structure, the front and rear bearing chambers of the motor have Oil filling and oil draining device.
YRKS large slip ring motor can be used to drive various kinds of machinery, such as compressors, pumps, crushers, cutting machine tools, transportation machinery and other mechanical equipment, in mining, machinery industry, petrochemical industry, power plants and other industrial and mining. Used as a prime mover in an enterprise. The motor used to drive the blower, coal mill, rolling mill and winch should indicate the purpose and technical requirements when ordering, and adopt special design to ensure reliable operation.
Center height range: H400 ~ 1000mm
Power range:200kW ~ 12000kW
Number of poles: 4/6/8/10/12
Rated voltage: 6000V/6600V/10000V/11000V
Rated frequency: 50HZ/60HZ
Protection level: IP54 or IP55
Insulation class: F
Work system: S1 (continuous)
Cooling method: IC81W
Installation form: IMB3
Motor connection: Y (three outlet terminals in the junction box, the junction box from the extension of the spindle is located on the right side of the base)
Altitude: no more than 1000m
This type of motor is suitable for use in environments where the ambient air temperature does not exceed 40 ° C and there is no serious dust, the minimum ambient air temperature is -15 ° C, and there is no corrosive and explosive gas in the air (which can also be made into a damp heat or high-altitude motor).
Comparison of different series High Voltage motors

No.	Squirrel-cage motor	Y JS	YKK	YKS	Y2, Y3
	Slip ring motor	YR JR JR2	YRKK	YRKS	YR2, YR3
1	Structure	Box-type construction, made up of steel plates welded with each other			Compact struction
2	Cooling method	IC01 or (IC11, IC21, IC31)	IC611 or IC616	IC81W	IC411
3		Natural ventilation, with top mounted protection cover	With top mounted air-air cooler	With top mounted air-water cooler
4	Protection type	IP23	IP44 or IP54	IP44 or IP54	IP54
5	Insulation	F
6	Mounting arrangement	IMB3
7	Voltage available	380 v, 2400 v, 3kv, 3.3kv; 4160 v, 6kv, 6.6kv; 10kv, 11kv
8	Frequency available	50Hz , 60Hz

YRKS large high-voltage wound rotor slip ring motor can increase the starting torque at a small starting current. The motor is suitable for applications where the capacity of the feeder line is insufficient to start the squirrel-cage rotor, the starting time is long, the starting is frequent, and the small-range speed regulation is required. This series of motors has the advantages of high efficiency, energy saving, low noise, low vibration, light weight, reliable performance, convenient installation and maintenance.
Main process flow of the motor
Motor stator: casing processing → punching press → iron core seating → coil making → weaving → dipping paint drying
Electronic rotor: blank shaft processing → iron core press installation → iron core cast aluminum → rotor string shaft → weave → dipping paint drying → dynamic balance
Motor assembly: stator rotor assembly → machine test → motor appearance coloring → packaging storage
The company insists on providing high-quality motor products and services to users, and has won high praise from many domestic and foreign customers. The company will receive many foreign merchants to visit our factory every year, and establish a good cooperative relationship through on-site inspection of our factory. Our company always welcomes customers to visit our factory.
If you are interested in our products motor,pls feel free to contact us! Thank you very much!
Shijiazhuang ZCL Electric Motor Technology Co., Ltd
ADDRESS: Industrial Zone, Zhangjiazhuang Town, Airport Road, gaocheng District, Shijiazhuang, Hebei, China
HEBEI PROVINCE, CHINA
Welcome to visit our factory!!!

---
