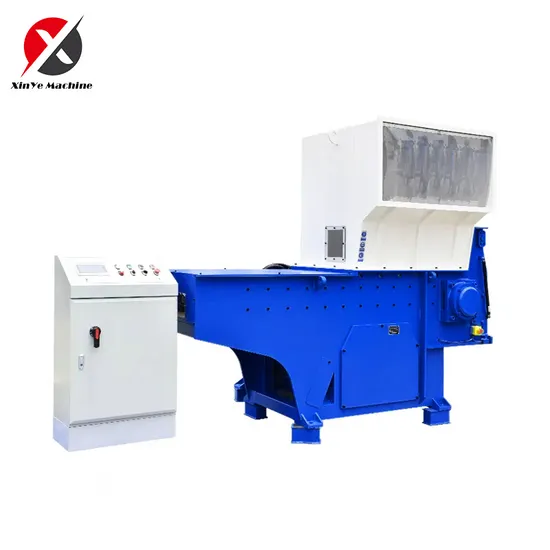

High-Capacity Single Shaft Shredder Machine for Metal/Rubber/Wood/Plastic/Tire

Product Description

Product Description
1. The single shaft shredder can meet the waste recycling requirements of various industries. It is suitable for recycling plastic,paper, wood, fiber, rubber, domestic waste, etc. there are many kinds of recyclable materials. Suitable for recycling all kinds of large solid materials, difficult to handle materials, plastic containers and plastic barrels, plastic pads.
2. The discharge size can be as small as 20 mm according to different requirements. And can provide all kinds of hopper according to customer's demand.
3. The equipment is low speed, low noise and more energy saving.Product Parameters

Model	XYS600	XYS800	XYS1000	XYS1200	XYS1400
Shredding Chamber	500*580mm	850*800mm	850*1000mm	850*1200mm	850*1400mm
Motor Power	18.5kw	37kw	45kw	55kw	75kw
Hydraulic Power	1.5kw	3.7kw	3.75kw	5.5kw	5.5kw
Rotor Blades QTY	26pcs	38pcs	52pcs	58pcs	82pcs
Counter Blades QTY	4pcs	4pcs	4pcs	6pcs	6pcs
Spindle Length	580mm	800mm	1000mm	1200mm	1400mm
Spindle Speed	80rpm	80rpm	80rpm	80rpm	80rpm
Blade Diameter	250mm	400mm	400mm	400mm	400mm
Net Weight	1.75T	4.15T	4.3T	5.3T	5.9T
Dimension	1760*1300*1850mm	2850*1760*2210mm	2850*1960*2220mm	2850*2560*2330mm	2850*2760*2330mm
Voltage	Can be customized

Detailed Photos
The blades of the Single Shaft Shredder are used to cut and shred materials, and the shaft supports and drives the blade rotation to ensure efficient cutting. Both together determine the working performance and stability of the equipment. The blade and shaft can be selected according to the material to be shredded.
FAQQ:Are you a factory or a trade company?
A:We are a manufacturer with our own factory in Ma'anshan, Anhui Province, China. Welcome to take a visit! Q:How to choose a shredder machine? A:Our technical consulting services can help, recommend the most suitable machine and program according to your needs, capacity, site and other actual situation. Q:How about the service? A:We provide after-sales service, including on-site installation, commissioning equipment, guidance and training of operators etc. Make regular return visits to solve your equipment problems and optimize your equipment maintenance methods. Q:How long is your delivery time?
A:Generally, it will be about 20-35 working days after deposit, which also will affected by the actual situation of the project.
Q:Which trade terms is available?A:FOB, CFR,CIF, EXW and other terms based on your needs.

---
