High Quality Finger Joint Shaper China Supplier

Product Description

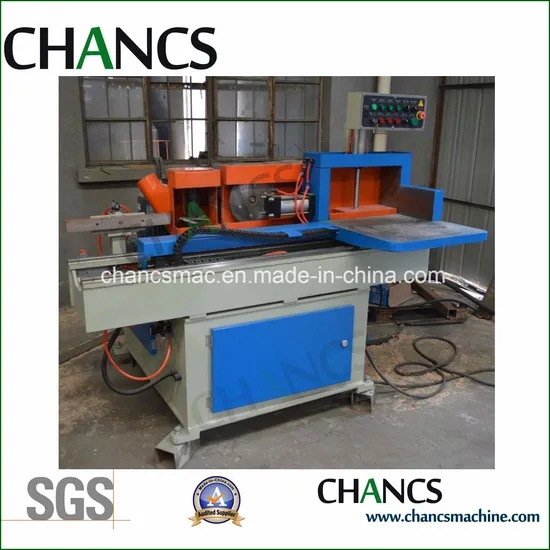

Finger Joint Shaper
1.Features:
1. Multi-function: trimming, scoring/ deburring, tenoning/teeth milling.
2. Dual shaft design: There are two high speed tenoning/teeth milling shafts to meet deeper milling requirements
3. High precision: Machine lathe equips imported bearing, rack and rails. To make sure machine running more stable and durable
4. Dual air pressure clamp design: In order to mill thick and long timber, we design double press with air pressure and detective sensor. Can assure the teeth milling precision, stability, and safety.
5. Finger shaper for glulam adopts hydraulic system and oil cylinder, very suitable for beam tenoning, can drive the working table powerfully, smoothly, stably and effectively
2.Parameter:

Model	MXB3525	MXB3530
Max. working width	500mm	500mm
Working thickness	20-250	20-300
Min. working length	250mm	250mm
Motor power of shaping	15kw*2	22Kw*2
Shaper spindle diameter	Φ70	Φ70
Shaper spindle speed	6500rpm	6500rpm
Motor power for cutting-off	5.5kw	5.5kw
Cutting-off saw speed	2800rpm	2800rpm
Saw blade diameter for cutting-off	Φ350	Φ350
Scoring saw power	0.75kw	0.75kw
Scoring saw diameter	Φ150	Φ150
Scoring saw speed	2800rpm	2800rpm
Hydraulic system power	2.2kw	2.2kw
Hydraulic system pressure	1-3Mpa	1-3Mpa
Air pressure system	0.6Mpa	0.6Mpa
Working table size	700 * 650mm	700 * 650mm
Total weight	1600kg	1800kg
Overall dimensions(L*W*H)	3292*1510*1595mm	3350*1610*1630mm

3.Detailed Images:
4 FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact with us
1. Q: What's the MOQ?
R: One set will be ok.
2. Q: Provide customized machine Yes or NO?
R: Yes. We have professional designers and engineers to supply customized machines.
3. Q: What is payment terms?
R: 30%T/T in advance, the balance paid before shipment after insepction.
4. Q: What is warranty time?
R: One year.

---
