100L, 200L, 300L Galvanized Steel Tank Pressure Solar Geyser Solar Water Heater System

Product Description

100L, 200L, 300L Galvanized Steel Tank Pressure Solar Geyser Solar Water Heater System
Product Introduction Open water tank for heat storage, closed coil for heat exchange and water intake. Sola Solar 20 second rapid heat exchange technology is adopted. The hot water is ready to use, and the water quality is fresh.The hot water pressure comes from the municipal cold water pressure, which matches with the cold water. It is simple to adjust the water temperature. The pressure is surging, the water volume is sufficient, and the use experience is good.
Product Parameters

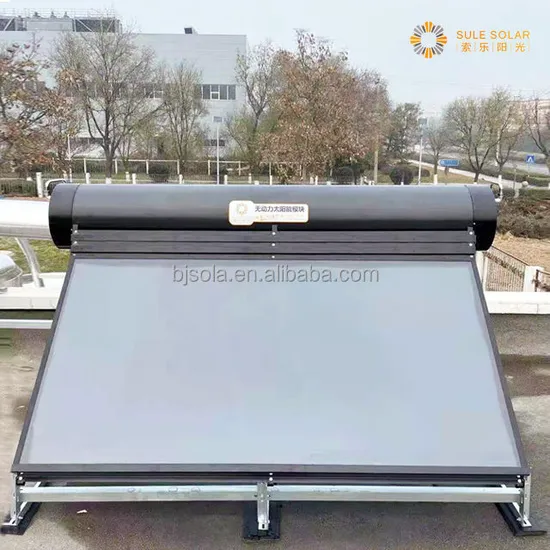

Product name	105L Flat type solar water heater
Model 1 (Non-freeze 0ºC )	PFSLP-105/2.0/0
Model 2 (Antifreeze -10ºC )	PFSLP-105/2.0/-10
Model 3 (Antifreeze -20ºC )	PFSLP-105/2.0/-20
Types of solar water heaters	Pressurized
Collector	Flat plate collector
Absorber surface	Whole board blue film
Core runner	copper pipe
Collector Specifications	1000*2000*80mm
Number of collectors	1 piece
Frame material	6063-T5 aluminum alloy
Inner tank material	0.5mm SUS304 stainless steel
Inner tank diameter	Φ250mm
Outer tank material	0.4mm Zinc color plate
Outer tank size	Φ350mm
Insulation material	50mm flame retardant polyurethane foam
Heat exchanger Material	304 stainless steel, 0.3mm thickness, Φ25-32mm diameter, 8 bar pressure.
Cold/hot water port connection	DN20/DN25
Product Weight	85kg
Requirements for roof loads	100 kg/m²
Aperture area	2.0 m²
Water tank capacity	105L
Weight full	190kg
Product Size	Length A (mm) 1470
	Width B(mm) 2236
collector inclination	5°~30°
Min. outdoor temperature	0ºC, -10ºC and -20 ºC
Electric heating (option)	1 pc, 220V50Hz/110v60Hz, 1500W

Our Advantages
Our Factory Certifications Why Choose Us
1. who are we?
We are based in Beijing, China, start from 2018,sell to Mid East(22.00%),Domestic Market(20.00%),Africa(16.00%),Eastern Asia(8.00%),Western Europe(7.00%),Eastern Europe(6.00%),Southeast Asia(6.00%),Oceania(5.00%),Northern Europe(5.00%),South Asia(3.00%),Southern Europe(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
Solar Water Heater,Solar Panel,Vacuum Tubes,PV System,Solar Light
4. why should you buy from us not from other suppliers?
20 years' experience in solar thermal and PV industry. Supply total solar solution for domestic,commercial and industrial application. Professional R&D,techincal,manufacture and quality control system. Professional export and service team.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese.

---
