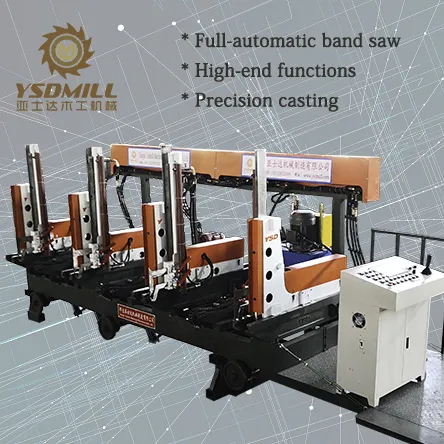

1.3m Automatic Sophisticated Technology Log Cutting Carriage

Product Description

Product Description YSDMILL provided hydraulic sawmill carriage. Woodworking vertical band saw hydraulic sawmill carriage is divided into many kinds of hydraulic log carriage. Equipped High quality CNC control system and touch screen operation let log cutting more easy. The automatic function can be custom-made according to customers' requirements thereby achieve save labor and spend less.The production efficiency of customized automatic log carriage is higher!

Model	YAH40F-600S	YAH40F-800C	YAH50F-1000C
Max cutting dia	600mm	800mm	1000mm
Max cutting length	4000mm	4000mm	4000mm
Control	Touch screen+Joy stick
Log clamping	Pneumatic	Hydraulic	Hydraulic
Log locking	Automatic(4units)	Automatic(4units)	Automatic(4units)
Log turning	Automatic(4units)	Automatic(4units)	Automatic(4units)
Cutting speed	Adjustable (Frequency changer)
Cutting measurement	Automatic	Automatic	Automatic
Carriage walking motor	2.2kw	2.2kw	2.2kw
Voltage	380V/50HZ/3phase
Weight	2500kg	3100kg	4000kg
Overall size(L*W*H)	4000*1500*1400mm	4000*1600*1500mm	4000*1700*1600mm
Custom made service	Provided

Hydraulic automatic log carriage is suitable for farm owner and wood process company.
Support custom-made, each function can choose use or not.
Easy to operate, effective save labor.
Frequency walking, the walking speed can be adjusted when cutting hardwood or softwood.
We provide hydraulic tank system for log locking, for hard or large size log the hydraulic system can lock log more tight when cutting.
High quality motor, stronger power, longer service life.
Hydraulic automatic lock log headblocks, with automatic hook in and hook out.
Touch screen with joy stick, japan and germany electric parts for reliable operation.
Stronger shaft with forged wheel for stable and accuracy timber cutting.
Cast-iron headblocks with Hydraulic / pneumatic cylinder for tight log locking.
The shaft and qty of wheel can custom as your requirement.
Wheels are carried by a double set of cup and cone roller bearings and are adjustable to set proper clearance.
Hydraulic automatic lock log headblocks,automatic hook in and hook out. Log turning arm adjust suitable cuting angle
High quality motor, stronger power, longer service life Hydraulic tank system for log locking, for hard or large size log
Cast-iron headblocks with hydraulic log locking.Stronger log locking hook Touch screen with joy stick,reliable operation

The shaft and qty of wheel can custom as your requirement Wheels are carried by a double set of cup and cone roller bearings
Packing & Delivery
Company Profile
FAQ

Q: Are you a trading company or a manufacturer?
A: We are manufacturer.

Q: What types of woodworking machinery does YSDMILL offer?
A: YSDMILL offers a comprehensive range of woodworking machinery, including woodworking band-sawing machines, woodworking log carriages, and other auxiliary equipment.

Q: Does YSDMILL offer custom-made solutions for wood processing?
A: Yes, absolutely! We understand that every woodworking project is unique, and we take pride in providing personalized wood processing line solutions tailored to meet your specific requirements.

Q: How to know which model is suit for our request?
A: Send us the length and diameter specification of your wood, then we will recommend you the suitable machine.

Q: How about your delivery time?
A: For our standard vertical/horizontal band saw, we have it in stock. For the customized sawmill equipment we need 10-30days to production.

Q: How does YSDMILL handle after-sales service and support?
A: We are committed to customer satisfaction and offer comprehensive after-sales support. Our team provides installation assistance, maintenance services, and readily available spare parts to ensure the smooth operation of our machinery.

---
