Landworld 6.6kw Obc on-Board Charger Waterproof on-Board Power Supply

Product Description

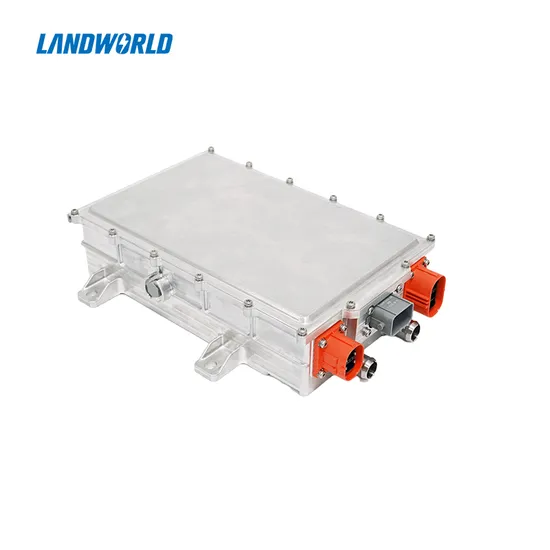

Landworld 6.6kw Obc on-Board Charger Waterproof on-Board Power Supply
LWC6K6-220S380-W
Product Features: Product dimension: 364x224x100mm Product weight: ≤8.5KG Cooling method: liquid cooled, flow≥6L/min IP rating: IP67 Support on-line upgrade and fault diagnosis High power density, modular design, easy for modular integration Full digital SW design, redundant protection function design Multi 6.6KW OBC can be paralleled; (2*6.6Kw , 3*6.6KW, 4*6.6KW OBC)
Main Technical Parameters

Items	Technical Spec.	Remarks
Operation temperature	-40-85ºC	Working for long time
Nominal output power	6.6kW
Input voltage	85--265Vac
Nominal Vout	200-450VDC
Nominal output Current	20A
VCC power supply	9-32Vdc	VCC
Eff.	≥94%	@Nominal voltage
Voltage accuracy	±1%
Current accuracy	±3%
Low voltage Wake up	12/24Vdc&200mAmax (WAKE_UP signal)	Wake up BMS/VCU
Wake up method	CAN/AC/CC/CP	Support booking charging
CAN communication	CAN-BUS
Static current	≤2mA	Current consumption at sleep mode or standby status
EMC standard	GB/T18387-2008, EN 55022	EMC standard
Protection features	Input OVP/UVP, output OVP/UVP,OTP, OCP, output short-circuit protection, CAN communication breakdown protection

---
