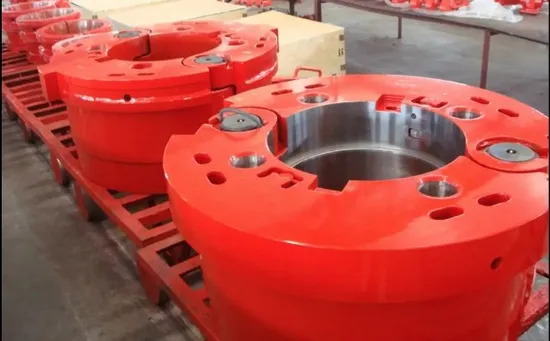

Master Bushing and Insert with Accessories

Product Description

Description:
Master bushings can be divided into three kinds of structure, hinged, solid, or split. There are two kinds of diving ways, pin, and Square. It is adapted to the rotary table by size from 17 1/2 to 37 1/2(49 1/2 in) respectively. When the insert bowl is assembled,(some haven't inserted Bowl), it can be connected with rotary slips and roller kelly bushing that are manufactured in accordance with API Spec 7k.
Specification: Model Rotary table size(in) Insert bowl Tubulars OD(in)

MSS(Solid)	17 1/2-23	Insert bowl 1011	2 3/8-7 5/8
		Extended insert bowl 1024	2 3/8-8 5/8
	27-1/2	Insert bowl 1022	2 3/8-7 5/8
		Extended insert bowl 1025	2 3/8-8 5/8
		Insert bowl 1026	9 5/8-10 3/4
		Insert bowl 2002	11 3/4-13 3/8
MSS(Split)	17 1/2-27 1/2	-	2 3/8-7 5/8
MSPC(Solid)	20 1/2-22 1/2	Insert bowl 1809	2 3/8-8 5/8
		Insert bowl 1902	9 5/8-10 3/4
		Master bushing1805-1	11 3/4-13 3/8
		Master bushing19333	11 3/4-13 3/8
	23-27 1/2	No.3 Insert bowl 1810	2 3/8-8 5/8
		No.2 Insert bowl 1904	9 5/8-10 3/4
		No.1 Insert bowl 1903	11 3/4-13 3/8
MDSP(Split)	17 1/2-20 1/2	-	2 3/8-8 5/8
MSP(Split)	27 1/2	-	2 3/8-8 5/8
MPCH	37 1/2	No.3 Insert bowl 6608	2 3/8-8 5/8
		No.2 Insert bowl 6609	9 5/8-10 3/4
		No.1 Insert bowl 6610	11 3/4-13 3/8
	49 1/2	MPCH37 1/2	2 3/8-13 3/8

Drawing:
Company Profile
Shandong Xilong Machinery Equipment Co., Ltd. Is a professional supplier of various oilfield equipment in Dongying, Shandong, including API certified oil drilling and service equipment, oil production equipment, oil tubing, wellhead and downhole tools and accessories. 1.The company has developed various types and complete specifications of oil drilling and production wellhead mechanized tools. 2. Company export countries: Sales cover the country's major oil fields and Europe, the United States, the Middle East, Central Asia, Southeast Asia and other regions. 3. To bring customers what role: shandong Xilong Mechanical machinery equipment co., LTD. In domestic oil fields and the overseas market has a perfect service network, has a complete pre-sale, sale, after-sales service system, and provide special conditions according to the customer request work of customized products, domestic products cover the fields, are exported to North America, southeast Asia, the Middle East, central Asia and north Africa and other regions. Packing & Delivery
Hot product
Certificate
FAQ
1. How can I place order? A: You can contact us by email about your order details, or place order on line. 2.How do I pay? A: After you confirm our PI, we will ask you to pay. T/T (HSBC) and PayPal, Western Union is our most commonly used method.
3. Do you accept small orders? Yes, don't be too small business. If you're a small retailer or starting a business, we'd definitely love to grow with you. We look forward to building a long-term relationship with you.
4. Do you have any product inspection procedures? A: 100% self-test before packaging.
5. What about the price? Can you get cheaper? A: We always put the interests of our customers at the forefront. Prices are negotiable under different conditions and we assure you of the most competitive price.

---
