Nanyang Mj3110 (B) Woodworking Vertical Band Saw China Wholesalers 1000mm Max Sawing Diameter 42 - Inch Portable Wood Bandsaw Machine

Product Description

NANYANG MJ3110(B) Woodworking Vertical Band Saw China Wholesalers 1000mm Max Sawing Diameter 42 - inch Portable Wood Bandsaw Machine
Product Description

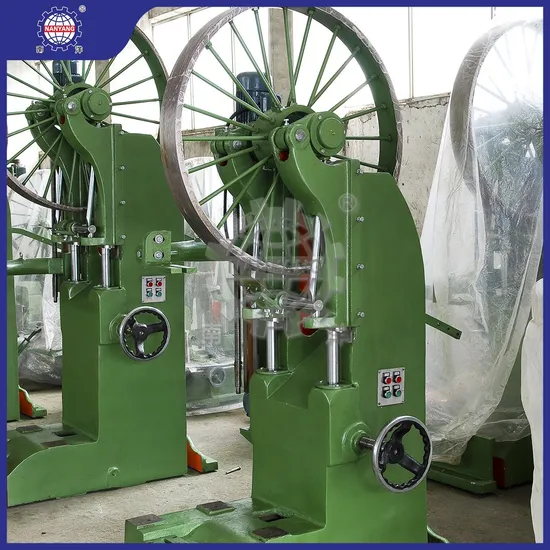

Vertical Wood Saw Machine
This machine tool is mainly suitable for large or medium-diameter logs (below Φ1000 mm). It can cut logs into plates or squares of different specifications. It is the best choice for wood manufacturing enterprises to cut large log diameters. Saw wheel, saw card electric lift
Product Parameters
Technical Parameters:

Item	MJ3110	MJ3110B
Saw wheel diameter	1060 mm	1060 mm
Saw wheel width	120mm	120mm
Saw wheel rotate speed	720r/min	720r/min
Max. sawing diameter	1000mm	1000mm
Main motor power	22kW	22kW or 30kW
Total motor power	22kW	24.25kW or 32.25kW
Size of saw blade(L×W×H)	7700x125x1.05mm	7700×125×1.05mm
Dimensions(L×W×H)	1975×1235×3280mm	1975×1235×3280mm
Weight	2000kgs	2200kgs

Wood Band Saw Machinery
A saw machine that uses an endless band saw blade as a saw tool is wound around two saw wheels and makes continuous linear motion in one direction to cut wood.
It is mainly composed of a bed, saw wheel, upper saw wheel lifting, and tilting device, band saw blade tensioning device, saw blade guide device, workbench, guide plate, etc. The bed is made of cast iron or welded steel plate.
Compact structure:
The structure design is simple and compact, and it occupies a small area, making it suitable for wood processing operations in limited spaces.
Wide range of applications:
It is widely used in furniture manufacturing, construction, woodworking processing plants, and other fields to cut and saw various types of wood.
Energy efficient:
Using a band saw as the saw blade has high cutting efficiency. At the same time, band saws consume less energy than traditional circular saws, and the energy-saving effect is obvious.
High security:
The equipment adopts safety protection measures to reduce safety hazards during operation. At the same time, it also has functions such as overload protection and automatic shutdown after power failure to ensure the safety of operators.
Cutting accuracy:
The cutting accuracy is high, which can ensure the flatness and accuracy of wood cutting and improve the utilization rate of wood.
Easy to operate:
Automated control system, simple and convenient operation. The operator only needs to simply set the parameters, and the machine can complete the cutting operation as required.
Cast Iron Saw Wheel
Dynamic Balancing Plus
Work Operation Is More Stable
Company Profile
FAQ
Q1. How long does it take to get a reply after we send the inquiry?
A: We will reply to you within 24 hours after receiving the inquiry.
Q2. Are you a direct manufacturer or trading company?
A: Our factory is located in Hangzhou City, Zhejiang Province. You are welcome to visit us.
Q3. What products can I buy from your factory?
A: Our main products are: wood band saws and carriages; wood drying equipment, saw blade sharpening machines; saw blade rolling machines, saw blade welding machines, etc.
Q4. What are the main application areas of your products?
A: Application areas of woodworking band saw machines and Large-scale Vertical Band Saw Carriage: furniture, flooring, wooden boards, building materials, handicrafts, lumber, wood packaging, and other wood products companies.
Application scope of wood drying kiln: furniture, flooring, wooden boards, building materials, handicrafts, wood, wood packaging, and other wood products enterprises.
Q5. Do you accept OEM and ODM custom orders?
A: We accept drawings to customize your products, and we have a professional R&D team.
Q6. How does your company ensure product quality?
A: We will have corresponding tests after each process is completed. For the final product, we will do a 100% comprehensive inspection according to customer requirements and industry standards.
Q7. What payment method?
A: When quoting, we will confirm the transaction method to you, FOB, CIF, CNF, or other methods. Generally, customers pay 30% in advance, and the balance is paid before factory shipment. We mostly pay by T/T, of course, L/C is acceptable.

---
