Linear Machines for The Production of Soles, Sandals, Galoshes, Boots and Technical Items in One and Two Colors Injected EVA

Product Description

>> Description
Products: Suitable for moulding any EVA product, from soles, to slippers, sandals, boots, up to technical/industrial items.
>> Features
Electric Control Unit
Touch-screen human-machine interface makes the parameter setting fast and easy; electric cabinet is stand-alone to avoid malfunction caused by machine vibration.
Injection Unit
1. The injection system is optimized by a unique screw design with precise temperature control.
2. The repeatability is assured by the precise volumetric control and the proportional valves of pressure and flow.
3. Injection volume is sufficient to meet the production with multi-cavity molds.
4. Equipped with multi-zone thermal control on each injector. Each zone is set individually in accord with different characteristics of compounds and production conditions.
5. Precise transmission system with the sliding structure driven precisely by servomotor control system; the movement of the injection unit is smooth, and the positioning is fast and accurate.
Mold-Holder Unit
1. To meet various productions, the mold-holder is designed to be suitable for different types of molds such as one mold one pair, one mold two pairs, one mold three pairs in small sizes.
2. The high clamping force of mold-holder is realized with hydraulic cylinders, which can automatically compensate the variation of mold thickness caused by temperature change.
3. The clamping system is equipped with two independent sets of cylinders at each station. The big hydraulic cylinders averagely distribute the high clamping force on the whole surface of the mold to avoid flash.
4. The mold open stroke is long to make collecting parts and cleaning mold easily.
5. There are independent temperature control units for up and down mold plates in each mold-holder. The temperature of each mold is controlled with high precision to produce parts with stable quality.
>> Machine Pictures

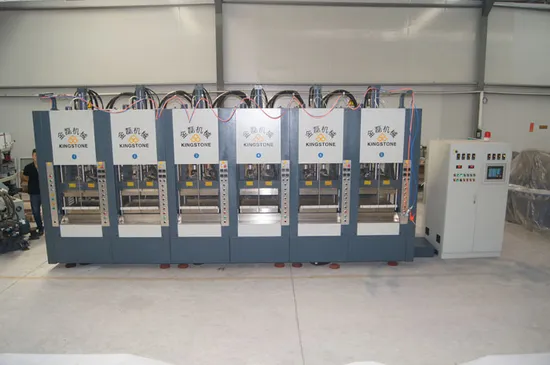

For EVA slipper making machine, standard is 6 stations (showed like below).
>> Specifications

Machine model		JL-198-6S
Mould-clamping Unit
Work station		2
Clamping force	TON	190
Mould-holder dimensions	MM	330*600*2
Mould height	MM	100-250
Opening stroke	MM	350
Injection Unit
Injector	SET	2
Screw diameter	MM	60/65
Max.injection volume	cm3	950
Injection pressure	kg/cm2	1000
Screw rotation speed	R.P.M	0-165
Electricity Consumption
Heating power of injector	KW	13
Hydraulic unit motor	KW	33.5
Heating board of mold	KW	75
Total electric consumption	KW	121.5
Temperature control	Section	4
Dimension and Weight
Machine dimension(L*W*H)	M	7.8*4.5*2.8
Machine weight	TONS	19
*Note:Above data only for reference.

>> Finished products
Some samples produced by this machine for your reference.
>> Packing & Shipping
The machine need 40HQ container to uploading.
>> Related Machine
2/4/6/8/10 Stations for your choose.

---
