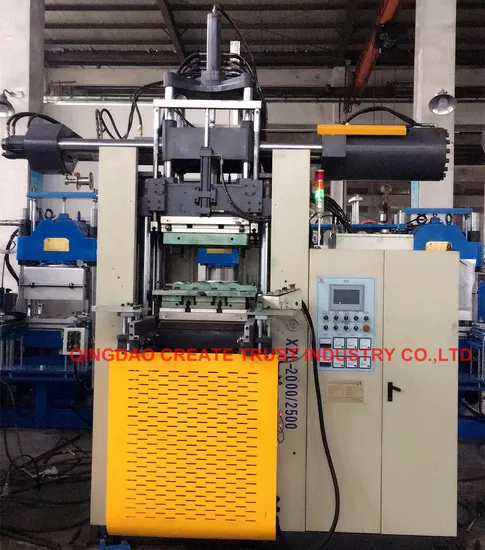

New Advanced Technical First in-First out Type Rubber Injection Moulding Press (CE/ISO9001)

Product Description

Model No.: CXF200T
Name : Name : Injection moulding press, Rubber injection machine, Rubber injection press, Rubber injection moulding machine, rubber injection moulding press.
Usage :The machine applies to vulcanizing various kinds of model rubber and plastic products as well as non-model products.
Mechanical system:

1. Using the finite element analysis, a design precision casting forming, high rigidity, long service life.

2. The deep hole processing, the hot plate drill by thickening and nitriding process, the use of high precision,, even the temperature distribution.

3. Numerical control equipment, to ensure accurancy, precision design with key parts for processing.

4. High-end adjustment plane technology, highest can make fluctuation hot plate parallel degree of 0.02mm

Oil line system:

1. The oil line is integrated design concept, reduce oil route, modular inpact and noise.

2. The safe and energy-saving design, improve efficiency, reduce energy consumption.

3. Special design of high speed loop, and makes speed fast acting as smooth transition, and can make any speed adjustment

4. Indenpendent exhaust circuit design, make the exhaust of 100%.

5. Using high quality hydraulic components, stable and reliable.

WH series rubber injection molding machine(rubber machinery) is suitable for injection and molding all kinds of rubber,bakelite, plastic, etc. It is mostly suitable for high quality requirements, complex shape , thick wall and these products with embedded parts.
Main parameters below :

Type	200T	300T	400T
Clamping force(Ton)	200	300	400
Stroke(mm)	550	600	600
Heating plate size(mm)	510*500	600*650	650*700
Diameter of cylinder(mm)	350	450	500
Injection volume(cc)	2000	3000	4000
Horsepower(HP)	15*1	20*1	25*1
Type of mold opening	2RT/3RT/4RT up down in/out-2RT/3RT/4RT
Single shaft thermal electricity(kw)	12.6	16	25
Total power(kw)	28	36	45
Gross weight(kg)	6000	9000	9500
Machine size(mm)	3200*2400*2500	3700*2560*2710	4000*2800*2850

Service of us:
The production of all products are follow ISO9001:2008 organization system and Europe conformity.
From raw material processing to assembe and finally test running. even the packing, and delivery.
Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !

---
