High Performance Automatic Factory Price Ab Double Layers Co-Extrusion Film Blowing Machine HDPE/LDPE/PE Blown Film Machinery Plastic

Product Description

Product Description

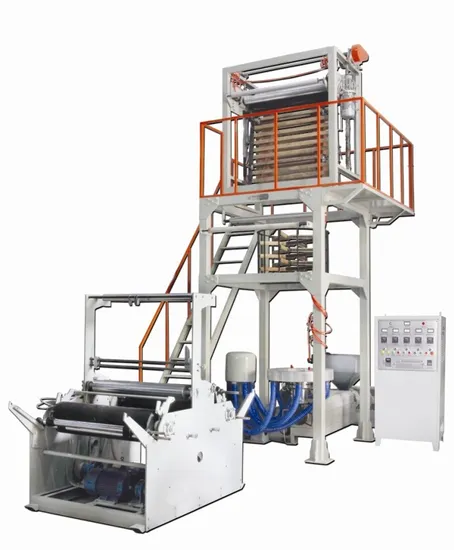

HDPE / LDPE / PLA Material three layers co-extrusion film blowing machine
This 2 layers film blowing line is composed of three extruders and auxiliary parts. It can be used for blowing with HDPE and LDPE, LLDPE, metallocene polyethylene, etc. Through the extrusion die head to form three layer complex composite film. With greatly improving the physical properties of the film and an increase of strength, so that the film featured in good obstruct properties and air tightness. This film barrier properties, thermal insulation, waterproof, anti-frost, oxygen barrier, oil resistance and other excellent, can be widely used in heavy packing, such as fruit, meat dish, pickles, fresh milk, liquid beverage etc..

Product Parameters

Model	XY-2L800	XY-2L1000	XY-2L1200	XY-2L1500
Raw material	HDPE / LDPE / LLDPE / EVA / CaCo3 / PBAT / PLA
Film width	200-800mm	300-1000mm	400-1200mm	500-1500mm
Roller width	900mm	1100mm	1300mm	1650mm
Film thichness	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm
Max. output	50-80kg/h	60-100kg/h	70-120kg/h	80-150kg/h
Screw diameter	A: 50mm	A: 55mm	A: 60mm	A: 65mm
	B: 50mm	B: 55mm	B: 60mm	B: 65mm
Screw L/D	30:1	30:1	30:1	30:1
Driving motor	11+11 kw	15+15 kw	22+22 kw	22+22 kw
Gearbox	133+133	146+146	173+173	173+173
Die size	HDΦ80/LDΦ120	HDΦ120/LDΦ200	HDΦ150/LDΦ220	HDΦ150/LDΦ250
Machine size	4.5x3x5.5m	5x3.4x6m	5.8x3.8x6.5m	7.0x5.0x7.5m

Optional Equipment:
1) Auto Loader
2) Corona
3) Special Specification Die Head
4) Fast Changer Filter
5) Automatic Rewinder
6) g/m weight controller
Certifications
Packaging & Shipping
Company Profile
FAQ
1. Are you factory or trading company ?We are factory specialized in plastic machine for many years, also we have the right to export goods by ourselves.2. Where is your factory? How can i visit your company?Our factory is located in Ruian city,zhejiang province, China. Its about 40 minutes from shanghai by plane(4 hours by train). We will pick you up on airport or station.
Welcome to visit our factory3. How long is your delivery time?Normally our delivery time is 15-30 days. If you need it ugently, we can make it about7 days4. What are your terms of payment?We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight. 5. What package do you use for the product?Be Coated with anti-corrosion oil, and covered with plastic film, wooden box package need extra cost. 6. Does your factory provide installation service?Our engineer can go to customer factory to installation. Customer should prepare materials used to testing the machine in advance and should be responsible for the cost of supplier's technician, including round air tickets, visa cost, accommodation and salary 100USD/Day per person since the day start out until the day arriving at factory.7. What's your warranty policy?12 month guarantee and whole life maintance.
8. What is your company after sale service?We would express the free replacement parts as soon as possible.

---
