Basic Info.
Model NO.

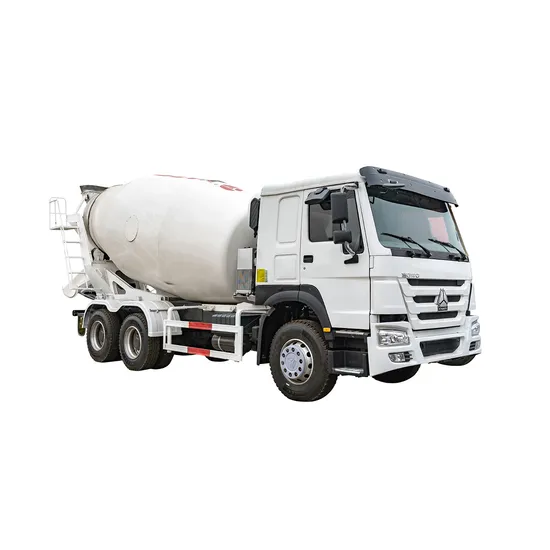

Concrete Mixer Truck
Machining Process
Hydraulic
Vibrating Amplitude
0.9mm
Certification
ISO9001: 2000
Gearbox
10 Forwards & 2 Reverse
Tire
12r22.5 Tubeless Tires with One Spare
Specification
8800x2550x3800mm
Product Description
Product Description
brand
| Sinotruk Howo
|
Cabin
| Driving type 6x4, LHD
|
HW76 single bed
|
Vehicle Main Dimensions
| Overall dimensions (L x W x H)mm
| 10245x2496x3450
|
Wheel base (mm)
| 3600+1350
|
Wheel track (front/rear) (mm)
| 2022/2022
|
Approach/Departure angle(°)
| 16/24
|
Max. driving speed(km/h)
| 90
|
Engine
| Type
| 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
|
Model
| WD615.47
|
Horse Power(HP)
| 371
|
Emission standard
| Euro II
|
Gearbox
| 10 forwards & 2 reverse
|
Steering
| Left hand drive
|
Tire
| 12R22.5 tubeless tires with one spare
|
Mixer Drum
| Mixer Capacity
| 16 cubic meters
|
Drum thickness
| 6mm
|
Blade thickness
| 4mm
|
Tanker Material:
| 16MnQ345 Carbon Steel
|
Filling Rate(%)
| 59
|
Input Speed (m3/min)
| ≥2.8
|
Output Speed (m3/min)
| ≥1.2
|
Surplus Ratio
| ≤0.5
|
| Tanker Rotate Speed(rpm)
| 0~17
|
| Hydraulic Pump
| Italy Brand: PMP
|
Drum Drive System
| Hydraulic Motor
| Italy Brand: PMP
|
| Speed Reducer
| Germany Brand
|
| Radiator
| KAITONG
|
| Water Tank Volume(L)
| 400
|
FAQ
Q1: Are you trader or manufacturer?
A1: We are manufacturer, we have our exhibition room, truck repair workshop, and professional workers sales
Q2: How do you do after sale service?
A2: We will do video instruction by phone or by computer, for any use problem you can tell our salesman, we will do instruction for you
Q3: what is the shipping process?
A3: for the truck field, we use most is bulk shipping service by sea
Q4: Can I visit your factory?
A4: You are welcomed to visit our workshop, we located in Shandong, face to face talking is prefered
Q5: What kind of payment term do you provide?
A5: We can do TT, LC, with 50% in advance and 50% before shipment
>>
