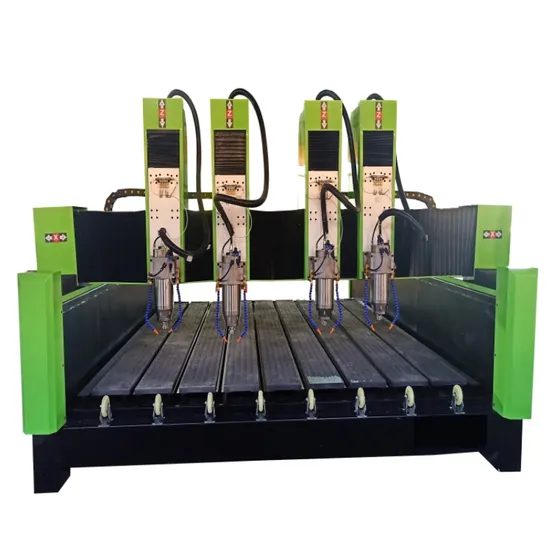

CNC Cutting Milling Machine 5 Axis Stone Shape CNC Router 3D Stone CNC Router for Marble Granite Carving

Product Description

Product Description

* Y-axis adopts dual motor drive selection pairing to ensure smooth movement
The bed is welded with thick-walled steel pipes to ensure small deformation of the body, good rigidity and high strength.
* Adopt high-precision rack and pinion drive with high precision, fast speed, large force, imported square linear guide rail with high precision, heavy load bearing and long service life.
* It can save 10 breakpoints, and has the function of continuous engraving at the breakpoint.

Product Parameters

Mode	GD-1325/Customizable
X,Y,Z Working Area	1300*2500*200mm
Table Structure	Welded Structure
X Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
Z Structure	Hiwin Rail Linear Bearings and Ball Screw
Spindle	6KW water cooling.24000rpm/min
Driver motor	China Stepper motor and leadshine driver
Inverter	Fuling or Sunfar
Control system	DSP System (options: Ncstudio/Mach3 PC Software)
Max. Engraving Speed	3000mm/min
Working Voltage	380V/3PH/50HZ
Command Code	G code
Software Compatibly	Artcam/Artengraver/Type3/V9/JD paint
X,Y Resolution	<0.03mm

Detailed Photos
Special spindle for stone

Used a high-power 5.5kw main shaft for stone, with a maximum speed of 24.000 rpm. The four bearing rotors work at the same time,with large torque, strong power, dustproof and waterproof, and long service life. Hard and soft stone and other materials can be handled in one machine.

Helical gear racks

The CNC router uses precision helical gear racks on the X and Y axis. The rack is installed upside down to help prevent dust and debris from accumulating on the drive system,thereby ensuring smooth movement and long-term reliability. The precision gearbox is directly connected to the stepper motor.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
High quality drag chainHigh quality line towing, clean, simple and efficient.
Motor

With high -performance 1.5kw servo motor, the Machine can work in high precision.The servo motor runs smoothly. Strong power andfast mechanical operation.
Application
Suitable for stone, tombstone processing, advertising decoration, handicraft industry. Applicable materials, marble, granite, bluestone, jade, ceramics, crystal glass, plastic, chemical composite board, plexiglass, PVC board, metal, plastic and other materials for line engraving, 2D engraving, 3D pointed bottom engraving, 3D relief cutting, Chamfer keyhole machining, then

Packaging & Shipping
Company Profile
Samet Intelligent Manufacturing Co., Ltd.
SAMET has been deeply engaged in the manufacturing of laser intelligent equipment for 11 years. It is headquartered inJINAN, China .It is a national high-tech enterprise focusing on laser application solutions such as laser cutting, tube cutting, precision cutting, laser welding, laser marking, CNC bending, and automation equipment.
SAMET has established branches and service outlets in 30% of the countries and regions around the world to promote the process of global intelligence and has more than 200 patents and certificates. SAMET adheres to the quality route and forms 139 production and inspection procedures higher than the industry standard. With the mission of "Laser technology makes a better world", its high-quality products and after-sales service have won high praise from customers.


After Sales Service
Pre-Sales Service
1.We have many exhibitions very year, hundreds of clients was coming to our booth for further communication. 2.24-hours online Inquiry and consulting support.
3.Support sample testing .
4.We welcome you to visit our factory.
After-Sales Service 1.Training how to install the machine, training how to use the machine online. 2.Engineers available to clients' factory for training if necessary.
3.Guarantee for one year
4.24-hour technical support by email or calling
5.User-friendly English manual for machine using and maintaining 6.Free technician training for customers FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing
list/Commercial Invoice/Sales contract for customs clearance.
Q: Payment terms?
A:****** trade assurance/TT/West Union/Payple/LC/Cash and so on.
Q: I don't know how to use after i receive or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your
problems finished.We can also provide Door service if you need.
Q: I don't know which one is suitable for me ?
A :just tell us below information
1) Max work size:choose most suitable model.
2) Materials and Cutting thickness:Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.
Q: If we need SAMET technician to train us after order,how to charge?
A:1) If you come to our factory to get training,it is free for learning.And the seller also accompany
you in factory 1-3 working days.(Every one learning ability is different,also according to details)
2) If you need our technician go to your local factory to teach you ,you need to bear the technician's
business travelling ticket / room and board/ 100 USD per day.

Q:Why the machine price not include fiber source and tube parts ?
A:Different power different tube diameter price different , that's why we list the price not include fiber source and tube parts .

---
