Worktable 320X2000 Head Move Type Surface Grinding Machine M7132

Product Description

Surface Grinder M7132
Good quality and reasonable price
CE and ISO9001 certificate
DATASHEET

SPECIFICATION			M7 132
S ize of workatable ( L × W × H )		mm	1000× 320	1600 × 320	2000 × 320
Max . Longitudinal movement of worktable		mm	1100	1700	2100
Max. Distance from the spindle centerline to the worktable surface		mm	570	570	570
Max. Cross movement of grinding head		mm	370	350	350
Max. Vertical movement of grinding head		mm	400	400	400
V ertical movment of the grinding head by hand wheel	Per graduation	mm	0.01	0.0 1	0.0 1
	P er revelotion	mm	1.00	1.0	1.0
Rapid lifting motor	P ower	KW	0.37	0.37	0.37
	S peed	r/min	14 4 0	1440	1440
Abrasive wheel dim ( D × W × d )		mm	35 0× 1 2 7 × 4 0	35 0× 1 2 7 × 4 0	35 0× 1 2 7 × 4 0
Speed of grindwheel		r/min	1440	1440	1440
T otal power of motor		Kw	9	12	12
Power of spindle motor		KW	5.5	5.5	5.5
Power of o il pump motor		KW	3	5.5	5.5
Processing accuracy		mm/mm	1000:0.015	1000:0.015	1000:0.015
Surface roughness			Ra:0.63	Ra:0.63	Ra:0.63
N/G weight		kg	3980/4200	4300/4900	4800/5300
Packing size(LXWXH)		mm	2800X1750X2350	4500X2000X2350	5500X2000X2350

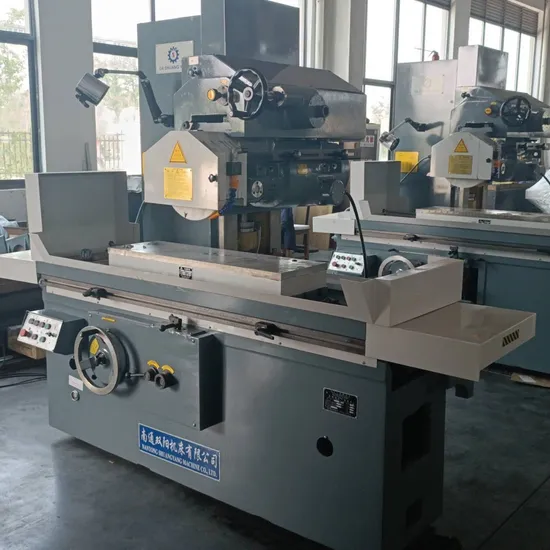

DETAIL PHOTOS
WORKSHOP
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as surface grinding machine, CNC surface grinder ,CNC Milling Machine ,Vertical Machining Center ,Drilling Machine ,gantry milling machine , CNC gantry milling machine, CNC gantry grinding machine so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in NO 370 Changjiang North Road, NANTONG ,JIANGSU ,CHINA. If you have interest to visit our factory, pls inform
me ahead, i will arrange and company you your visit period.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
