High Efficient Powder & Liquid Blender/ Spiral Double Ribbon Mixer (WLDH model)

Product Description

The ribbon mixer is widely applied for the mixing of viscous or adhesive powder materials, or the mixing of powder which needs to add liquid, and paste material. Meanwhile, because it is difficult to clean viscous material, the machine is suitable for the mixing case, where the output is large and there is no need of displacing material variety frequently.

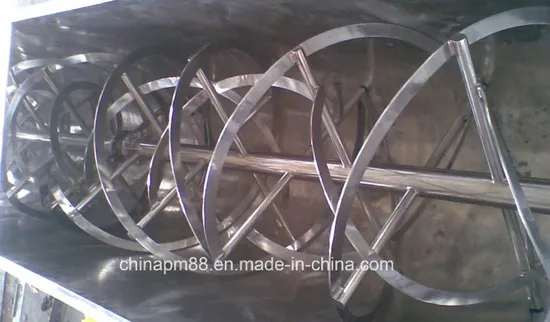

This high efficient ribbon blender is composed of container, screw stirring paddles and transitional parts; The screw paddle are generally made into 1 layer or 3 layers, the outer screw converge is the material to the centre from two sides, and the inner layer of screw conveys the material to the two sides from the centre, so as to from convection mixing.
Technical Parameters:

SPECS m3	0.2	0.5	1	1.5	2	3	4	6	8	10
Working capacity: kg	80-100	200-300	400-600	600-900	800-1200	1200-1800	1600-2400	2400-3600	3200-4800	4000-6000
POWERKW	3	4-11	7.5-15	11-18.5	15-22	18.5-30	22-37	37-55	37-55	45-75
G.W.: kg	450	900	1800	2500	3200	4100	5100	6300	7500	8900

---
