Product Description
Product Description

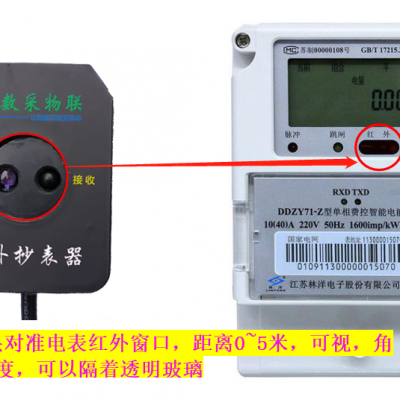

485 infrared communication transceiver, meter reading photoelectric head
2 Order Specifications and Selection
Model
| Transmission Mode
| Characteristics of the Description
|
SC-LP-IRNB
| wireless
| NB-IOT / LoRa communication, long life lithium battery power supply, suitable for low acquisition frequency, difficult external power supply occasions.
|
SC-GP-IR4G
| wireless
| 4G communication, 220V AC / 12V DC power supply, suitable for high acquisition frequency or convenient external power supply occasions. Because the device is on line for a long time by default, it can support remote configuration parameter debugging, and the site only needs to install and connect power.
|
SC-GP-IR485
| wired
| Separate infrared probe, a 458-rpm infrared transceiver, transparent transmission. Users should consider the electricity meter agreement connection.
|
SC-GP-IRLAN
| Ethernet / WiFi / LoRa
| Infrared acquisition, network port / WiFi interface / LoRa, support for Modbus RTU protocol (virtual serial port) or Json format for data reporting.
|
SC-GP-IR485-modbus
(Custom Edition)
| wired
| Infrared acquisition, RS485 interface, universal Modbus protocol, users do not need to consider the electricity meter protocol docking.
|
3 Service ConceptOur company solemnly promise you:
You buy more than just products, but also meticulous and thoughtful technical support!!!( =^_^= )
If you purchase our wireless products, we will provide free remote guidance, remote configuration and debugging service, and send the data to the cloud platform specified by the customer.
Free IOT solution consulting services!
4 Product FeaturesLine Sequence Definition
Red: + 12V Black: GND Yellow: 485A White: 485B
Note: Please contact us to customize the 24V power supply version
Length of Line: 1 meter
Acquisition characteristics
l Infrared carrier frequency: 38 kHz
l Communication wave rate: 1200~115200 bps, adaptive according to the communication parameters of the electricity meter
l Communication distance: 10 meters
l Communication Angle: 15 degrees
l Infrared communication protocol: Transparent transmission
Electrical Characteristic
l Power supply mode: 5~12V DC power supply (with reverse connection protection function of power cable)
l Working power consumption: less than 0.5w
l Emission power consumption: 20 ~ 50 mA @ 12 V
Communication Characteristics
l Transmission mode: RS485 transparent transmission
l Paud rate: 1200~115200bps, adaptive
Structural Characteristic
l Material: ABS plastic (enclosure)
l Protection level: IP 64
l Body size: 48mm 37mm 15mm
l Installation method: paste / magnetic suction installation
Working Environment
l Temperature-30°C~75°C, humidity of 0~95%
Storage Environment
l Temperature-40°C~90°C, humidity of 0~95%
