China Heavy Duty Horizontal Metal Big Spindle Bore Lathe Machine

US$35,788.00 1 set (MOQ)

Basic Info.

Model NO.

CW62103

Type

Horizontal Lathe

Processing Accessory

Centre CNC Lathe

Guide Rail

Inclined Guide Rail

Tool Holder

4-Positioin Tool Post

Power Source

Electric

Controlling Mode

Artificial

Automatic Grade

Semiautomatic

Setting Mode

Floor-type

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Name

Heavy Duty Lathe Machine

Swing Over Bed

1000mm

Bed Width

755mm

Spinle Bore

130mm

Main Motor

22kw

Spindle Speed

3.15-315rpm

Max Length

1.5m to 12m

Max.Travel of Cross Slide

520-630mm

Max.Travel of Top Slide

300mm

Tool Shank Size

45mm

Transport Package

Wood Case

Specification

CE ISO9001

Trademark

UNI-TECH

Origin

China

HS Code

84581900

Production Capacity

100sets/Month

Product Description

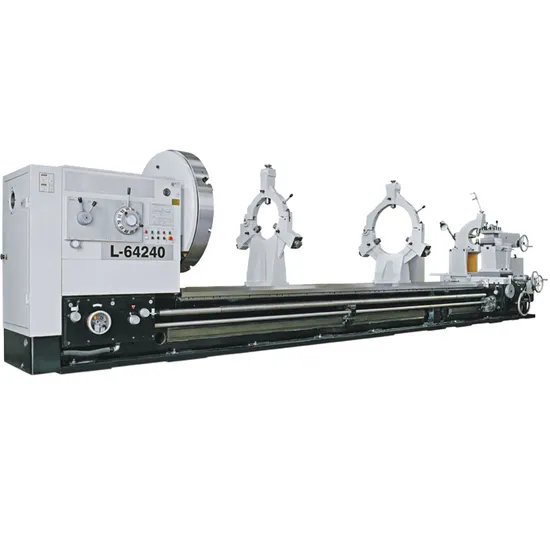

China Heavy Duty Horizontal Metal Big Spindle Bore Lathe Machine
Applications of Universal 2tons Manual Turning Lathe
The Universal 2tons Manual Turning Lathe is ideal for machining internal, external and cylindrical surfaces as well as other rotary surfaces. It is suitable for cutting various metric, whitworth, module, and D. P. Threads, as well as big discs; And conventional turning, facing, drilling, reaming and broaching are also available.
Features of Universal 2tons Manual Turning Lathe
1. This manual lathe can machine big disc & special workpieces in Gap Bridge of bed.
2. The roughness of the parts which are finished by the lathe are up to 3.2μ M.
3. The turning lathe accuracy of the dimension can reach IT7".
4. Two shaft sliding-gear transmission mechanism in the feed box has better rigidity.
5. The apron has rapid traverse mechanism and controlled by single handle.

ITEM	UNIT	CW61100B	CW61125B	CW61140B	CW61160B
CAPACITIES
Swing over bed	mm	1000	1250	1400	1640
Swing over carriage	mm	615	865	1015	1250
Max.length of workpiece	mm	1500 2000 3000 4000 5000 6000 8000 10000 12000
Max.turning length	mm	1300 1800 2800 3800 4800 5800 7800 9800 11800
Pan of guideway	mm	755
SPINDLE
Spindle nose	mm	A2-15(8×M22)
Spindle bore	mm	130
Taper hole of spindle		1:20/140
Range of spindle speeds	r/min	forward:3.15~315 ; reverse:3.5~291
No.of spindle speeds		forward:21; reverse:12
FEED
No.of Longitudinal and cross		56/56
Feed per revolution	mm	Longitudinal:0.1~12;cross:0.05~6;top slide:0.025~3
No. and range of metric thread		44;1~120mm
No. and range of inch thread		31;28~1/4
No. and range of module thread		45;0.5~60mm
No. and range of dia. thread		38;1/2~56DP
turret
Distance of centerline and tool resting plane	mm	48
Tool post swing range	°	±90°
max travel of cross slide	mm	520(20″)	580	580	630
max travel of top slide	mm	300
Section of tool shank	mm	45(260x260)
Rapid travel speeds	mm/min	Longitudinal:3740;cross:1870;Little slide:935
TAILSTOCK
Dia. of tailstock	mm	160(6″)
Travel of tailstock quill	mm	300(12″)
Taper hole of tailstock quill		morse 6
OTHERS
Main motor power	kw	22
Length	mm	4600 5100 6100 7100 8100 9100 11100 13100 15100
Width	mm	2150
Height	mm	1700 1825 2150
Max.weight of workpiece	kg	6000
