ATOELEC Lab Vacuum Mixer Machine for lithium battery

Product Description

Product Description

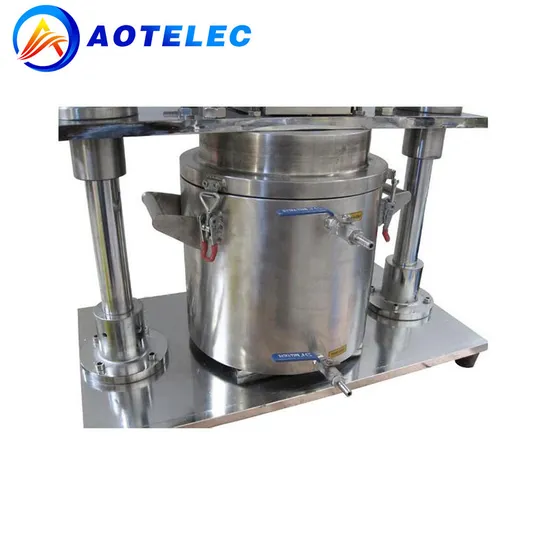

5L Small Helical Blade Vacuum Mixing Machine for Li Battery Electrode Slurring Making
Vacuum mixing machine is designed for making large batch of chemical compound via blending and mixing in single container under vacuum driven by electricity only.
The vacuum mixing machine is programmable in speed, time, and rotating direction, and water cold stainless steel tank promise high efficient in mixing.
This vacuum mixing machine is excellent for preparing lithium battery materials LiCoO3, LiFePO4, Phosphors and ceramic slurry without gas bubble. And the processed material results in the better dispersion and uniformity.

Model	Vacuum mixing machine AOT-SFM-6E
Features	5 liter 304 stainless steel container with double layer water cooling jacket. Advanced T type sealing to keep vacuum pressure up to 12 hours. Double Step Rotary Vane Vacuum Pump, is included for immediate operation Container is opened or closed by electric motor (no air pump is required any more) Programmable controller to set time, speed, rotation direction.
Voltage	110-240V AC single Phase, 50/60Hz (build-in frequency converter to ensure the mixer can be used under 50 or 60 Hz)
Rate Power	750 W
Rotor Rod Speed	0 -1400 RPM variable
Lifting	Electric motor ( no compress are pump required any more )
Water Requirement	16 L/min water flow required to cool mixing tank Cooling water 1/4'' Inlet and outlet on the back of the mixing tank (with build-in cooling jacket) Suggest you order recirculating water chiller by click picture picture left to save water (water chiller is not included)
Vacuum Pump	Double Step Rotary Vane Vacuum Pump, is included Vacuum gauge is built in with minimum vacuum level -0.1 MPa
304SS Container Size	270mm O.D. x 210mm I.D. x 230mm H
Dimensions	580mm(L) x 320mm(W) x 1340mm(H)
Net Weight	119 kg (262 lbs)
Warranty	One year limited warranty with lifetime support

Company Profile
Xiamen AOT Battery Equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
Certifications
The products produced by the company have obtained anumber of certificates
Exhibition
AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.
Packaging & Shipping
FAQ
Q1:How long do you need to prepare my goods?
A:3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).
Q2:Can we have our logo or company name to be printed on products or package?
A:Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.
Q3:How can I install and operate the machine by myself?
A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
Q4:How to get technical support after purchasing?
A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.
Q5:What's the warranty for the items?
A: We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately. Warranty for equipment is 1 or 2 year (12 or 24 months depends on the type of products), If the equipment parts are damaged due to non-human factors within one year, we will provide replacement parts free of charge.

---
