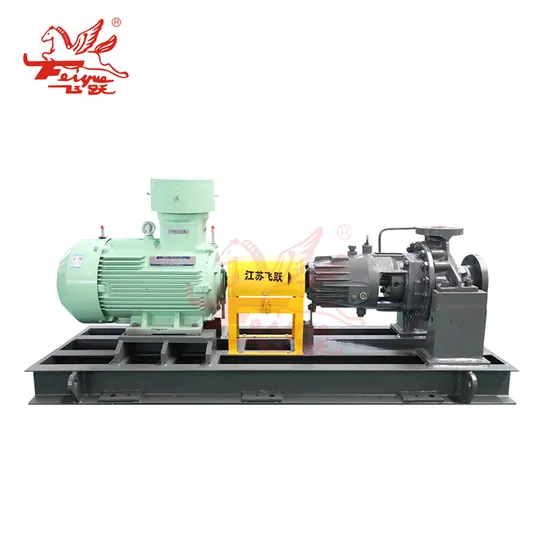

API610 Oh2 Fze High-Temperature Horizontal Centrifugal Pump for Chemical Industry

Product Description

API610 OH2 Fze Stainless Steel Material High-Temperature Resistant Horizontal centrifugal Pump for Chemical IndustryProduct DescriptionConform to design standard of API610
Flow range: 3~2600m2/h
Lift range: 4~300m
Design pressure: 5.0MPa at most
Application temperature: -80~450ºC
Application field: transport all kinds of clean media, particle contained high-temperature or low temperature inflammable, explosive, poisonous, neutral or strong corrosive media. Mainly used in industries and fields of oil refinery,petrochemical engineering,low-temperature engineering, coal chemical industry,chemical fiber and general industrial process, power plant, large and medium sized heating and air conditioning equipment, environmental protection engineering, marine industry and seawater desalting plant etc.
Summary
FZA,FZE series pump is designed and manufactured in accordance with API610, featuring; Safe and reliable structure, stable operation.
Unparalleled cavitation performance. due to small NPSHr, economizing investment on device.
Wide performance range, close interval of flow capacity and delivery lift, convenient type selection.
High standardization and generalization, the impeller and accessories of bearing of ZAand FZE is interchangeable.
There's three cooling methods of bearing, air cooling, fan cooling and water cooling, selected as different service
temperature.
Applicable range
This series of product is applicable to convey clean or particle-contained liquid, neutral or corrosive media at low or high temperature,
mainly used in the fields of petroleum processing, petrochemical, papermaking, coal processing, food, pharmacy. environmental protection.
Parameter range
Flow capacityQ:3~2600m2/h
Delivery lift H:4~300m
Working pressure P:FZA 2.5MPa FZE 5.0MPa
Working temperature: FZA -45ºC~+180ºC FZE -80ºC~+450ºC
Meaning of model code
250-Nominal diameter of impeller(mm)
50-Outlet diameter of pump(mm)
FZA(FZE)-Series codeChart

1	Impeller nut	2	Pump body	3	Impeller	4	Pump cover	5	Axle sleeve	6	Machine seal
7	Seal cover	8	Bearing box	9	Front axle bearing cover	10	Suspension loop	11	Front bearing	12	Air chamber
13	Oil draining bolt	14	Axle	15	After bearing	16	Lock nut	17	Rear axle bearing cover	18	Coupling

Product ParametersPerformance parameters of the table
