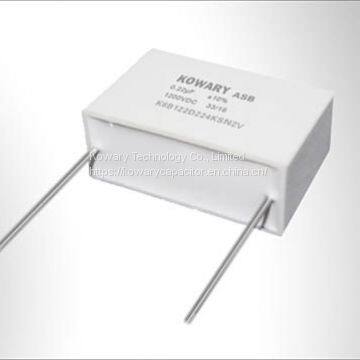

Power Electronic Capacitor IGBT Snubber ASB

Product Details

Product Details

Product Description

Product Description
■GENERAL TECHNICAL CHARACTERISTICS
Reference standards IEC 61071
Dielectric Polypropylene film
Construction Dry construction, Non-inductive type
Case Solvent resistant plastic case with resin sealing. Flame retardant execution (UL94V-0).
Leads Tinned copper wire, 2 leads, 4 leads, 6 leads
Dissipation factor ≤6.0×10-4 Measured at 1000 Hz and 20±5℃
Life expectancy 100,000 hours at UNDC and 70 ℃(Hot-spot temperature)
Dielectric strength 1.5×UNDC applied to 10s at 20±5 ℃
Test voltage terminal to case 3KVAC/50Hz for 10s
Insulation resistance(IR*CN) 30000s but need not exceed 30GΩ, after 1 minute of electrification at 100VDC (20±5℃)
■ELECTRICAL SPECIFICATION Unit: mm
Part
Number
Cap
(μF)
Dimension
Du/dt
(v/μs)
Ipeak
(A)
Imax @60℃ @10KHz (A)
ESR @100KHz (mΩ)
L
B
H
P
P1
d
UNDC 700Vdc, Urms 380Vac, Us 1050Vdc
K8B701D104KSN2T***
0.10
26.5
8.5
17.0
22.5

0.8
600
60
3.6
21.3
K8B701D154KSN2T***
0.15
26.5
10.0
18.5
22.5

0.8
600
90
5
16.3
K8B701D224KSN2T***
0.22
26.5
11.0
20.0
22.5

0.8
600
132
6.5
11.5
K8B701D224KSN2V***
0.22
31.0
11.0
20.0
27.5

1.0
485
107
6.5
15.2
K8B701D334KSN2V***
0.33
31.0
13.0
22.0
27.5

1.0
485
160
8.5
11.2
K8B701D474KSN2V***
0.47
31.0
15.0
24.5
27.5

1.0
485
228
9
6.9
K8B701D684KSN2V***
0.68
31.0
17.0
28.0
27.5

1.2
485
330
12
5.5
K8B701D684KSN4V***
0.68
31.0
17.0
28.0
27.5
5.1
1.2
485
330
16
4.6
K8B701D824KSN4V***
0.82
31.0
17.0
28.0
27.5
10.2
1.2
485
398
12
4.8
K8B701D824KSN2F***
0.82
42.5
15.0
26.0
37.5

1.2
325
267
12
5.1
K8B701D105KSN2V***
1.0
31.0
22.0
31.0
27.5

1.2
485
485
12
4.8
K8B701D105KSN4V***
1.0
31.0
22.0
31.0
27.5
10.2
1.2
485
485
19
3.9
K8B701D105KSN2F***
1.0
42.5
17.0
28.0
37.5

1.2
325
325
12
4..9

Part
Number
Cap
(μF)
Dimension
Du/dt
(v/μs)
Ipeak
(A)
Imax @60℃ @10KHz (A)
ESR @100KHz (mΩ)
L
B
H
P
P1
d
UNDC 2500Vdc, Urms 700Vac, Us 3750Vdc
K8B252D333KSN2V***
0.033
31.0
11.0
20.0
27.5

0.8
2150
71
4
33.8
K8B252D473KSN2V***
0.047
31.0
13.0
22.0
27.5

0.8
2150
101
5.5
25.0
K8B252D683KSN2V***
0.068
31.0
17.0
28.0
27.5

1.0
2150
146
8
17.3
K8B252D104KSN2V***
0.10
31.0
18.0
33.0
27.5

1.2
2150
215
10
11.5
K8B252D104KSN4V***
0.10
31.0
18.0
33.0
27.5
10.2
1.2
2150
215
11.5
11.5
K8B252D104KSN2F***
0.10
42.5
15.0
26.0
37.5

1.2
1350
135
8.5
17.5
K8B252D154KSN2F***
0.15
42.5
22.0
30.0
37.5

1.2
1350
203
11
11.5
K8B252D154KSN4F***
0.15
42.5
22.0
30.0
37.5
10.2
1.2
1350
203
15
9.8
K8B252D224KSN2F***
0.22
42.5
28.0
37.0
37.5

1.2
1350
297
12
8.7
K8B252D224KSN4F***
0.22
42.5
28.0
37.0
37.5
10.2
1.2
1350
297
22
7.8
K8B252D334KSN2F***
0.33
42.5
28.0
37.0
37.5

1.2
1350
446
12
6.5
K8B252D334KSN4F***
0.33
42.5
28.0
37.0
37.5
20.3
1.2
1350
446
20
5.9
K8B252D394KSN2F***
0.39
42.5
30.0
45.0
37.5

1.2
1350
527
12
5.8
K8B252D394KSN4F***
0.39
42.5
30.0
45.0
37.5
20.3
1.2
1350
527
20
5.6
K8B252D394KSN6F***
0.39
42.5
33.0
45.0
37.5
10.2
1.2
1350
527
25
5.6
K8B252D474KSN6F***
0.47
42.5
33.0
45.0
37.5
10.2
1.2
1350
635
25
5.3
K8B252D474KSN2G***
0.47
57.5
30.0
45.0
52.5

1.2
750
353
12
6.5
K8B252D474KSN4G***
0.47
57.5
30.0
45.0
52.5
20.3
1.2
750
353
22
5.8
K8B252D564KSN2G***
0.56
57.5
30.0
45.0
52.5

1.2
750
420
12
6.5
K8B252D564KSN4G***
0.56
57.5
30.0
45.0
52.5
20.3
1.2
750
420
22
5.4
K8B252D564KSN6G***
0.56
57.5
30.0
45.0
52.5
10.2
1.2
750
420
25
5.4
K8B252D684KSN2G***
0.68
57.5
35.0
50.0
52.5

1.2
750
510
12
6.2
K8B252D684KSN4G***
0.68
57.5
35.0
50.0
52.5
20.3
1.2
750
510
22
5.1
K8B252D684KSN6G***
0.68
57.5
35.0
50.0
52.5
10.2
1.2
750
510
25
5.1
K8B252D824KSN2G***
0.82
57.5
35.0
50.0
52.5

1.2
750
615
12
5.6
K8B252D824KSN4G***
0.82
57.5
35.0
50.0
52.5
20.3
1.2
750
615
22
4.5
K8B252D824KSN6G***
0.82
57.5
35.0
50.0
52.5
10.2
1.2
750
615
26
4.2
UNDC 3000Vdc, Urms 750Vac, Us 4500Vdc
K8B302D472KSN2T***
0.0047
26.5
7.0
16.0
22.5

0.8
3400
16
1.5
130.5
K8B302D103KSN2T***
0.01
26.5
8.5
17.0
22.5

0.8
3400
23
2
96.0
K8B302D103KSN2T***
0.01
26.5
11.0
20.0
22.5

0.8
3400
34
2.5
68.5
K8B302D103KSN2V***
0.01
31.0
9.0
18.0
27.5

0.8
2750
28
2.5
81.5
K8B302D223KSN2T***
0.022
26.5
12.0
22.0
22.5

0.8
3400
51
3
49.5
K8B302D223KSN2V***
0.022
31.0
11.0
20.0
27.5

0.8
2750
41
3
57.5
K8B302D223KSN2V***
0.022
31.0
13.0
22.0
27.5

0.8
2750
61
4
39.7
K8B302D333KSN2V***
0.033
31.0
15.0
24.5
27.5

0.8
2750
91
5
28.5
K8B302D473KSN2V***
0.047
31.0
18.0
33.0
27.5

1.0
2750
129
7.5
20.7
K8B302D104KSN2F***
0.10
42.5
22.0
30.0
37.5

1.2
1600
160
10
14.5
K8B302D104KSN4F***
0.10
42.5
22.0
30.0
37.5
10.2
1.2
1600
160
12.5
13.5
K8B302D154KSN2F***
0.15
42.5
28.0
37.0
37.5

1.2
1600
240
12
10.2
K8B302D154KSN4F***
0.15
42.5
28.0
37.0
37.5
10.2
1.2
1600
240
14.5
9.5
K8B302D184KSN4F***
0.18
42.5
28.0
37.0
37.5
10.2
1.2
1600
288
16
8.7
K8B302D224KSN2F***
0.22
42.5
30.0
45.0
37.5

1.2
1600
352
12
8.7
K8B302D224KSN4F***
0.22
42.5
30.0
45.0
37.5
20.3
1.2
1600
352
18
7.1
K8B302D224KSN6F***
0.22
42.5
33.0
45.0
37.5
10.2
1.2
1600
352
25
9.2
K8B302D244KSN6F***
0.24
42.5
33.0
45.0
37.5
10.2
1.2
1600
384
24
8.7
K8B302D274KSN6F***
0.27
42.5
33.0
45.0
37.5
10.2
1.2
1600
432
26
8.6
K8B302D334KSN6F***
0.33
42.5
33.0
45.0
37.5
10.2
1.2
1600
528
24
8.0
K8B302D334KSN2G***
0.33
57.5
30.0
45.0
52.5

1.2
875
289
12
8.6
K8B302D334KSN4G***
0.33
57.5
30.0
45.0
52.5
20.3
1.2
875
289
20
9.0
K8B302D354KSN6G***
0.35
42.5
33.0
45.0
37.5
10.2
1.2
1600
560
28
5.2
K8B302D474KSN2G***
0.47
57.5
33.0
50.0
52.5

1.2
875
411
12
7.3
K8B302D474KSN4G***
0.47
57.5
33.0
50.0
52.5
20.3
1.2
875
411
22
5.7
Remark: 1. *** Internal code.
2. Customization for special specification and requirement is available.
