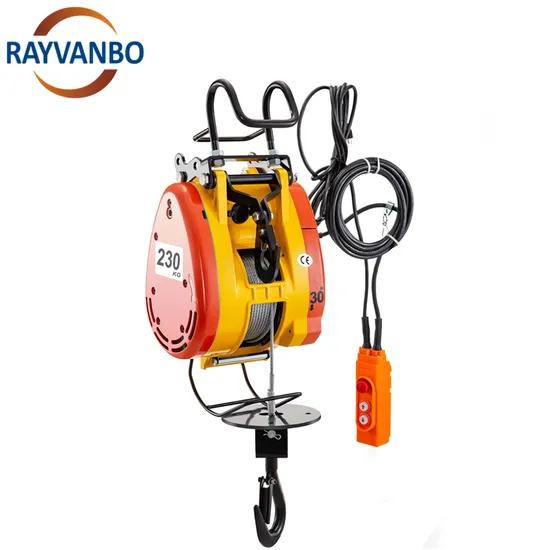

160kg 180kg 230kg 250kg 300kg 500kg Wireless Remote Control Mini Electric Wire Rope Hoist Winch

Product Description

Product Description
USAGE:The mini hoist can be widely used in hanging for engineering, plant hoist operations, civil hydropower installed piping,
Warehousing and shipping the goods; it can be used to lift, raise and, drag. It's compact, lightweight, economy and effective, andeasy to obtain single-phase
Features:Motor system:Using brushless motor series excited of high efficiency industrial grade;there are two selected configurations of single-phase voltage(110V/220V);its enameled heat levels up to 200 degrees, specifically designed for long crane.Broke system:Dual brake system with one mechanical rachet gear brakes and the other brake resistor short ciruit controller; formula oiled copper disc brakes with high friction coefficient, which needs no adjustement; immediately brake in power outage or malfunction, great safety and long life.Security system:Cable stops automatically over the volume limit;Cable stops automatically when inversing.Electronic control system:Direct control which saves tedious lines and has the advantages of easy with sparate power line and quick connector makes it easy to carry.Cable Specification:Japan imported steel wire from large manufacturing firms with 3-fold safety factor.Gear system:Use drive bevel reducing gear of high efficiency;heat treated alloy steel gear with its intensity three times higher than the rated hoist.
Product Details
Electric mini wire rope winch description
The shell of Electric mini wire rope winch/hoist is made of aluminum, which has better heat dissipation.
The steel wire rope carries heavy objects. The motor has greater strength and faster speed, about 19m/Min. The lifting speed of this small electric hoist is fast. The lifting speed of the general electric wire rope hoist is 8 m/min, and the lifting speed of this electric hoist can reach 19 m/min. This electric hoist is a hook type, which is simple and convenient to install.
Electric mini wire rope winch advantages
1. Over-coiling prevention device: When the wire rope is coiled to the line, the power supply will be automatically cut off and automatically stopped immediately to prevent collisions.
2. Reversal prevention device: It has the function of preventing reversal, and it will stop automatically when reversal occurs.
3. Double safety brake device: When the motor is used as the power, the motor will decelerate instantly when the power is cut off. At the same time, the mechanical ratchet brake is activated. The double safety brake device prevents the electric hoist from braking failure, which greatly enhances the safety of use.
4. The motor of the mini electric hoist is made of aluminum material, which has better heat dissipation function.
5. This electric hoist bearing frame is made of cast steel, which can bear heavy weight without being damaged.
6. This electric hoist also has a designed double safety function, flexible hooks, and lower requirements for suspension points.
7. The hoist is small and portable, easy to carry.
Product Parameters

Model	Load	Speed	Lift Hight(Max)	Motor Power
BCD-160	160kg	19M/Min	30 Metre	1200W
BCD-180	180kg	19M/Min	30 Metre	1300W
BCD-230	230kg	19M/Min	30 Metre	1300W
BCD-250	250kg	19M/Min	30 Metre	1500W
BCD-300	300kg	19M/Min	30 Metre	1600W
BCD-280	280kg	13M/Min	60 Metre	1300W
BCD-360	360kg	13M/Min	60 Metre	1600W
BCD-500	500kg	13M/Min	30 Metre	1800W
Packing:carton 220V/1 Phase

Packaging & Shipping
Product Application
About Us
FAQ
Q1: What are you? Trade Company or manufacturer?
We are both manufacturer & trading company

Q2: What's the advantage of your company?
We've experienced manufacturer and overseas dealer. Our products have been exported to over 110 countries.
An independent research team especially focusing on crane and hoist design upgrade. A professional service
team for customers will provide feedback within 24 hours.

Q3: What's the sample & MOQ to your company?
Sample order MOQ can be 1 set and the product you ordered will be sent in a week as long as inventory is available.

Q4: Can I customize the product according to my own willing?
Yes, OEM/ODM are available, we can customize as customer's request.

Q5: How is the package during transportation?
Composite wooden crate for the electrical parts, waterproof cloth for the steel structure, then packed in a metal crate.

---
