American Standard H-Beam

Product Details

Product Description

Product Description

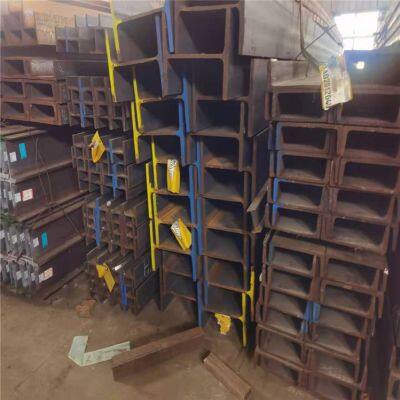

Product Introduction: American Standard H-Beam W12×30The W12×30 is a widely used American Standard Wide Flange H-Beam (W-Beam) known for its excellent structural performance and versatility. Below is a detailed introduction to its specifications, material, mechanical properties, and applications.
1. Basic ParametersParameter NameValue

Model	W12×30
Height (h)	12.30 inches (312.4 mm)
Flange Width (b)	6.52 inches (165.6 mm)
Web Thickness (tw)	0.26 inches (6.6 mm)
Flange Thickness (tf)	0.44 inches (11.2 mm)
Weight	30 lb/ft (44.6 kg/m)

2. Material and StandardsMaterial: Typically made of ASTM A36 (carbon structural steel) or ASTM A992 (structural steel for buildings).
Standards: Complies with ASTM A6/A6M standards.
3. Mechanical PropertiesPerformance IndicatorValue

Yield Strength (Fy)	36 ksi (250 MPa)
Tensile Strength (Fu)	58-80 ksi (400-550 MPa)
Elongation	≥ 21%

4. Advantages and FeaturesHigh Strength: With a yield strength of 36 ksi, the W12×30 is suitable for high-load structural applications.
Lightweight Design: Weighing only 30 lb/ft, it reduces structural self-weight and foundation costs.
Precise Dimensions: Manufactured to strict American standards, ensuring accurate dimensions for easy installation and construction.
Excellent Load-Bearing Capacity: Ideal for beams, columns, and other structural components.
Versatility: Suitable for a wide range of applications, including buildings, bridges, and industrial structures.
5. ApplicationsThe W12×30 H-beam is widely used in:
Building Structures: Beams, columns, and frames for residential, commercial, and industrial buildings.
Bridges: Main girders and support structures.
Industrial Facilities: Platforms, mezzanines, and heavy equipment supports.
Infrastructure Projects: Towers, warehouses, and storage facilities.
6. SummaryThe W12×30 is a high-quality American Standard Wide Flange H-Beam that combines strength, lightweight design, and precise dimensions. Its excellent mechanical properties and versatility make it a reliable choice for various structural applications. For detailed technical parameters or procurement advice, feel free to contact us!

---
