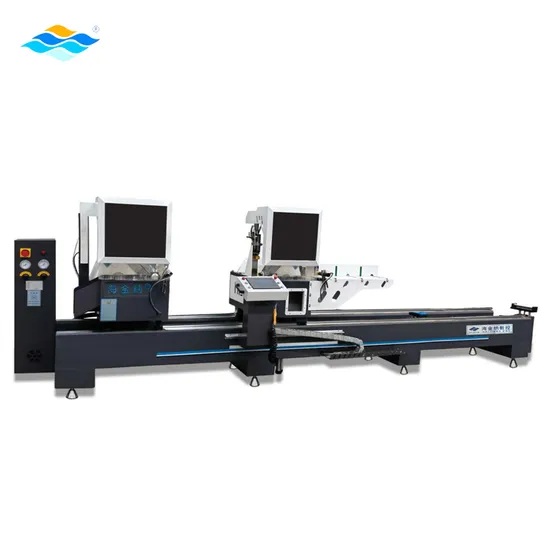

CNC Double Head Mitre Saw for Making Aluminum Windows and Doors

Product Description

Product Description
HJN3A-500*4200 is a fully automatic double head saw for 90 degree and 45 degree cutting, used for the production of aluminum windows and doors. The cutting angle, length and quantity can be set through HMI and executed automatically.
Standard Features:
Applicable material: aluminum,thermal break profile and curtain wall profile. Hydro-pneumatic saw feed Saw heads can be pneumatically tilted at outward 45 and 90 degrees. The one-piece cast and machined tilting shaft has no deformation after long-term use to ensure angular positioning accuracy. Equipped with high precision spindle motor Servo-controlled right head positioning and feeding to ensure accuracy. Automatic profile height measurement. The CNC operating system provides four processing modes: Single, Form, Short, Corner cleat Comes standard with three pneumatic lift stands for supporting the profile. 10 inch LCD touch screen color monitor.
Product Parameters

Model	HJN3A-500*4200
Motor power:	2*3kw
Input power	6.8kw
Air pressure	0.5-0.8Mpa
Air consumption	200L /min
Rotation speed	2800rpm.
Blade size:	Ø500*Ø30*4.4mm*120T
Cutting length	50mm high profile:329-8000mm (double miter 45° cut)
Max.cutting width	130mm
Cutting angle:	90°/45°
Repeatability	≤0.2mm
Angle tolerance	±5′
Flatness	≤0.05mm
Surface roughness	Ra12.5um
Overall dimension	5800*1370*1700mm
Weight	1600Kg

Detailed Photos
Company Profile
HISENA specializing in production and selling UPVC and aluminum doorsand windows manufacturing machines.Our company is located in Jinan, China. We have professional team of 50staff in R&D, production, marketing and after-sales service.The greatest features of our machines are high quality, strong durabilityand stability, and we offer the best price/performance ratio without sacri-ficing quality.We provide multiple solutions to meet the different needs of customersand also we support the customization of equipment.HISENA has obtained lS0 9001,CE certificate, more than 10 patent cer.tificates, and high-tech enterprise certificate. Taking the customer expe.rience as the center, HISENA constantly updates the interactive experi-ence of machines and improves the use of operating procedures.The perfect pre-sales and after-sales service has won the unanimoustrust of many customers at home and abroad.

---
