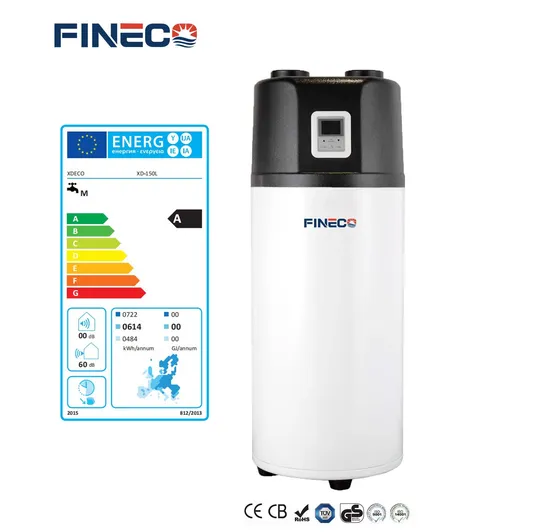

All in One Heat Pump Water Heater with 60 Degree Outlet Hot Water High Cop with CE, Key Mark

Product Description

Description:
FINECO All In One heat pump is one of the most economical systems to provide domestic sanitary hot water for the house,As a lovely equipment, it could be put indoor. It is with 3~4 times higher efficiency than gas boiler or electrical heater and it can also be combined with solar heating system and boiler-heating system. Therefore this could reduce costs for the users in a big way.
Features: 1. High Cop mitsubishi Heat Pump Compressor, Fan motor, Much Quiet, Saving.
2. Inner Coil, Direct Heat Transfer, High Efficiency.
3. Optional Auxiliary Electric Heating as Backup Heat Source & high
temperature antisepsis.
4. Providing free kitchen air conditioning while producing hot water.
5. Optional Refrigerant: R410A, R134A.
6. All-in-one design,Easy to install and use
7. Electronic expansion valve is adopted

Spcecification:

MODEL			XD-150L	XD-200L	XD-250L	XD-300L	XD-500L
Specification Data	Power Type		220-240V/1PH/50Hz
	Heating Capacity	KW	2	2	3.5	3.5	3.5
	Rated Input Power	KW	0.55	0.55	0.77	0.77	0.77
	Water Yield	L/h	65	65	127	178	192
	Rated Current	A	3.5	3.5	6.9	9.9	10.8
	Cop	7 degc	3.9	3.9	3.9	3.9	3.9
	Water Tank Valume	L	150	200	250	300	500
	Water Tank Material		Interior Tank SUS304
	Tuyere Specifications	mm	150-150
	Max. Hot Water	ºC	60
	Rated Hot Water	ºC	55
	Net Weight	kg	75	80	88	95	110
	Gross Weight	kg	80	92	101	109	124
	Noise	dB(A)	45	45	48	48	48
	Water Connector	Inch	G3/4"	G3/4"	G3/4"	G3/4"	G3/4"
	Unit Size	mm	560*560*1500	560*560*1730	640*640*1620	640*640*1840	790*790*2050
	Packing Size	mm	670*670*1720	670*670*1860	750*750*1740	750*750*1970	900*900*2200
Standard features	Compressor	Brand	Panasoni/Mitsubishi
		QTY	1
	Condensor		Interior-coil
	Evaporator		Inner threaded pipe + hydrophilic aluminum foil
	4-way valve		Famous brand
	Electronic Expansion Valve		Sanhua
	Fan Motor		150W
	Shell/Material		Color-coated plate
	Controller		LCD Display controller
	High pressure switch		4.0/2.4MPa
	Low pressure switch		0.02/0.15MPa
	Working mode		Heating only
	Refrigerant		R410a
	Back up heater		1.5KW(optional)
Note: Testing condition Ambient temp.(DB/WB) = 20ºC/ 15 ºC,water temp. Input/output = 15ºC/55ºC

Compact All In One Design:
About FINECO :
Guangdong Fineco New Energy Co., Ltd. is a professional manufacturer who has more than 20 years experience in refrigeration and heating industry, and long term tech cooperation with world-famous enterprises such as Panasoni, Emerson, Schneider, Willo,SWEP, Danfos,etc in this field. Fineco focuses on the heat pump project since 1999, making full range heat pump products involving air to water heat pump, water to water heat pump ,heat pump drier , refrigeration ,industrial water cooled chiller and some other relative products .
Fineco products are strictly designed and tested to make sure the best efficiency and quality to international market. We carry out ISO9001 quality control system and ISO14001 environmental system to ensure providing the best quality products and service to our customers so that our sales network throughout Europe, South America, Africa, Middle East, Southeast Asia and so on. Most of our products have CE and CB certificates issued by TUV. We are looking forward for our cooperation.
Package & Container Loading:
Project Cases:
Customers Style:
-- FAQ --
Q1.What does Fineco new energy company do?
A:Guangdong Fineco New Energy Co., Ltd. is a professional manufacturer who has more than 20 years experience in refrigeration and heating industry since 1999. We make full range heat pump products involving air to water heat pump, water to water heat pump ,heat pump drier , industrial water cooled chiller ,swimming pool heat pump and some other relative products .
Q2. How about the delivery time?
A: Sample needs 12 days, mass production time needs 2-3 weeks for order quantity more than one container.
Q3. Can I buy one sample from Fineco ?
A: Yes, we welcome to order samples to do testing and check quality. Mixed samples are acceptable.
Q4. What's the MOQ for your products?
A: Low MOQ, 1PC for sample testing is available
Q5. What certificates did Fineco obtain?
A: The certificate we have include: CE, RoHS, SGS, ISO9001, ISO14001, CB ,national Lab inspecton report, technology patents and so on.
Q6. Which markets did Fineco products export to before?
A: Our sales network throughout Europe,South America, Africa, Middle East, Southeast Asia and so on.
Q7. What support can Fineco provide to business partner?
A: * Competitive & high quality products.
* New business opportunities & profits.
* Free brochures & technical data.
* Free training for products of technical,installation & marketing.
* End customer resources sharing in the territory.
* Offer 24 hours online service .
Q8. OEM order is ok ?
A: Yes. Legal OEM brand is accepted. Please provide your logo and brand authorization to us before production .
Q9: What's the warranty about products?
A: Yes, we provide 1% free spare parts together with mass order and offer 3 years warranty for main parts .
We're looking forward to our partnership and cooperation!

---
