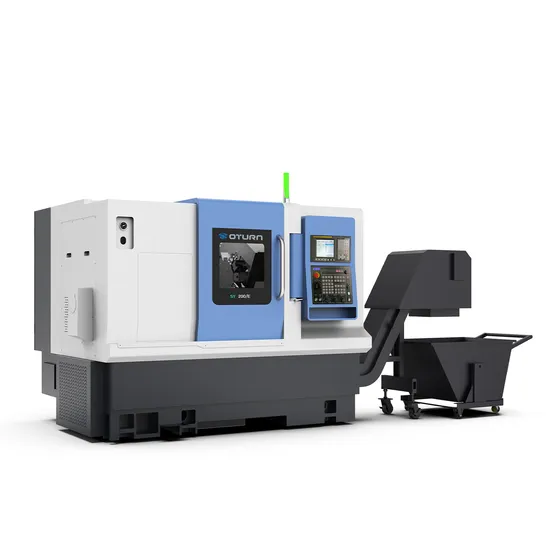

Oturncnc Slant Bed CNC Metal Lathe with OEM/ODM Service

Product Description

Product Description
Sy200 series CNC lathe adopts a box-shaped structure bed, which is made of high-strength HT300 cast iron. It has a dense structure, good strength, appropriate hardness, low friction coefficient, and self-lubricating properties. The overall box structure of the base bed greatly enhances the overall rigidity of the machine tool. And stability, and has the function of absorbing vibration, reducing tool loss and improving workpiece quality. It has a high performance-price ratio, the layout of the whole machine is compact and reasonable, and its high speed, high precision, high rigidity and rich configurations provide users with high efficiency and high reliability guarantee in use.
1. Main features of this machine:
1. Adopting a 30° inclined layout and an integrated structure of the bed base, which greatly improves the bending and torsional rigidity of the machine tool during operation. The high rigidity and high stability of the integrated bed base provide high precision for the entire machine. A strong guarantee.
2. The spindle unit is an independent sleeve type. The spindle system has undergone strict dynamic balance testing and has high precision, good accuracy retention, small thermal deformation, and good thermal stability. The maximum speed can reach 4500rpm, and the nose deflection accuracy is within 0.003MM. The front end of the shaft uses a large-diameter, high-precision double-row roller bearing with a combined angular contact ball bearing structure. The optimal span two-point balance support design can withstand radial and axial loads, and can also provide users with high-speed precision work. It can also perform low-speed and heavy cutting, and is especially suitable for mass production of products with complex shapes, high precision requirements, and high smoothness.
3. The programmable hydraulic tailstock is a high-rigidity integral tailstock that can eliminate vibration and provide excellent stability. It can be controlled by programmable or manual buttons and uses a hydraulic cylinder to realize sleeve expansion and contraction, which is convenient, fast and reliable.
4. The standard configuration of high-performance servo turret provides users with convenient, practical and reliable processing components.
5. The feed system is directly driven by a servo motor, with good rigidity, precision and dynamic response characteristics. The machine tool is equipped with THK roller linear guide, and the maximum rapid movement speed can reach: 24m/min.
6. This machine provides users with a complete hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components to greatly reduce the failure rate. The hydraulic and lubrication systems are designed to be simple and reliable. The machine tool adopts centralized quantitative automatic lubrication.
7. It adopts a Taiwan rotary chuck cylinder and is equipped with an automatic chip removal device. The chip removal method can be selected from the side or the rear direction to remove chips and separate waste residue to ensure that the inside of the water tank is clean and free of fine residue structural design. It can greatly reduce the operator's labor intensity and achieve safe and efficient production. All the above functional components can be controlled programmatically, and various special fixtures can be designed and installed according to the special requirements of users. Product Parameters

	Name	Unit	SY200E
Travel	The largest diameter rotating bed	mm	Ф600
	Max. processing diameter	mm	Ф500
	Max. processing diameter on tool holder	mm	Ф260
	Max. processing length	mm	500
	Distance Between Centers	mm	580
Spindle Oil cylinder Chuck	Spindle nose	/	A2-6
	Spindle hole diame	mm	Ф65
	Bar diameter	mm	Ф52
	Max.speed of spindle	rpm	4500
	Spindle motor power	kw	11/15 kw
	Hydraulic Cylinde/Chuck	/	8"
X/Z axis feed	X/Z axis motor power	kw	2.0KW
	X/Z axis travel	mm	275/550
	X/Z axis moving fast	mm/min	24
	Slide rail type	/	Roller 35
Servo power Turret parameters	Toolhead alignment/tool station	mm/pcs	420/12T
	Outside diameter tool holder specifications	mm	25x25
	Inner diameter tool holder specifications	mm	Ф40
	Adjacent tool change time	sec	0.15
Tailstock parameters	Programmable hydraulic tailstock	/	Programmable
	Maximum travel of tailstock	mm	360
	Sleeve diameter	mm	Ф100
	Sleeve stroke	mm	100
	Sleeve taper	/	MT#5
Mechanical Size	Covered area approx.	m	2.46x1.8x1.8
	Mechanical weight approx.	kg	4000
	Cutting fluid tank volume	L	103L
	Cutting water pump	kw	0.75kw

Products Configurations

Company Profile

Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
2.lf need ClF Price, please kindly tell us the port of destination.

---
