Real Time Outdoor Air Quality Monitor with Heater Gas Analyzer

Product Description

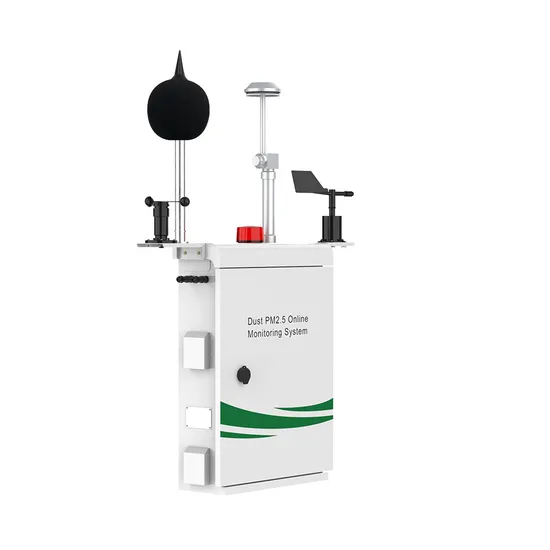

MS800A air quality monitor system Product Description
MS800A- referred to as "AQI, called the air quality in Chinese online monitoring terminal, this product combines the technique of electrochemical sensor and laser sensor technology, can monitor air pollutants SO2, O3, CO and NO2, PM2.5 and PM10 parameters, and combining with no horizon unique temperature and humidity compensation algorithm and related patent technology, measured in gas detection and dust to minimize the influence of environment temperature and humidity on the detection results.
Product Feature
· Modular design,suitable for large-scale grid layout;
· The sampling of particulate matter is controlled bydynamic heating dehumidification control;
· Can simultaneously measure PM10 and PM2.5, TSP,SO2, NO2, CO, such as O3 concentration;
· Long life anti-interference sampling power system,quiet, efficient;The sampling period is adjustable;
· The industrial-grade data transmission module is selected, and the data transmission is stable andreliable.The system adopts double channel communication mode to ensure data continuity;
· Industrial-grade embedded processor, suitable for harsh outdoor environment;
· Remote data transmission, can also read the system status information remotely, fault diagnosis;
Product Parameters

Specification
Model	MS800A					Materials		Cold-roll steel sheets
Detection Mode	Diffuse					Instation		Post installation
Dimension	620*440*160mm(L*W*H)					Work Tem		-20ºC--50ºC
Data output	RS485 Modbus,4G LTE(Optional)					Work Hum		10%-95%RH (No condensation)
Preheat	90S					Power		AC220V/50Hz,Solar power optional
IP grade	IP53					Dissipation		80W(MAX)
Particulate matter parameter
Cutter	Whirlwind physical cutter					Resolution		1ug/m3
Sampling time	Defuat 5 minutes(Customizable)					Samling method		Pumped
Diameter	PM2.5,PM10,TSP					Heating		Automatic
Measuring range	PM2.5(0-1000)μg/m3 PM10(0-1000)μg/m3					Err alarm		Real-time display of fault alarm
						Calibration		Automatic
Gas factors parameter
Factor			Measuring range	Resolution			Error of indication		T90
O3			500ppt	1 ppb			≤±10%FS		120s
NO2			500ppb	1 ppb			≤±10%FS		90s
SO2			500ppb	1 ppb			≤±10%FS		90s
CO			50 ppm	0.1 ppm			≤±10%FS		90s
Optional gas sensor (Maximum 2 kinds)
Factor			Measuring range	Resolution			Error of indication		T90
TVOC			10 ppm	0.01 ppm			≤±10%FS		90s
H2S			20 ppm	0.1 ppm			≤±10%FS		90s
NH3			20 ppm	0.1 ppm			≤±10%FS		90s
Atmosphere parameter (Optional)
Factor		Measuring range			Resolution			Precision
Temperature		-30ºC~50ºC			0.1ºC			±1ºC
Humidity		0~95%Rh			1%Rh			±5%Rh
Wind speed		0~30m/s			0.1 m/s			±1m/s
Wind direction		0~360°			1°			/
Pressure		300~1100hPa			1 hPa			/
Noise		30dB(A)~130 dB(A)			/			±3dB
Rainfall		0~4mm/min			0.1mm			±0.4mm(≤10mm);±4%(>10mm)
lllumination		0~200000 Lux			/			±7%(25ºC)

Application
Urban residential areas, key industrial enterprises and other fixed pollutionsource area environmental monitoring;Unorganized open space environmentmonitoring for road traffic, catering, agricultural production and touristattractions;Boundary transport of key pollution sources.
Company Profile
Beijing Zetron Technology Co., Ltd, formerly Beijing Senre Technology Co., Ltd was founded in 2011, located in Beijing with convenient transportation access. We have almost 10 years experience in the retail, import and export of gas detection and monitoring equipment. This experience has enabled us to form an organization based on knowledge and expertise and have allowed us to supply a range of gas detectors and monitors that are tailored to our customers needs and budgets.Our aim is to provide the best values products with high quality and style.To provide the new affordable and complete service for gas detection needs for the industrial, engineering and shipping market and our friendly staff are here to help with advice and prices.
So far, we have customers/buyers from over 20 countries/regions like Bulgaria, Brazil, Canada, China, Colombia, Germany, Iraq, Japan, Philippines, Russian Federation, Singapore, Taiwan, Thailand, Uruguay, United States, Ukraine, Vietnam, etc.The list of countries still expanding.....We are committed to become the International Well Know Provider to provide similar or better alternative, original merchandises & service to meet customers' needs, requirements and solutions.Every customer is important to us and we strive to satisfy all our Customers needs and expectations.

---
