Basic Info.
Usage
Biscuit, Cake, Pizza, Bread, Grilled and Steamed Fish
Timing Device
With Timing Device
Customized
Non-Customized
Pack Size
1250*1090*2010mm
Control Way
Touch Screen with Knob Control
Function 1
Steam, Steam-Bake, Bakery
Functioin 2
Fan Speed Auto-Washing
Transport Package
Plywood Case
Production Capacity
800 Unit/Year
Packaging & Delivery
Package Size
125.00cm * 109.00cm * 201.00cm
Package Gross Weight
342.500kg
Product Description

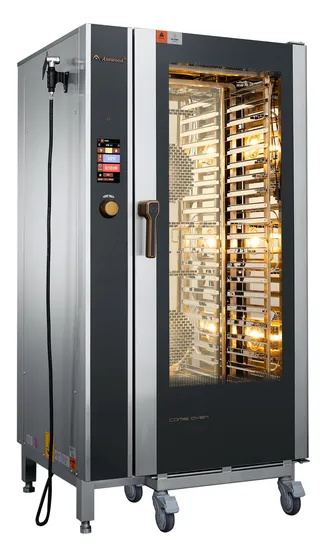

40 Trays 1/1GN Combi-Oven With Touch Screen Plus Knob Control
1, Heating method: electric heating;
2, Working temperature: 30-290 degrees Celsius;
3, Temperature accuracy: plus or minus 1 degree Celsius;
4,Menu: unlimited; menu programming steps: 15;.
5, Cleaning mode: two fully automatic cleaning modes;
6, meat needle mode: built-in 4-point temperature measurement meat needle;
7, fan characteristics: frequency reduction fan;
8, wind speed adjustable: 50 ~ 110%;
9, steam (humidity) adjustable: 10 ~ 100%;
10, Capacity: 40* 1/1GN;
11, the number of meals cooked per day: 400-600;
12, Heating power: 32KW;
13, total power: 58KW;
14, total current: 90A;
15, air open requirement: 100A;
16,Power requirements: N-380V AC/50Kz/3PH;.
17, Outside dimension (mm): 1100*930*1800;
18, bore inlet size (mm): 609 * 1380;
19, Inlet pipe diameter (mm): 3/4" to 1/2";
20, Water inlet pressure: 0.2-0.5MPa.
21, Drainage pipe diameter (mm): 42;
22, Product net weight:342.2KG.
23, Product gross weight: 456.00KG.
24, Packaging size (mm): 1250*1090*2010;
Axewood Combi-Oven Advantages
Touchscreen Master Edition-B Series:
Sensitive touch screen: two-year warranty;
Plus or minus 1 ºC temperature control; 30-290 ºC; original imported 4-segment control meat needle; positive and negative rotation; automatic dehumidification; high-pressure cleaning spray gun; sound and light prompts; with three automatic cleaning modes;
3 seconds fast direct steam, no boiler, no descaling, low failure, low energy consumption;
No upper limit on the number of menus (3G memory), each menu is divided into 15 steps;
50-110% wind speed adjustable;
10-100% steam (humidity) adjustable;
Android intelligent touchscreen control system with wifi/Bluetooth/USB data interface;
Intelligent layered cooking control function, automatic compensation for each layer of time/temperature/humidity;
Temperature difference cooking, fast dehumidification, automatic preheating, automatic heat preservation, permission control, USB data access function, etc.
| | * 1. Temperature range: baking 30 ≤ 290 ºC, steaming 30 ≤ 120 ºC, steaming and baking mixed 30 ≤ 250 ºC. |
| * 2. Quality assurance: the first company in China to implement 2 years warranty (except for glass, bulb, rubber strip, and rubber pad) |
| * 3. The whole machine's electrical accessories are pure imported, using a world-famous brand, and the appearance is designed by a French designer. |
| * 4. The following are the materials for the equipment: 304 stainless steel for the shell, 316 stainless steel for the inner box, and 840 stainless steel for the heating elements imported from Japan. |
| * 5. The motor is customized in Italy, with powerful functions, fast forward and reverse speed regulation, and stable temperature control |
| * 6. It is manufactured according to more than 50 years of foreign production experience and technology |
| * 7. There is no upper limit on the number of menus (memory 3G), each menu is divided into 15 steps. |
| * 8. The inlet center temperature probe with 4 measuring points, can withstand 300 ºC! |
| * 9. With 3 seconds of fast direct steam, no boiler, no need for scale removal, low fault, low energy consumption, and other unique strong steam functions! |
| * 10. Intelligent cooling function, the machine can automatically quickly drop to the set temperature, greatly improving the utilization rate of the equipment |
| * 11. Frequency conversion control, fan forward and reverse rotation interval only takes two seconds, 50-60HZ is applicable |
| * 12. World-class accurate temperature control, temperature difference ±1 ºC (degree Celsius ) control! |
| * 13. Intelligent layered cooking control that automatically compensates for each layer of time, temperature, humidity |
| * 14. Layered menu function: Under the same cooking mode and temperature, users can cook in layers according to different recipes. |
| * 15. My favorite recipes function: Users can develop their special recipes according to their restaurant applications |
| * 16. Reservation cooking: Making a reservation to automatically start cooking, to maximize the utilization rate of the combi-oven |
| * 17. Wind speed can be adjusted from 50% to 110% |
| * 18. Steam (humidity) can be adjusted from 10% to 100% |
| * 19. Intelligent frequency conversion control: complete fan start-up and stop switching in 2 seconds |
| * 20. Six self-cleaning programs: Spray, liquid medicine cleaning, daily oil and scale removal, daily oil removal, and strong oil removal, Can shut down automatically after night cleaning |
| * 21. Six self-cleaning programs: Spray, liquid medicine cleaning, daily oil and scale removal, daily oil removal, and strong oil removal |
| * 22. Extra high-pressure spray gun: open-door water supply. |
| * 23. Operation flow acousto-optic prompt. |
| * 24. Android intelligent touchscreen control system equipped with WI-FI, Bluetooth, and USB data interface. |
| * 25. Supporting Chinese and English settings |
>>
