US$40,000.00-60,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Winding Mode
Three Dimensional
Center Height of Winding Machine
1500mm
Transport Package
Seaworthy
Production Capacity
100000tons/Year
Product Description
1. Company Profile:
Our company is a member of the Industry Association, and is a scientific and technological enterprise specializing in the development and production of FRP GRP GRE equipment. Since its establishment, the company has been committed to the research and development of FRP GRP GRE equipment, and has successfully produced the fifth generation winding equipment so far. The technical level occupies a leading position in the same industry in China. At present, the equipment produced by our company is sold all over the country. Has achieved a good reputation, we are willing to first-class quality, first-class after-sales service for the majority of users.
2. Technical parameter
| S/N | Description | Technical parameter | Remarks |
| 1 | Diameter range of products to be made | DN300-DN600 | |
| 2 | Center height of winding machine | 1500MM | |
| 3 | Spindle power | 7.5KW | |
| 4 | Speed of spindle | 0-35rpm | |
| 5 | Swing arm rotation speed | 25r/min | |
| 6 | Swing arm rotation control mode | Swing oil-cylinder | |
| 7 | Transverse stroke of swing arm | 1500mm | |
| 8 | Longitudinal stroke of swing arm | 700mm | |
| 9 | Swing arm movement control mode | Hydraulic motor+rack | |
| 10 | Tail shaft telescoping mode | Electrical machinery | |
| 11 | Tail shaft telescoping stroke | 700mm | |
| 12 | Rated working pressure of hydraulic system | 14Mpa | |
| 13 | Equipment power | 11KW | |
3.Application and characteristics
1) Application: It is applied to the manufacture of fittings such as tees and elbows for FRP pipes.
2)Features: simple mechanical structure, convenient maintenance, swing arm controlled by hydraulic system, large working torque and adjustable speed, easy for operators to use.
4.Main structure principle

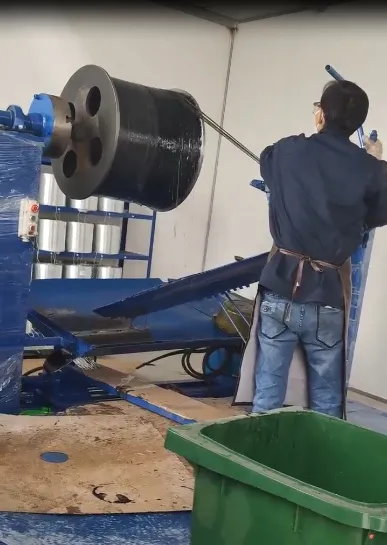

The machine head is driven by the motor reducer, the three-jaw chuck plates clamps the fitting mold, the tailstock passively supports the mold, and the product is produced through the swing of the swing arm.
5.Equipment configuration list
| S/N | Description | Main parts | Technical parameter | Brand |
| 1 | Control system | Frequency changer/inverter | 7.5KW | Powtran |
| Electric box | 600X800X300 | Fangchen |
| contactor | CJ20 | CHINT |
| 2 | Transmission system | Reducer machine | XWD6-43-7.5W | Xieshun |
| Ordinary motor | Y132M-4-B5-7.5KW | Mengniu |
| Leather belt | B-triangle belt | |
| 3 | Hydraulic pressure system | Hydraulic pump station | Volume 150L | Fangchen |
| Hydraulic oil pump | CB-Fa10C-FL | Changsheng |
| Swing cylinder | ZCFKD-63-180 | |
| Hydro-motor | BMW-250 | Hanergy |
| Hydraulic reversing valve | DCF-30-HE/CR220 | Jingchuang |
| 4 | Guide rails (bearings, etc.) | bearing | 60220 | Harbin |
| Linear guide | SBR35 | Zhejiang(Province) |
| 5 | Machine Frame | Base | 16# channel steel | Fangchen |
| Baseboard | Q235 | Fangchen |
| Spindle | 45# | Fangchen |
| Flange plate | Q235 | Fangchen |
| Resin Tank | Stainless steel | Fangchen |
| Resin tank frame | Stainless steel | Fangchen |
| Roving rack | Profile | Fangchen |
| Left and right brackets | 60X60 square tube | Fangchen |
| 6 | Protective cover | Piano-shaped shield | customized | Cangzhou |
>>
