Free Foundation Mobile Small 50m3/H Ready Mixing Plant Hzs50 Concrete Batching Plant Price

Product Description

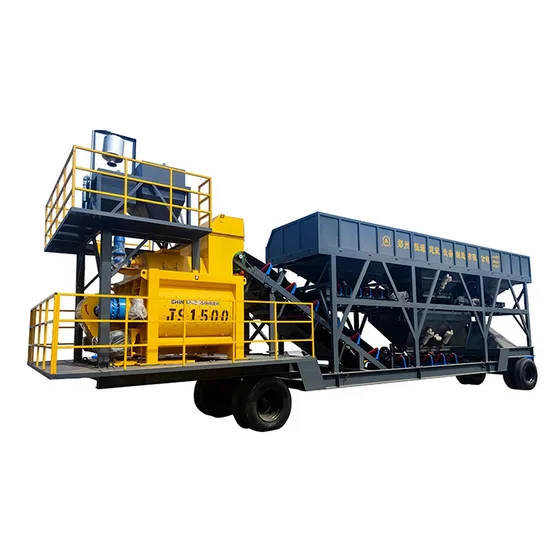

Automatic Twin-shaft Mobile Concrete Batching Plant For Sale
The twin-shaft mobile concrete mixing plant is a concrete production equipment that integrates the material storage,weighing,conveying,mixing, unloading and automatic control systems of the concrete mixing plant into a trailer unit;it is related to the fixed automatic mixing plant. All the action process,operation method,maintenance and repair are almost the same; at the same time,it has the unique characteristics of flexible movement, quick and easy disassembly and assembly,and simple storage management;it is the best choice for mobile construction of highways,bridges,ports, hydropower and other projects model.

1.No concrete foundation required,easy to install and move to everywhere 2.Use twin-shaft concrete mixer/planetary mixer 3.horizontal type cement silo is easy to move 4.the discharging height is 1.3m suitable for working with concrete pumps

Product Details

Twin-shaft mixer

Horizontal cement silo

Full-automatic control panel

Weighing system

Product Parameters

Model			YHZS25-2	YHZS35-3	YHZS50-3	YHZS75-3	YHZS100-4
Theory capacity		m³/h	25	35	50	75	100
Discharging height		mm	1250
Total power		kw	51.5	65	75	105	121.5
Total weight		T	13	15	16	17	28
Mixing System	Model of Mixer		JS500	JS750	JS1000	JS1500	JS2000
	Mixing motor	kw	18.5KW	30KW	18.5KW*2	30KW*2	37KW*2
	Discharging volume	L	500	750	1000	1500	2000
Aggregate System	Model of Batcher		PLD800-2	PLD1200-3	PLD1600-3	PLD2400-3	PLD3200-4
	Aggregate Storage		4m³×2	5.5m³×3	6m³×3	8.5m³×3	14m³×4
	Max. Aggregate Dia	mm	60/80
Measurement System	Cement weighing	kg	500	500	560	900	1200
	Water weighing	kg	220	220	220	330	400
	Additive weighing	kg	30	30	30	40	50
Trailer Speed		Km/h	40-60	40-60	40-60	40-60	40-60
Optional cement silo		T	50/100	50/100	50/100	50/100	50/100

Company Profile
HENAN HENGYUAN CO.,LTD.
Henan hengyuan Co., Ltd. is a professional engage in the research development sale and service on construction machinery: concrete batching plant,concrete pump,concrete mixer with pump,mobile concrete batching plant,stabilized soil mixing plant and cement silo.
Our office is located in Zhengzhou City,Henan province.Our factory is located in Xingyang,Zhengzhou City.Hengyuan concrete machinery has a long history of 25 years and was established in 1999.All of hengyuan Iproducts have passed ISO9001 and the batching plant have passed CE certification.
We have professional engineer support, high efficiency sales team and competitive price superiority, and attract customers from all over the world.Our main market including Canada,Uzbekistan,Russia,Peru,Brazil and Africa.
We are equipped with the CNC cutting machine, robot welding machine to ensure machine quality.Our R&D department provide the strong technical support and enable us to receive some OEM, ODM projects.We are reliable supplier of the construction machines supply with 18 months warranty.
Certifications
Customer Visiting

Packing & Shipping



Successful case






FAQ
Q1:Are you trading company or a source factory? We are factory.We mainly design and manufacture concrete equipment (concrete batching plant, concrete pump) Q2:What are the terms of payment in your formal trade? Normally we can work on T/T term T/T:30%T/T prepayment , 70% paid by T/T before delivery. Q3:What about the delivery time? Usually 15-20 days after receving the deposit. Q4:What's your after-sale service? 18 months warranty for main parts since departure. On-site installation, debugging, workers training. Make sure that your workers operate properly and know daily maintenance well. Q5:What should I do if I experience a problem on our equipment? You could email us the photos to show what happens or call us.Also on-site technician service available as request.

---
