Product Description
Product Description

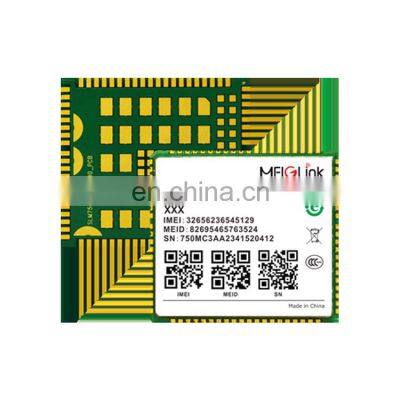

DescriptionProduct Description● MeiG Smart SLM750 series of M2M modules are designed to provide customers with wireless communication service. It covers three operators’ networks domestically and the main operators’ networks globally. It delivers maximum 150Mbps-DL and 50Mbps-UL data rates on LTE networks, and has backward compatibility with 3G and 2G networks to ensure network communication can work in remote areas.● Rx diversity and MIMO technology are provided to improve communication quality and optimize data transmission rate; high-sensitivity GNSS function is also provided.● A rich set of protocols (TCP/FTP/HTTP) and multiple OS compatibility extend the applicability of the module to a wide range of M2M applications.Main advantages● Cover LTE-FDD / LTE-TDD / WCDMA / TD-SCDMA / EDGE / GPRS / GSM / EVDO & CDMA 1x network● Qualcomm® IZat ™ Gen 8C engine, supporting GPS / GLONASS / BeiDou●Support multiple voice coding (HR / FR / EFR / AMR / AMR-WB), support SRLTE / CSFB / VOLTE (optional)● Support high-speed USB2.0 interface● Support radio frequency MIMO and receive diversity technology to improve communication quality and optimize data transmission speedBasic Attributes:Product number:SLM750 modulePackage:LCC package (80pin + LGA 64pin)Size(mm)：32.0×29.0×2.4mmWeight:< 5gModule Rate:LTE-FDD (Cat 4)：Max 150Mbps(DL)/50Mbps(UL)LTE-TDD (Cat 4)：Max 130Mbps(DL)/35Mbps(UL)LTE (Cat 1)：Max 10Mbps(DL)/5Mbps(UL)DC-HSPA+：Max 42Mbps(DL)/5.76Mbps(UL)TD-SCDMA：Max 4.2Mbps(DL)/2.2Mbps(UL)WCDMA：Max 384kbps(DL)/384kbps(UL)EDGE：Max 236.8kbps(DL)/236.8kbps(UL)GPRS：Max 85.6kbps(DL)/85.6kbps(UL)EVDO RevA：Max 3.1Mbps(DL)/1.8Mbps(UL)CDMA1x：Max 153.6kbps(DL)/153.6kbps(UL)Drivers & Tools:Drivers：Windows XP, Windows Vista,Windows 7, Windows 8, Windows 8.1,Windows 10, Linux, AndroidTools：One-click upgrade tool, Gobinet dialing tool* FOTA upgrade (under development)Module Interface:Hi-Speed USB 2.0UART×2SIM card interface(1.8 / 3.0V)Antenna interface: main / diversity / GNSS antenna (optional)I2C×1WAKEUP-IN & WAKEUP-OUTPower On/Off, ResetADC×2Fly ModeLED indicatorPCM×1WLAN interface × 1SD interface ×1SGMII×1Certification Information:CCC/SRRC/CTA/CE/FCC/ROHSTransmit power:GSM850/900 33±2dBm,GSM1800/1900 30±2dBm,CDMA/EVDO 23~30dBm,WCDMA/HSPA 23+1/-3dBm,TD-SCDMA 23+1/-3dBm,LTE-TDD 23±2.7dBm,LTE-FDD23±2.7dBmProtocols:TCP/UDP/HTTP(S*)/SSL*/FTP/PPP/PING/DTMF/ QMI(*in development)Environmental Temperature:Working temperature:-40℃ to 85℃Storage temperature:-45℃ to 90℃Humidity:5%~95%SLM750 series frequency band information:SLM750-C7AFrequency band:LTE-FDD: B1/B3/B5/B8/(B28)LTE-TDD: B38/B39/B40/B41WCDMA: B1/B8TD-SCDMA: B34/B39CDMA&EVDO: BC0 GSM: 900/1800Diversity reception:supportGNSS：supportPCM / Analog voice:Support / optionalSLM750-C7BFrequency band:LTE-FDD: B1/B3/B5/B8/(B28)LTE-TDD: B38/B39/B40/B41WCDMA: B1/B8 TD-SCDMA: B34/B39CDMA&EVDO: BC0 GSM: 900/1800Diversity reception:supportGNSS：not supportPCM / Analog voice:Support / optionalSLM750-C7CFrequency band:LTE-FDD: B1/B3/B5/B8/(B28)LTE-TDD: B38/B39/B40/B41WCDMA: B1/B8 TD-SCDMA: B34/B39CDMA&EVDO: BC0 GSM: 900/1800Diversity reception:not supportGNSS：not supportPCM / Analog voice:Support / optionalSLM750-C1A（Support LTE Cat 1）Frequency band：LTE-FDD: B1/B3/B5/B8 LTE-TDD: B41Diversity reception ：optionalGNSS：optionalPCM / Analog voice:not supportSLM750-TEFrequency band ：LTE-FDD: B1/B3/B5/B7/B8/B20LTE-TDD: B40WCDMA: B1/B5/B8GSM: 850/900/1800/1900Diversity reception ：supportGNSS：optionalPCM / Analog voice:Support / optionalSLM750-TAUFrequency band ：LTE-FDD: B1/B3/B5/B7/B8/B28LTE-TDD: B40WCDMA: B1/B5/B8GSM: 850/900/1800/1900Diversity reception ：supportGNSS：optionalPCM / Analog voice:Support / optionalSLM750-TAFrequency band ：LTE-FDD:B2/B4/B5/B12/B13/B17/B25/B26LTE-TDD:B41WCDMA:B2/B4/B5CDMA&EVDO:BC0/BC1GSM:850/1900Diversity reception ：supportGNSS：optionalPCM / Analog voice:Support / optionalSLM750-TSAFrequency band ：LTE-FDD:B2/B4/B5/B7/B8/B28LTE-TDD:B40WCDMA:B2/B5/B8GSM:850/900/1800/1900Diversity reception ：supportGNSS：not supportPCM / Analog voice:not supportWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
