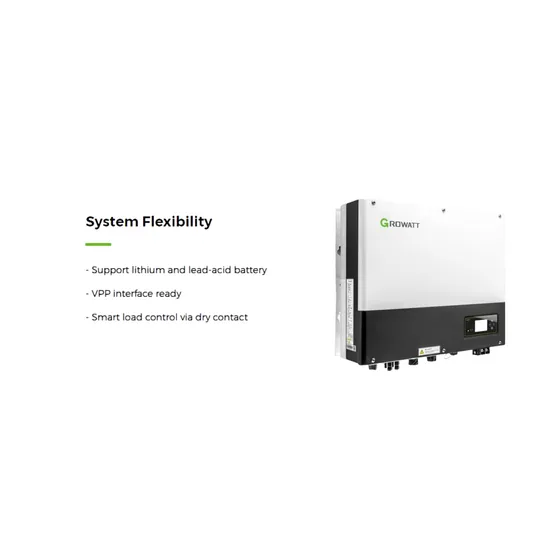

60000 Watt MPPT Solar-Renewable-Energy Growatt Hybrid Solar-Inverter
| Brand | Growatt |
| Model Number | SPH-6000-TL-BL-UP |
| Size | 56.5*45.6*18.8mm |
| Max. recommended PV power | 6000W |
| Max. DC voltage | 550V |
| Start voltage | 120V |
| Nominal voltage | 360V |
| Battery voltage range | 42V-59V |
| No. of MPP trackers | 2 |
| No. of PV strings per MPP tracker | 1 |
| Max. input current per MPP tracker | 13.5A |
| Max. short-circuit current per MPP tracker | 16.9A |
| AC nominal power | 6000W |
| Max. AC apparent power | 6000VA |
| Nominal AC voltage | 230V (180-280V) |
| AC grid frequency | 50/60 Hz (45-55Hz/55-65 Hz) |
| Max. output current | 27.2A |
| Adjustable power factor | 0.8leading…0.8lagging |
| THDi | <3% |
| AC grid connection type | Single phase |
| Max.efficiency | 98.4% |
| European efficiency | 97.5% |
| MPPT efficiency | 99.9% |
| DC reverse polarity protection | yes |
| DC switch | yes |
| AC/DC surge protection | Type III / Type II |
| Insulation resistance monitoring | yes |
| AC short-circuit protection | yes |
| Ground fault monitoring | yes |
| Grid monitoring | yes |
| Anti-islanding protection | yes |
| Residual-current monitoring unit | yes |
| AFCI protection | Optional |
