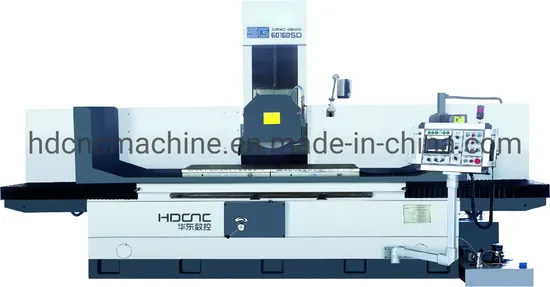

Huadong CNC High Quality Column Moving Surface Grinder Grinding Machine

Product Description

1.Machine Features I.Column moving screw and grinding head lifting screw adopt Taiwan precision screw and driven by servo motor
II.The grinding head body is a box struture,with a sleeve into the spindle,the spindle is a special dynamic and static spindle.good stabilty and high grinding accuracy.customers can also choose to bearing type spindle.
III.the working table is hydraulically driven with stepless speed .
IV.the control panel is easy to set parameters,it is with MPG,convenient to control the grinding wheel to the workpiece.
2.Details parameters

SG series parameters
Specifications		SG60160SD	SG60220SD	SG80160SD	SG80220SD	SG80300SD	SG110300SD
table size(W*L)	mm	610*1600	610*2200	810*1600	810*2200	810*3000	1100*3000
Max.grinding size	mm	610*1600	610*2200	810*1600	810*2200	810*3000	1100*3000
Max. transverse travel	mm	238	275	340	450	340	450
Max. distance from spindle center to table	mm	820/1050					1050
magnetic chuck size	mm	600*800*2	600*1000*2	800*800*2	800*1000*2	800*1000*3	1100*1000*3
Longitudinal feed	m/min	5-25
worktable transverse movement
Auto feed	mm/t	1-30
rapid speed	m/min	0.05-2
handwheel feed	mm/div.	0.005(0.002)
wheelhead vertical movement
Auto feed	mm/t	0.005-0.05
rapid speed	m/min	0.05-2
handwheel feed	mm/div.	0.005(0.001)
wheel Speed	Rpm	960
wheel size	mm	500*75*305					450*100*203
Spindle motor	Kw	18.5
Max. table load (include chuck)	Kg	1230	1690	1630	2240	3060	3200
Gross weight	Kg	8500	9500	10000	11500	14000	18000

3.Standard accessories
4.Optional accessories you can choose
5.Company honors

6.Top view of surface grinder workshop
7. Advantages
1.Factory direct sales, product quality and after-sale can be effectively guaranteed
2.Big listed company who has more than 50 years manufacture experience,more than 30 years international trade experiences.
3.we have been cooperating with many companies abroad,such as KNUTH ,OPTIMUM in Germany,BERNARDO in Austria,MSC, GRIZZLY in USA and some other companies.The quality of our machines has gotten good reputation from them
8.After-sale services
I. During the warranty period of the machine tool due to design, manufacturing, quality of parts and other reasons caused by the fault, free treatment or replacement of new parts.
II. After the warranty period, lifelong paid maintenance and service will be provided.technical support forever.
III. Provide spare parts and spare parts at preferential prices for a long time.
IV.the warranty is one year after machine out of our company.
9.Exhibitions

---
