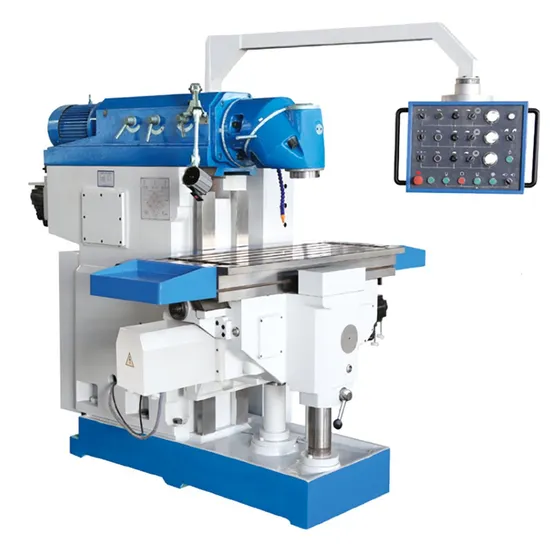

X5746 RAM Milling Machine CNC Machine Is Optional

US$5,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
X5746
Automatic Grade
Automatic
Precision
High Precision
Certification
GS
Condition
New
Transport Package
Woodencase
Origin
China
Production Capacity
1000pieces/Year

Product Description

Product Description
It can mill any angle surface through front half-sphere by swivelling milling head Table 3 axes with ball screws, high precision
Table feeding with 3 separate servo motors, variable speeds, not interfere each other,high reliability,easy to operate
Mechanical change speeds in headstock, powerful milling
Table with an extra supporting column, big load, high accuracy
CNC machine is optional
Product Parameters
Specification Unit X5746
Table size mm 460x1235
T-slots(NO./width/pitch) mm 5/18/80
Table travel (X/Y/Z) mm 900/650/450
Swivel angle of milling head 360°
Spindle taper ISO40
Spindle speed range r.p.m (27) 30-2050
Table feed(X/Y/Z) mm/min 10-1000/10-1000/6-640
Table rapid speed 2200/2200/1100
Distance between spindle nose and table surface mm 58-508
Distance from spindle center line to column mm 20-670
Main motor power Kw 5.5
Feed motor Kw AC servo motor X/Y: 18NM; Z: 27NM
Max load Kg 800
Overall size mm 2570x2035x1990
weight kg 3600

It can mill any angle surface through front half-sphere by swivelling milling head Table 3 axes with ball screws, high precision
Table feeding with 3 separate servo motors, variable speeds, not interfere each other,high reliability,easy to operate
Mechanical change speeds in headstock, powerful milling
Table with an extra supporting column, big load, high accuracy
