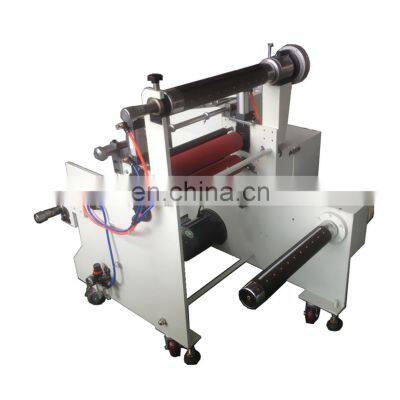

PVC Plastic Film Adhesive Tape Paper Laminating machine

Product Description

Product Description
PVC Plastic Film Adhesive Tape Paper Laminating machine Application:This machine is used for laminating industrial tape,electronic material,protective film,copper foil,aluminum foil,OPP,PP,PE,PVC,PET PE,EVA,paper,cloth.etc. Functional Characteristics:1,3" inflatable shaft to unwind and rewind,1 set laminating roller.2.Magnetic powder brake control the unwind tension and clutch control the rewind tension.3.Frequency conversion is used for speed regulation of the main motor.4.The cylinder control the rubber roller up and down,more convenient for the adjustment of pressure.5.Automatic meter counting,stable laminating,fast,high precision,low wastage,and easy operation.6.Optional:1.Unwind rectification system to keep the unwind material in line.2.Slitting function.3.Hot laminating function.4.can make as your requirements. Specification:ModelDP-420DP-650Max feeding width420mm 650mmUnwinding diameter400mm400mmRewinding diameter450mm450mmShaft diameter 3inch3inchPrecision±0.3mm±0.3mmTotal power1.5kw2.2kw Configuration:Unwinding shaft : 3 inch inflatable shaft 2 pcsRewinding shaft : 3 inch inflatable shaft 1 pcsMagnetic brakes : 2 set Magnetic clutch : 1 setLaminating motor: 1set Laminating roller : 2 (PU material)Air cylinder : 2 pcs With unwind rectification:Laminate three layers:Laminate two layers and rewind liner function:

---
