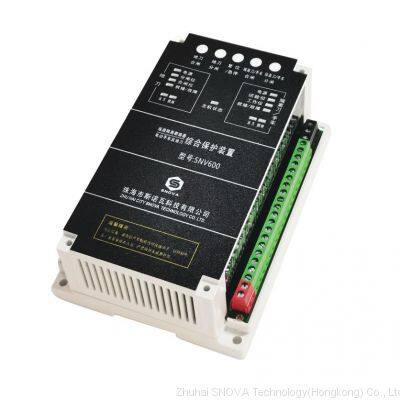

Electric Handcart and Ground Knife Integrated Protector

Product Details

Product Description

Product Description
Product Description
Electric Handcart and Ground Knife Integrated Protector,It is a new type of integrated control device.It’s developed based on KYN 88 type and KYN 28 switchgear of high voltage power system. It realizes the functions of electric on off brake, one-key operation and one-key start for the longitudinal rotary isolation vacuum circuit breaker or handcart.It meet the technical requirements of the State Grid standard.And the longitudinal rotation isolation circuit breaker, handcart, ground knife in the whole electric operation process, the millisecond level of intelligent measurement and control and protection,Avoid the damage to the whole set of switchgear caused by motor clogging or idling failure.This device can be applied to KYN 88 cabinet and KYN 28 cabinet.The series of products are widely used in electric power,chemical industry ,railway,mining,metallurgy,cement and many other industry. It’s very important to the smart power grid and power safety.
Product Function
1. The working power supply adopts the wide voltage input design，AC/DC48 -240V；
2. With a dual-motor independent power supply design，it can meet the needs of different applicant sites；
3. With a motor working power supply,It can indicate independently When power on ；
4. Provide linkage protection for the position state of the isolation knife (handcart) and the ground knife,Avoid accident caused by operational errors；
5. The product has blocking and overflow protection.
6. Product has idling timeout protection
7. With remote and local operation function,it can realize smart grid remote control;
8. With the programmable function, users can make different parameter configuration according to different applications.
Technical parameter
1.Operating environment
Temperature:-10℃～+55℃（regular work）
Humidify: ≤95%
Atmospheric pressure:80～110KPa ,Sea level ≤ 2500 meters
2.working power supply
2.1 Unit working power supply: AC/DC 220V，DC110V；40-70Hz
Power consumption ≤ 10W ; Power drop: 200ms ,
Isolation and pressure resistance:3KV
2.2 Isolation knife power input:AC/DC 110-240v.
Motor voltage type:DC permanent magnet motor.
(Note:Isolation knife power input voltage must be the same as motor voltage of isolate knife )
2.3 Ground knife power input;AC/DC 110-240v.
Motor voltage type:DC permanent magnet motor.
(Note:Ground knife power input voltage must be the same as motor voltage of ground knife )
3.Insulating property
l Electrical resistance strength: greater than AC2000V between housing and terminal.
l Insulating property:greater than 100ΜΩ between housing and terminal.
l Anti-interference:suitable for GB/T17626.8-1998 standard.
l Seismic resistance: 10～55～10Hz 2g 1min.
External size
155*110*60mm
Adapt to:C45 guide rail installation
