US$1,200.00-1,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Structure
Radial Drilling Machine
Controlling Mode
Artificial
Certification
CE, ISO 9001
Name
Radial Drilling Machine
Max Drilling Dia(Steel/Iron)(mm)
31.5mm
Distance Between Spindle to Column(mm)
300-700mm
Distance Between Spindle to Base(mm)
275-680mm
Spindle Speed(6steps)(R/Min)
100-1600rpm
Max Tapping Capacity
20mm
Spindle Feed
0.08/0.14/0.23mm/R
Main Motor(Kw)
0.75/1.1kw
Transport Package
Wood Case/Plywood Case
Specification
CE, ISO9001
Production Capacity
100sets/Month
Product Description

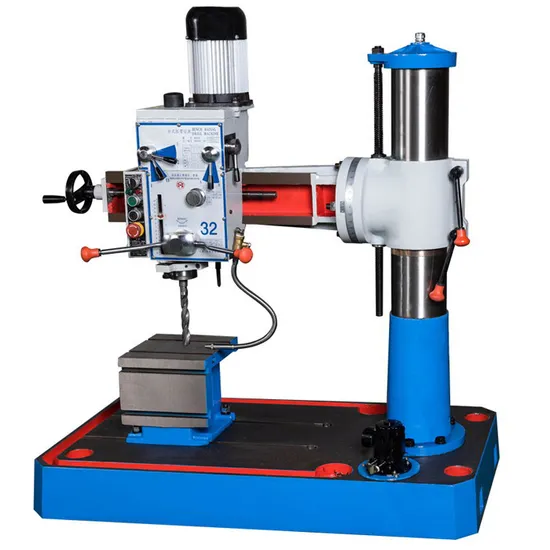

Universal small arm drilling machine Radial Drilling Machine Z3032x7
Main features: With hydraulic presetting speed shift mechanism to save auxiliary time. Spindle box, rocker arm, inner and outer posts are reliably clamped by hydraulic diamond clamping mechanism. 3. Spindle with auto-feeding with 3 steps
4. With Rotary arm. tilted ±45°, it reliable and easy job can be done.
5. With wide range of speed, with manual-power feed. The feed of machines are very easily
engaged and disengaged at any time.
Standard Accessories:
1.Drill chuck
2.Taper Sleeve
3.Arbor
4.Drift
5.Box shape worktable
Optional Accessories
1.Stand
2.Vice
3.Safety guard
| Model | Z3032X7/ Z3032×7P |
| Max. Drilling capacity(mm) | 32 |
| Max. Tapping capacity(mm) | Cost lron20 Steel16 |
| Distance spindle axis to column generating line | 300~700 |
| Diameter of column(mm) | 150 |
| Spindle taper | MT3 |
| Spindle travel | 150 |
| Spindle speeds range(mm) | 100~1600 |
| Spindle speeds series | 8 |
| Spindle feeds(r/min) | 0.08,0.14,0.23 |
| Rotary angle of rocker in hirizontal plane( °) | 360 |
| Distance between spindle nose to working surface of base(mm) | 275~680 |
| Dimension of worktable(mm) | 250×250×250 |
| Diameter of base(mm) | 1050×550×120/1200×625×255 |
| Overall size(mm) | 1235×550×1195/1235×625×1230 |
| Motor(w) | 750 or 1100 |
| G.W./N.W.(Kg) | 475/380, 675/580 |
| Packing dimension(cm) | 123×62×124 / 127×69×138 |
>>
