ZJY265A-11BH-B5A2 11KW Power Spindle Servo Motor

Product Description

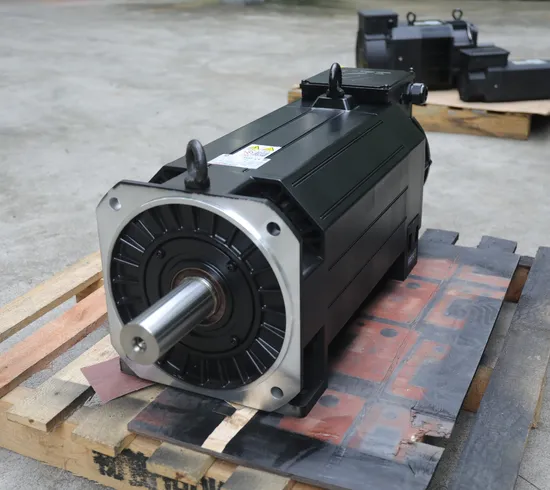

GSK ZJY265A-11BH-B5A2 11KW Power Spindle Servo Motor
mechanical characteristics curve of the motor
Product DescriptionGSK ZJY series spindle servo motor
Models Numbers
General motor catalogue:https://gskcnc.en.made-in-china.com/product-group/DeSAQilbgLhz/Servo-motor-catalog-1.html

SR.NO	Meaning
(1)	The spindle servo motor
(2)	Flange size ( 182, 208, 265, 320 )
(3)	Design sequence number (None: Original A, B,C... : design sequence number)
(4)	Rated power (Unit:KW)
(5)	Rated speed (V: 600 r/min, W: 750 r/min, A: 1000 r/min, B:1500 r/min, C: 2000 r/min, E: 3000 r/min )
(6)	Max. speed (G: 15000 r/min,F: 12000 r/min, H:10000 r/min, M:7000 r/min, L:4500 r/min )
(7)	D:Dual-Speed type
(8)	Structure installation type: (B5 flange installation, B3 footing installation, B35 flange & footing installation )
(9)	Encoder type (None: Incremental 1024 p/r, A2: Incremental 5000 p/r, A5: Absolute 21 bit )
(10)	Look the terminal box position in view from the shaft end (None: on the top, R: on the right, L: on the left).
(11)	Shaft end (None: strainht shaft , Y1: with the standard key slot)
(12)	Customer special order numbers are bracketed in two capitals.
(13)	Power supply voltage (none: three-phase 380~440V, L: three-phase 220V)

Product Parameters The main technical parameters of three-phase 380V/440V spindle motor and its overall dimension(List 1-1)

Model		ZJY182A-3.7BL	ZJY182A-5.5BL	ZJY182A-1.5BH	ZJY182A-2.2BH	ZJY182A-3.7BH	ZJY182A-5.5BH	ZJY182A-3.7EG	ZJY182A-5.5EG	ZJY182A-7.5EG
Item
Rated power(kW)		3.7	5.5	1.5	2.2	3.7	5.5	3.7	5.5	7.5
Adaptive driver		GS/GR3050	GS/GR3050	GS/GR3048	GS/GR3048	GS/GR3050	GS/GR3075	GS/GR3050	GS/GR3075	GS/GR3100
Drive power supply(V)		Three-phase AC 380/440V 50/60Hz
Rated current(A)		10.4	13.8	7.3	7.5	15.5	17.3	11.6	16.6	20.2
Rated		53.7	53.5	53.9	53.6	53.1	53.5	103.2	103.3	103.2
frequency(Hz)
Rated torque(N·m)		24	35	9.5	14	24	35	11.8	17.5	24
30min power(kW)		5.5	7.5	2.2	3.7	5.5	7.5	5.5	7.5	11
30min current(A)		14.8	18	9.3	11	19.6	21.8	15.4	20.7	26.6
30min torque(N·m)		35	48	14	24	35	48	17.5	24	35
Rated speed(r/min)		1500	1500	1500	1500	1500	1500	3000	3000	3000
Constant power range(r/min)		1500~4500	1500~4500	1500~8000	1500~8000	1500~8000	1500~8000	3000~12000	3000~12000	3000-12000
Max. speed(r/min)		4500	4500	10000	10000	10000	10000	15000	15000	15000
Moment of inertia(kg·m2)		0.0068	0.0102	0.004	0.0054	0.0083	0.0102	0.0054	0.0068	0.0083
Weight(kg)		37	52	27	32	43	52	32	37	43
Installation type		IM B5 or B35
Cooling fan power supply		Three-phase AC 380~440V 50/60Hz 37W 0.1A
Overall dimension (refer to figures)	A	182	182	182	182	182	182	182	182	182
	B	91	91	91	91	91	91	91	91	91
	C	123	123	123	123	123	123	123	123	123
	D	185	185	185	185	185	185	185	185	185
	E	60	60	60	60	60	60	60	60	60
	F	371	436	319	346	401	436	346	371	401
	G	249	314	197	224	279	314	224	249	279
	H	150h7	150h7	150h7	150h7	150h7	150h7	150h7	150h7	150h7
	I	12	12	12	12	12	12	12	12	12
	J	28h6	28h6	28h6	28h6	28h6	28h6	28h6	28h6	28h6
	K	158	158	158	158	158	158	158	158	158
	L	93	93	93	93	93	93	93	93	93
	N	156	156	156	156	156	156	156	156	156
	P	32	32	32	32	32	32	32	32	32
	Q	184	249	132	159	214	249	159	184	214
	S	60	60	60	60	60	60	60	60	60
	T	4	4	4	4	4	4	4	4	4
	Z	12	12	12	12	12	12	12	12	12

The main technical parameters of three-phase 380V/440V spindle motor and its overall dimension(List 1-2)

Model		ZJY208A-3.7WL	ZJY208A-2.2AM	ZJY208A-3.7AM	ZJY208A-5.5AM	ZJY208A-5.5BL	ZJY208A-7.5BL	ZJY208A-9BL	ZJY208A-3.7BM
Item
Rated power(kW)		3.7	2.2	3.7	5.5	5.5	7.5	9	3.7
Adaptive driver		GS/GR3050	GS/GR3048	GS/GR3050	GS/GR3075	GS/GR3075	GS/GR3075	GS/GR3100	GS/GR3050
Drive power supply(V)		Three-phase AC 380/440V 50/60Hz
Rated current(A)		11.3	6.7	10.2	16.3	12.9	17.9	21.6	8.6
Rated		27.3	35.7	35.7	35.7	53.3	52.9	52.6	52.9
frequency(Hz)
Rated torque(N·m)		47	21	35	53	35	48	57.3	24
30min power(kW)		5.5	3.7	5.5	7.5	7.5	11	12	5.5
30min current(A)		16	10.6	14.2	20.5	16.8	24	27.2	12.7
30min torque(N·m)		70	35	53	72	48	70	76.4	35
Rated speed(r/min)		750	1000	1000	1000	1500	1500	1500	1500
Constant power range(r/min)		750~3500	1000~4000	1000~4000	1000~4000	1500~4500	1500~4500	1500~4500	1500-5000
Max. speed(r/min)		4500	7000	7000	7000	4500	4500	4500	7000
Moment of inertia(kg·m2)		0.025	0.0142	0.0196	0.025	0.0143	0.0196	0.0256	0.0142
Weight(kg)		77	51	66	77	51.5	66	77.5	51
Installation type		IM B5 or B35
Cooling fan power supply		Three-phase AC 380~440V 50/60Hz 40W 0.14A
Overall dimension (refer to figures)	A	208	208	208	208	208	208	208	208
	B	104	104	104	104	104	104	104	104
	C	160	160	160	160	160	160	160	160
	D	215	215	215	215	215	215	215	215
	E	80	80	80	80	80	80	80	80
	F	524	414	469	524	414	469	524	414
	G	395	285	340	395	285	340	395	285
	H	180h7	180h7	180h7	180h7	180h7	180h7	180h7	180h7
	I	14	14	14	14	14	14	14	14
	J	38h6	28h6	38h6	38h6	38h6	38h6	48h6	28h6
	K	212	212	212	212	212	212	212	212
	L	106	106	106	106	106	106	106	106
	N	180	180	180	180	180	180	180	180
	P	40	40	40	40	40	40	40	40
	Q	320	210	265	320	210	265	320	210
	S	80	60	80	80	80	80	110	60
	T	5	5	5	5	5	5	5	5
	Z	12	12	12	12	12	12	12	12

The main technical parameters of three-phase 380V/440V spindle motor and its overall dimension(List 1-3)

Model		ZJY208A-5.5BM	ZJY208A-7.5BM	ZJY208A-2.2BH	ZJY208A-3.7BH	ZJY208A-5.5BH	ZJY208A-7.5BH	ZJY208A-11CM	ZJY208A-11CH
Item
Rated power(kW)		5.5	7.5	2.2	3.7	5.5	7.5	11	11
Adaptive driver		GS/GR3050	GS/GR3075	GS/GR3048	GS/GR3050	GS/GR3075	GS/GR3100	GS/GR3100	GS/GR3100
Drive power supply(V)		Three-phase AC 380/440V 50/60Hz
Rated current(A)		13	17	8.9	12.6	18.4	22.4	28.3	28.3
Rated		52.4	52.7	52.6	52.5	52.4	52.6	69.1	69
frequency(Hz)
Rated torque(N·m)		35	48	14	24	35	48	52.6	52.5
30min power(kW)		7.5	11	3.7	5.5	7.5	11	15	15
30min current(A)		16.9	24.6	13.8	18	24	32.2	37	37
30min torque(N·m)		48	70	24	35	48	70	71.6	71.6
Rated speed(r/min)		1500	1500	1500	1500	1500	1500	2000	2000
Constant power range(r/min)		1500~5000	1500~5000	1500~5000	1500~5000	1500~8000	1500~8000	2000~7000	2000-8000
Max. speed(r/min)		7000	7000	10000	10000	10000	10000	7000	10000
Moment of inertia(kg·m2)		0.0196	0.025	0.0093	0.0142	0.0196	0.025	0.0256	0.025
Weight(kg)		66	77	49	51	66	77	77.5	77
Installation type		IM B5 or B35
Cooling fan power supply		Three-phase AC 380~440V 50/60Hz 40W 0.14A
Overall dimension (refer to figures)	A	208	208	208	208	208	208	208	208
	B	104	104	104	104	104	104	104	104
	C	160	160	160	160	160	160	160	160
	D	215	215	215	215	215	215	215	215
	E	80	80	60	60	80	80	110	80
	F	469	524	364	414	469	524	524	524
	G	340	395	235	285	340	395	395	395
	H	180h7	180h7	180h7	180h7	180h7	180h7	180h7	180h7
	I	14	14	14	14	14	14	14	14
	J	38h6	38h6	28h6	28h6	38h6	38h6	48h6	38h6
	K	212	212	212	212	212	212	212	212
	L	106	106	106	106	106	106	106	106
	N	180	180	180	180	180	180	180	180
	P	40	40	40	40	40	40	40	40
	Q	265	320	160	210	265	320	320	320
	S	80	80	53	60	80	80	110	80
	T	5	5	5	5	5	5	5	5
	Z	12	12	12	12	12	12	12	12

The main technical parameters of three-phase 380V/440V spindle motor and its overall dimension(List 1-4)

Model		ZJY208A-5.5CF	ZJY208A-7.5CF	ZJY208A-11EH	ZJY208A-5.5EF	ZJY208A-7.5EF	ZJY208A-11EF	ZJY265A-5.5WL		ZJY265A-7.5WL
Item
Rated power(kW)		5.5	7.5	11	5.5	7.5	11	5.5		7.5
Adaptive driver		GS/GR3075	GS/GR3100	GS/GR3100	GS/GR3050	GS/GR3075	GS/GR3100	GS/GR3075		GS/GR3100
Drive power supply(V)		Three-phase AC 380/440V 50/60Hz
Rated current(A)		19	25.8	25.2	12.8	17.7	25.2	16.3		21.4
Rated		69	69	102.2	102.9	102.2	102.2	26.6		26.7
frequency(Hz)
Rated torque(N·m)		26.3	35.8	35	17.5	24	35	70		95.5
30min power(kW)		7.5	11	15	7.5	11	15	7.5		11
30min current(A)		24	34.9	31.6	16	23.3	31.7	20.8		30.1
30min torque(N·m)		35.8	52.5	48	24	35	48	95.5		140
Rated speed(r/min)		2000	2000	3000	3000	3000	3000	750		750
Constant power range(r/min)		2000~10000	2000~10000	3000~9000	3000~10000	3000~10000	3000~10000	750~3500		750-3500
Max. speed(r/min)		12000	12000	10000	12000	12000	12000	4500		4500
Moment of inertia(kg·m2)		0.0142	0.0196	0.0196	0.0093	0.0142	0.0196	0.0606		0.0743
Weight(kg)		51	66	66	49	51	66	107		125
Installation type		IM B5 or B35						IM B5 or B3
Cooling fan power supply		Three-phase AC 380~440V 50/60Hz 40W 0.14A						Three-phase AC 380~440V 50/60Hz 70W 0.21A
Overall dimension (refer to figures)	A	208	208	208	208	208	208	265		265
	B	104	104	104	104	104	104	132		132
	C	160	160	160	160	160	160	185		185
	D	215	215	215	215	215	215	265		265
	E	60	80	80	60	60	80	110		110
	F	414	469	469	364	414	469	487		533
	G	285	340	340	235	285	340	347		392
	H	180h7	180h7	180h7	180h7	180h7	180h7	230h7		230h7
	I	14	14	14	14	14	14	14		14
	J	28h6	38h6	38h6	28h6	28h6	38h6	48h6		48h6
	K	212	212	212	212	212	212	256		256
	L	106	106	106	106	106	106	135		135
	N	180	180	180	180	180	180	230		230
	P	40	40	40	40	40	40	40		40
	Q	210	265	265	160	210	265	270		315
	S	60	80	80	60	60	80	110		110
	T	5	5	5	5	5	5	5		5
	Z	12	12	12	12	12	12	15		15

The main technical parameters of three-phase 380V/440V spindle motor and its overall dimension(List 1-5)

Model		ZJY265A-11WL	ZJY265A-7.5AM	ZJY265A-11AM	ZJY265A-15AM	ZJY265A-7.5BM	ZJY265A-11BM	ZJY265A-15BM	ZJY265A-18.5BM	ZJY265A-22BM
Item
Rated power(kW)		11	7.5	11	15	7.5	11	15	18.5	22
Adaptive driver		GS/GR3148	GS/GR3100	GS/GR3148	GS/GR3150	GS/GR3075	GS/GR3100	GS/GR3150	GS/GR3150	GS/GR3198
Drive power supply(V)		Three-phase AC 380/440V 50/60Hz
Rated current(A)		30	21.5	30.9	48.3	18	26	35	48.7	58
Rated		27.2	35.2	35.2	35.1	52.3	52.2	51.9	51.8	51.7
frequency(Hz)
Rated torque(N·m)		140	72	105	143	48	70	95	118	140
30min power(kW)		15	11	15	18.5	11	15	18.5	22	30
30min current(A)		41	29	40.2	56	26	34	42	54.7	73
30min torque(N·m)		191	105	143	177	70	95	118	140	191
Rated speed(r/min)		750	1000	1000	1000	1500	1500	1500	1500	1500
Constant power range(r/min)		750~3500	1000~4000	1000~4000	1000~4000	1500~5000	1500~5000	1500~5000	1500~5000	1500-5000
Max. speed(r/min)		4500	7000	7000	7000	7000	7000	7000	7000	7000
Moment of inertia(kg·m2)		0.0888	0.0464	0.0734	0.0869	0.0464	0.0599	0.0734	0.0878	0.1043
Weight(kg)		143	89	125	143	89	107	125	143	162
Installation type		IM B5 or B35
Cooling fan power supply		Three-phase AC 380~440V 50/60Hz 70W 0.21A
Overall dimension (refer to figures)	A	265	265	265	265	265	265	265	265	265
	B	132	132	132	132	132	132	132	132	132
	C	185	185	185	185	185	185	185	185	185
	D	265	265	265	265	265	265	265	265	265
	E	110	110	110	110	110	110	110	110	110
	F	577	442	532	577	442	487	532	577	632
	G	437	302	392	437	302	347	392	437	492
	H	230h7	230h7	230h7	230h7	230h7	230h7	230h7	230h7	230h7
	I	14	14	14	14	14	14	14	14	14
	J	55h6	48h6	48h6	48h6	48h6	48h6	48h6	55h6	55h6
	K	256	256	256	256	256	256	256	256	256
	L	135	135	135	135	135	135	135	135	135
	N	230	230	230	230	230	230	230	230	230
	P	40	40	40	40	40	40	40	40	40
	Q	360	225	315	360	225	270	315	360	415
	S	110	110	110	110	110	110	110	110	110
	T	5	5	5	5	5	5	5	5	5
	Z	15	15	15	15	15	15	15	15	15

The main technical parameters of three-phase 380V/440V spindle motor and its overall dimension(List 1-6)

Model		ZJY265A-7.5BH	ZJY265A-11BH	ZJY265A-15BH	ZJY320A-18.5WL	ZJY320A-22WL	ZJY320A-30BL	ZJY320A-37BL	ZJY320A-45BL
Item
Rated power(kW)		7.5	11	15	18.5	22	30	37	45
Adaptive driver		GS/GR3100	GS/GR3148	GS/GR3150	GS/GR3198	GS/GR3198	GS/GR3300	GS/GR3300	GS/GR3300
Drive power supply(V)		Three-phase AC 380/440V 50/60Hz
Rated current(A)		21	30	40.7	51	58	69	87	100
Rated		51.7	51.7	51.7	26.1	26	51.2	51.1	51.1
frequency(Hz)
Rated torque(N·m)		48	70	95	235	280	191	235	286
30min power(kW)		11	15	18.5	22	30	37	45	55
30min current(A)		28.5	38.3	42.7	59	73	83	102	115
30min torque(N·m)		70	95	118	280	381	235	286	352
Rated speed(r/min)		1500	1500	1500	750	750	1500	1500	1500
Constant power range(r/min)		1500~8000	1500~8000	1500~8000	750~3500	750~3500	1500~4500	1500~4500	1500~4500
Max. speed(r/min)		10000	10000	10000	4500	4500	4500	4500	4500
Moment of inertia(kg·m2)		0.0464	0.0599	0.0734	0.2997	0.345	0.24	0.2997	0.348
Weight(kg)		89	107	125	249	285	208	249	293
Installation type		IM B5 or B3			IM B35
Cooling fan power supply		Three-phase AC 380~440V 50/60Hz 70W 0.21A			Three-phase AC 380~440V 50/60Hz 60W 0.22A
Overall dimension (refer to figures)	A	265	265	265	320	320	320	320	320
	B	132	132	132	\	\	\	\	\
	C	185	185	185	193	193	193	193	193
	D	265	265	265	350	350	350	350	350
	E	110	110	110	140	140	140	140	140
	F	442	487	532	715	765	645	715	785
	G	302	347	392	450	500	380	450	520
	H	230h7	230h7	230h7	300h7	300h7	300h7	300h7	300h7
	I	14	14	14	19	19	19	19	19
	J	48h6	48h6	48h6	60h6	60h6	60h6	60h6	60h6
	K	256	256	256	\	\	\	\	\
	L	135	135	135	165	165	165	165	165
	N	230	230	230	279	279	279	279	279
	P	40	40	40	50	50	50	50	50
	Q	225	270	315	529	579	459	529	599
	S	110	110	110	\	\	\	\	\
	T	5	5	5	5	5	5	5	5
	Z	15	15	15	19	19	19	19	19

The main technical parameters of three-phase 220V spindle motor and its overall dimension(List 2-1)

Model		ZJY182A-3.7BL	ZJY182A-5.5BL	ZJY182A-1.5BH	ZJY182A-2.2BH	ZJY182A-3.7BH	ZJY182A-5.5BH	ZJY182A-3.7EG	ZJY182A-5.5EG	ZJY182A-7.5EG
Item
Rated power(kW)		3.7	5.5	1.5	2.2	3.7	5.5	3.7	5.5	7.5
Adaptive driver		GS/GR2075	GS/GR2100	GS/GR2050	GS/GR2050	GS/GR2100	GS/GR2100	GS/GR2100	GS/GR2100	GS/GR2148
Drive power supply(V)		Three-phase AC 220V 50/60Hz
Rated current(A)		17.9	23.9	10.7	12.9	23.5	30	20	28.8	35
Rated		53.7	53.5	53.9	53.6	53.1	53.5	103.2	103.3	103.2
frequency(Hz)
Rated torque(N·m)		24	35	9.5	14	24	35	11.8	17.5	24
30min power(kW)		5.5	7.5	2.2	3.7	5.5	7.5	5.5	7.5	11
30min current(A)		25.2	31.1	17.6	20	36.4	40.7	26.7	35.8	47.3
30min torque(N·m)		35	48	14	24	35	48	17.5	24	35
Rated speed(r/min)		1500	1500	1500	1500	1500	1500	3000	3000	3000
Constant power range(r/min)		1500-4500	1500-4500	1500~8000	1500~8000	1500~8000	1500~8000	3000~12000	3000~12000	3000~12000
Max. speed(r/min)		4500	4500	10000	10000	10000	10000	15000	15000	15000
Moment of inertia(kg·m2)		0.0068	0.0102	0.004	0.0054	0.0083	0.0102	0.0054	0.0068	0.0083
Weight(kg)		37	52	27	32	43	52	32	37	43
Installation type		IM B5 or B35
Cooling fan power supply		Three-phase AC 220V 50/60Hz 37W 0.1A
Overall dimension (refer to figures)	A	182	182	182	182	182	182	182	182	182
	B	91	91	91	91	91	91	91	91	91
	C	123	123	123	123	123	123	123	123	123
	D	185	185	185	185	185	185	185	185	185
	E	60	60	60	60	60	60	60	60	60
	F	371	436	319	346	401	436	346	371	401
	G	249	314	197	224	279	314	224	249	279
	H	150h7	150h7	150h7	150h7	150h7	150h7	150h7	150h7	150h7
	I	12	12	12	12	12	12	12	12	12
	J	28h6	28h6	28h6	28h6	28h6	28h6	28h6	28h6	28h6
	K	184	184	158	158	158	158	158	158	158
	L	93	93	93	93	93	93	93	93	93
	N	156	156	156	156	156	156	156	156	156
	P	32	32	32	32	32	32	32	32	32
	Q	184	249	132	159	214	249	159	184	214
	S	60	60	60	60	60	60	60	60	60
	T	4	4	4	4	4	4	4	4	4
	Z	12	12	12	12	12	12	12	12	12

The main technical parameters of three-phase 220V spindle motor and its overall dimension(List 2-2)

Model		ZJY208A-3.7WL	ZJY208A-2.2AM	ZJY208A-3.7AM	ZJY208A-5.5AM	ZJY208A-5.5BL	ZJY208A-7.5BL	ZJY208A-9BL	ZJY208A-3.7BM
Item
Rated power(kW)		3.7	2.2	3.7	5.5	5.5	7.5	9	3.7
Adaptive driver		GS/GR2075	GS/GR2050	GS/GR2075	GS/GR2100	GS/GR2100	GS/GR2100	GS/GR2148	GS/GR2075
Drive power supply(V)		Three-phase AC 220V 50/60Hz
Rated current(A)		19.6	11.6	17.7	28.2	22.4	31	37.5	14.9
Rated		27.3	35.7	35.7	35.7	53.3	52.9	52.6	52.9
frequency(Hz)
Rated torque(N·m)		47	21	35	53	35	48	57.3	24
30min power(kW)		5.5	3.7	5.5	7.5	7.5	11	12	5.5
30min current(A)		27.3	18.4	24.6	35.5	28	41.3	46.2	22
30min torque(N·m)		70	35	53	72	48	70	76.4	35
Rated speed(r/min)		750	1000	1000	1000	1500	1500	1500	1500
Constant power range(r/min)		750-3500	1000-4000	1000~4000	1000~4000	1500~4500	1500~4500	1500~4500	1500~5000
Max. speed(r/min)		4500	7000	7000	7000	4500	4500	4500	7000
Moment of inertia(kg·m2)		0.025	0.0142	0.0196	0.025	0.0143	0.0196	0.025	0.0142
Weight(kg)		77	51	66	77	51.5	66	77.5	51
Installation type		IM B5 or B35
Cooling fan power supply		Three-phase AC 220V 50/60Hz 40W 0.14A
Overall dimension (refer to figures)	A	208	208	208	208	208	208	208	208
	B	104	104	104	104	104	104	104	104
	C	160	160	160	160	160	160	160	160
	D	215	215	215	215	215	215	215	215
	E	80	60	80	80	80	80	110	60
	F	524	414	469	524	414	469	524	414
	G	395	285	340	395	285	340	395	285
	H	180h7	180h7	180h7	180h7	180h7	180h7	180h7	180h7
	I	14	14	14	14	14	14	14	14
	J	38h6	28h6	38h6	38h6	38h6	38h6	48h6	28h6
	K	212	212	212	212	212	212	212	212
	L	106	106	106	106	106	106	106	106
	N	180	180	180	180	180	180	180	180
	P	40	40	40	40	40	40	40	40
	Q	320	210	265	320	210	265	320	210
	S	80	80	80	80	80	80	110	60
	T	5	5	5	5	5	5	5	5
	Z	12	12	12	12	12	12	12	12

The main technical parameters of three-phase 220V spindle motor and its overall dimension(List 2-3)
The main technical parameters of three-phase 220V spindle motor and its overall dimension(List 2-4)
The main technical parameters of three-phase 220V spindle motor and its overall dimension(List 2-5)
The main technical parameters of dual speed motor and its overall dimension(List 3)
Company Profile GSK CNC Equipment Co., Ltd.
GSK CNC Equipment Co., Ltd. (hereinafter referred as GSK) is specially devoted to conducting research and practice of basic equipment industrial development, providing "trinity" packaged solutions of machine tool CNC system, servo drive and servo motor, taking initiative in the expansion of industrial robot and all-electric injection molding machine field, developing the new marketing mode of machine tool exhibition hall, providing the customers with all-round professional machine tool remanufacturing solutions and services, promoting the integration of production and education, setting up the vocational education and training institute, as well as conducting highly skilled CNC personnel training. It has developed into a high-tech enterprise integrating science, education, industry and trade, thus being known as "China Southern CNC Industrial Base".
Adhering to the corporate philosophy of "making itself a century-old enterprise and building gold quality" and the service spirit of "keeping improvement and making users satisfied", GSK enhances the user product value & benefits through continuous technological progress and innovation, and makes unremitting efforts to promote the localization process of basic equipment industry, improve the technological level of the industry, and promote the development of China's national equipment manufacturing industry.
Main products:
GSK CNC System Idustrial robot
Full electric injection molding machine CNC machine International exhibition
Exhibition hall
218MC USB Reading Problem Solution
218MC USB Reading Problem SolutionFAQPayments1) We can accept EXW, FOB
2) Payment must be made before shipment.
3) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.
Shipping
1) We only ship to your confirmed address. Please make sure your shipping address is correct before purchase.
2) Most orders will be shipped out within 3-7 working days upon payment confirmation.
3) Shipping normally takes 7-25 working days. Most of the items will delivery in 2 weeks, while there will be a delay for something we cannot control (such as the bad weather). If it happens, just contact us, we will help you check and resolve any problem.
3) Please check the package upon receipt, if there are some damages, please contact us immediately.
Feedback & Refund
1) Feedback is important to us, if you have any problem with our products, please contact us, our technician will give you useful advises.
2) When you have the parcel and not satisfied with the goods or it is other problem, please tell us immediately, and provide us a photo showing the detail.
3) Any reason requiring for all refund. Items must be in original condition and no physical damage. Buyer responsible for all shipping cost.
If you need more information, please contact with us. We will attach great importance to your any problems.
Hope we could establish a long-term effective cooperation.

---

>> New Nice Turkey Modern Luxury Armored Steel Security Door
>> PVC Pulverizer Machine / Plastic Recycling Powder Making Machine
>> Factory OEM Custom CE FCC RoHS GS UK 5V 6V 9V 12V 24V 1A 2A 3A 4A 5A Wall Power Adapter AC DC Power Adapter Power Supply Type G for Rounter TV Box Camera
>> 100% Fluorocarbon fishing line 50m with high breaking strains Japan fiber abrasion resistant
>> Bowling Equipment High-Resolution Scoreboard Premium-Quality Bowling Balls Pinsetter Machine
>> Customized Safe Reflective Strip Strong Windproof Auto Open and Close Folding Umbrella for Night
>> Bicycle Horseshoe Shape Lock Bike U Lock Good Quality Spare Parts
>> Factory Automatic Tubular Pasteurizer Fruit Juice Beverage Milk Uht Sterilizer Machine Sterilization Line
>> Foot Mount Feeding Hopper EPS Melting Machine Crushing and Melting Loose Foam
>> Hot Fashion Modular street lighting proofing tunnel led lamp
>> 20V Cordless Lithium Hoe Cutter Machine Electric Mini Tiller
>> hay cutter and corn crush combineded machine for animal fodder
>> Cw Series Universal Horizontal Heavy Duty Big Bore Lathe Machine Cw6163b with CE
>> Terylene Fiber Hay Cutting Machine Fabrics Waste Cutting Machine
>> Hot Sale Small Mini Harvesting Machine Groundnut Peanut Pickers Price For India
>> Integrated Resin Sand Molding Line
>> Quick Mold Change Briquette Press
>> 138L Per Day Dehumidifier with Water Tank
>> Enhanced Flighted Screw Element for Optimal Material Conveyance and Mixing Efficiency
>> Excellent Quality XPE Foam Floating Water Mats Lily Pad for Pool Lake Ocean Yacht Outdoor
