11AC 1200Mbps Dual Band Wireless 4G Router

Product Description

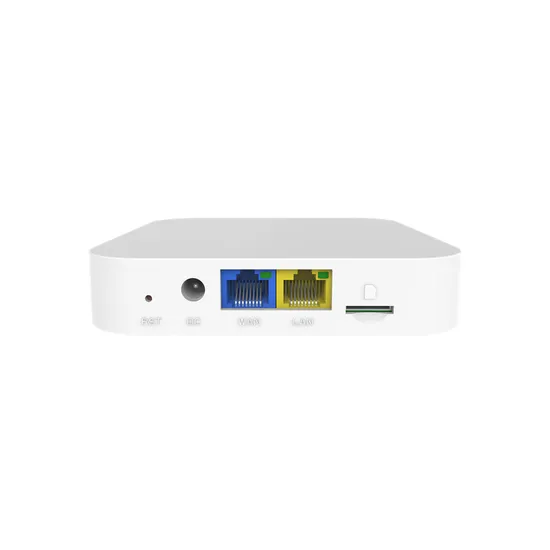

11ac 1200Mbps Dual Band Wireless 4G Router
Product Description
LTE-M310 is an 11ac standard dual band indoor 4G wireless router support VPN; Comply with IEEE 802.11ac/b/g/n MIMO standard, the data rate up to 1200Mbps, more than 80 end users can access into it; With SIM card slot, build in QUECTEL LTE module, it supports FDD-LTE/TDD-LTE for worldwide use with 150Mbps downlink speed. Besides that, there are 1*10/100Mbps WAN/LAN ports, automatically switch to WAN Ethernet if 4G network existed.


Main Features:

1. Comply with IEEE 802.11b/g/n/ac Standard, 2.4GHz and 5.8GHZ frequency, the data rate is 1200Mbps for faster Wi-Fi speed.

2. Build in 3G/4G SIM card slot, support LTE-TDD/LTE-FDD, WCDMA/CDMA and GSM networking. The band is adjustable, can comply with all operator in the world.

3. With Dual Band/4G high gain omni antenna, more wireless coverage, better signal strength and more stable performance.

4. It supports VPN (L2TP, PPTP, auto VPN), meet with industrial applications such as chain stores, ATM...

5. Firmware support cloud remote configure and management, hardware with watchdog function, device can auto-reboot and auto-recovery if have problems, no extra maintenance fee.

6. It supports SIM or eSIM, gives users more choices.


Hardware SPECS

4G Module information
LTE Module Model	Quectel EC25, LTE-CAT4, B1/B2/B3/B4/B5/B7/B8/B28@FDD, B40@TDD; B1/B2/B5/B8@WCDMA; B2/B3/B5/B8@GSM Quectel EC200, LTE-CAT4; B1/B3/B5/B8@FDD; B34/B38/B39/B40/B41@TDD;B1/B5/B8@WCDMA; B3/B8@GSM B1/B3/B7/B8/B20/B28@FDD; B38/B40/B41@TDD, B1/B8@WCDMA; B3/B8@GSM B1/B2/B3/B4/B5/B7/B8/B28/B66@TDD; B40@TDD, B1/B2/B4/B5/B8@WCDMA; B2/B3/B5/B8@GSM
Band Support	GSM/WCDMA/LTE-FDD/LTE-TDD
LTE Data Rate	LTE-FDD: max 150(DL)/Max 50(UL) ,LTE-TDD: max 130(DL)/Max 35(UL)
Name	Details
CPU	MT7628DAN+7613
FLASH	8MB
SDRAM	64MB
DC-DC	12V 0.5A
Name	Details
LAN	1*10/100MBase-T LAN, support IEEE 802.3/802.3u auto-negotiation
WAN/LAN	1*10/100MBase-T WAN/LAN, support IEEE 802.3/802.3u auto-negotiation; It is LAN port when work as 4G Router, WAN port when work as wireless router Support PPPoE, Automatic IP, Static IP, PPTP, L2TP, 4G
4G Antenna	Internal 3dBi Omni Antenna
WIFI Antenna Connector	Internal: Dual band Omni Antenna (2.4GHz 4dBi, 5GHz 6.5dBi)
SIM	Support SIM Card/ eSIM Card
RESET	Press it 10 seconds, Reset to factory default
LED Light	WAN, LAN, Wi-Fi, System
Size	114*114*22mm
2.4G RF Power	802.11b	11M	18±2dBm	1M	20±2dBm
	802.11g	54M	17±2dBm	6M	19±2dBm
	802.11n HT20	MCS7	16±2dBm	MCS0	18±2dBm
	802.11n HT40	MCS7	16±2dBm	MCS0	18±2dBm
5G RF Power	802.11a	54M	17±2dBm	6M	19±2dBm
	802.11n HT20	MCS7	16±2dBm	MCS0	18±2dBm
	802.11n HT40	MCS7	15±2dBm	MCS0	17±2dBm
	802.1ac HT80	MCS9	14±1dBm	MCS0	16±1dBm
2.4G Receive Sensitivity	802.11b	11M	-84dBm	1M	-91dBm
	802.11g	54M	-70dBm	6M	-87dBm
	802.11n HT20	MCS7	-68dBm	MCS0	-86dBm
	802.11n HT40	MCS7	-66dBm	MCS0	-85dBm
5G Receive Sensitivity	802.11a	54M	-70dBm	1M	-92dBm
	802.11n HT20	MCS7	-68dBm	6M	-90dBm
	802.11n HT40	MCS7	-66dBm	MCS0	-88dBm
	802.1ac HT80	MCS9	-56dBm	MCS0	-85dBm
2.4G EVM	802.11b: ≤-10dB ; 802.11g: ≤-25 dB ; 802.11n: ≤-28 dB
5G EVM	802.11a: ≤-25 dB ;802.11n: ≤-28 dB ;802.11ac: ≤-32 dB
PPM	±20ppm
Frequency	2.4GHz - 2.484GHz; 5150~5850MHz
Standard	802.11/b/g/n; 802.11 a/n/ac
Bandwidth	HT20/ HT40/ HT80
Security	Open System, Shared key, WPA-Personal, WPA2-Personal, WPA-Auto-Personal, WPA-Enterprise (Radius), WPA2-Enterprise (Radius), WPA-Auto-Enterprise (Radius), Radius with 802.1x
RF Power Adjustable	Support
Name	Content
Working Temperature	-30ºC ~ +55ºC
Max Working Temperature	-40ºC ~ +85ºC (Throughput some decrease)
Storage Temperature	-40ºC ~ +70ºC
Humidity	5%~95% (No Condensation)
Name	Content
Wi-Fi	Support Auto Channal, Guest SSID, SSID hide, Wireless MAC filter, white and black list
Net	PPPoE, Automatic IP, Static IP, L2TP, PPTP, 4G
	Support automatically switching between WAN/ISP and 4G
	Support VPN server and VPN client: PPTP, L2TP and OpenVPN
	Support AP + Client
Firewall	Support NAT, URL Filter, MAC Filter and Network Service Filter
	Support DoS attack protection, SYN flood attack
	WAN PING, SSH, HTTP Access
Other functions	NTP and account setup; Port forwarding,Virtual Server,Watchdog,DMZ,DDNS

---
