F21-E1 3 Motions 6 Singe Pushbuttons Crane RF Wireless Radio Remote Control

Product Description

Product Description

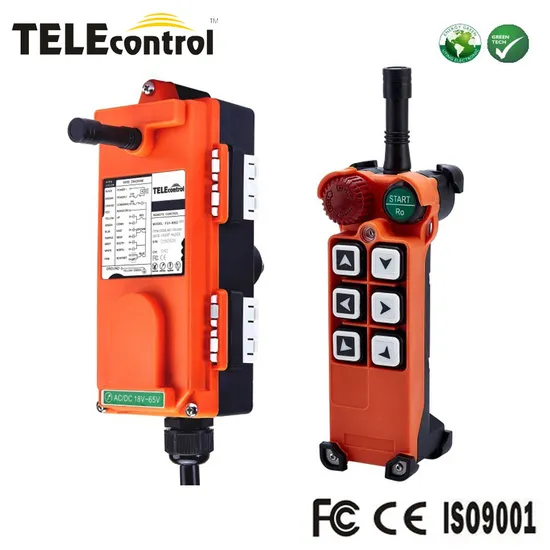

F21-E1 3 motions 6 singe pushbuttons crane RF wireless radio remote control
Note:
1. The standard configuration includes 1 transmiter and 1 receiver (1TX+1RX), and 2TX+1RX is available too, or even more transmitters work with 1 receiver
2. There are different working voltage to choose, and adopts the wide range volgae:AC/DC24-48V or 100-440V
DC12V can be customized.
An industrial wireless radio remote control system can consist of any number of remote control transmitters and wireless relay receivers working together. Multi channel units provide the flexibility for numerous functions and user selectable network. Thanks for the strong production capacity and a professional team of sophisticated engineers, it gave us the flexibility to customize our systems to meet your needs directly. We carefully listen to your application description and will specify the most cost-effective models from our product line to suit the requirements. We can even add hardware to provide a totally "turn-key" solution.
Features:
High cost-efficient, reliable and durable 8 operation buttons, 6 single speed Push buttons ,1 EMS "STOP", 1 start button, and 1 rotary switch Program the button function by computer interface(software and cable is optional) Glass-fiber PA for extra shock resistance. Wide working voltage input: AC/DC 24-48V or AC/DC 100-440V (depending on clients' need), 12VDC is available Operating distance up to 100 meters, extendable with extra antenna High level Enclosure protection class IP 65 Temperature range - 40 ° C~ + 85° C Transmitter with working power led indicator Transmitter with housing for extra shock resistance and shoulder strap cord Low cost for electronic chain, hoist/monorail Standard AA alkaline batteries(not included) Low power consumption transmitter, 2AA batteries last up to 4 months With battery voltage warning device, the power supply is cut off during low power Over 4.3 billions unique ID code available Hamming code Enhanced watch-dog circuit The series S/No. and production date are laser making of anti-counterfeit
Product Parameters

Transmitter(TX) parameters:F21-E2-TX
Material	Glass-Fiber PA
Enclosure protection class	IP65
Frequency range	UHF:425-446MHz
Receiver sensitivity	-110dBm
Transmitter power supply	4 AA alkaline batteries(not included)
Safety Code	32 bits(4.3billion)
Temperature range	-40ºC~+85ºC
Control distance	up to 100 meters
Receiver(RX) parameters:F21-E2-RXC
Material	Glass-fiber reinforced Nylon
Enclosure protection class	IP65
Frequency range	UHF:425~446MHz
Transmitter power	≤10dBm
Receiver power supply	AC/DC24-48V/100-440V
Safety Code	32 bits(4.3billion)
Temperature range	-40ºC~+85ºC
Control distance	30 to 50 meters

Packing list:
Note: Batteries usually are not provided as it is forbidden to ship by air or by sea. Typical Applications
Application:
Wireless remote controls are widely applied for lifting equipment, construction machinery, cargo loading/unloading machines, -Concrete Pumps, PLC Integration, Industrial automation control, Tower Cranes, Tow trucks , Vehicle,Mobile Equipment, Conveyor Control liftswater supply system, data transmission, door control, theiron-smelting and steel-making, the automobile manufacturing, paper-making and chemical industry, steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipment and sites which can be worked by radio controls.
