Product Description

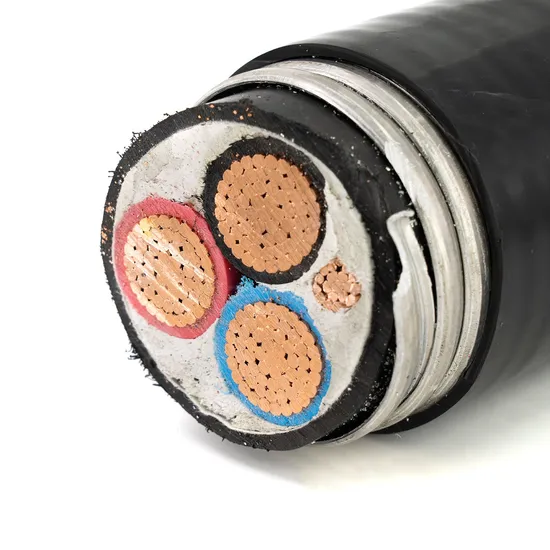

14AWG-1000KCMIL 3C Teck90 cable

Conductor: annealed bare copper wires, or compact aluminum 8000 series wires, class B. Insulation: Cross-linked Polyethylene (XLPE) Type RW90 Color: Black, white for 2 conductors;
Black ,red, blue for 3 conductors;
Black, red, blue, white for 4 conductors. Bonding conductor: annealed bare copper wires, or compact aluminum 8000 series wires, class B. Inner Jacket: Flame-retardant and moisture resistant Polyvinyl Chloride (PVC) Armour: Aluminum Interlock Armour (AIA); Outer-jacket: Low-temperature, moisture and sunlight resistant Polyvinyl Chloride (PVC), black
Application:
Suitable for use in exposed or concealed wiring in dry or wet locations, in
ventilated or ladder type cable trays in dry or wet conditions, on walls or beams, or directly buried.
Suitable for use in hazardous locations: Class I - Groups A, B, C and D, Class II - Groups E, F and G, Class III - All Groups
Standard: CSA C22.2 No. 131, Type TECK90 cable;
CSA C22.2 No. 38, Thermoset insulated wires and cables (Type RW90)
FT4 - Flame Test (70,000 BTU/Hr - Vertical Tray Flame Test)
Working temperature: -40ºC to +90ºC
Voltage: 600V

Phase Conductor		Bonding Conductor	Phase conductor single wire numbers	Nominal thickness of XLPE insulation	Approx. diameter after assembly	Nominal thickness of inner sheath	Approx. Diameter armoured	Nominal thickness of outer sheath	Approx. O.D. of cable
Core	AWG or Kcmil	AWG or Kcmil	Nos.	mm	mm	mm	mm	mm	mm
3	14	14	7	0.76	7.3	1.14	14.7	1	17
3	12	14	7	0.76	8.3	1.14	15.7	1	18
3	10	12	7	0.76	9.7	1.14	17	1	19
3	8	10	7	1.14	12.3	1.52	20.4	1	22
3	6	8	7	1.14	14.2	1.52	22.3	1	24
3	4	8	7	1.14	16.6	1.52	24.8	1	27
3	3	6	7	1.14	17.9	2.03	27.1	1	29
3	2	6	7	1.14	19.6	2.03	28.8	1	31
3	1	6	19	1.4	22.4	2.03	31.6	1	34
3	1/0	6	19	1.4	24.5	2.03	33.6	1	36
3	2/0	6	19	1.4	26.7	2.03	35.8	1	38
3	3/0	4	19	1.4	29.2	2.03	38.4	1.2	41
3	4/0	4	19	1.4	32.1	2.03	41.3	1.2	44
3	250	4	37	1.65	35.7	2.03	44.8	1.2	47
3	300	4	37	1.65	38.4	2.79	49.1	1.2	51
3	350	3	37	1.65	40.9	2.79	51.6	1.2	54
3	400	3	37	1.65	43.3	2.79	54	1.2	56
3	450	3	37	1.65	45.5	2.79	56.2	1.2	59
3	500	3	37	1.65	47.5	2.79	58.2	1.5	61
3	550	3	37	2.03	51.3	2.79	62	1.5	65
3	600	2	61	2.03	53.4	2.79	64.1	1.5	67
3	650	2	61	2.03	55.1	2.79	65.8	1.5	69
3	700	2	61	2.03	56.9	2.79	67.6	1.5	71
3	750	2	61	2.03	58.6	2.79	69.3	1.5	72

Company profile Certification Whorkshop First class testing equipment
FAQ
1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price,please call us ortell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
