Product Description
Product Description

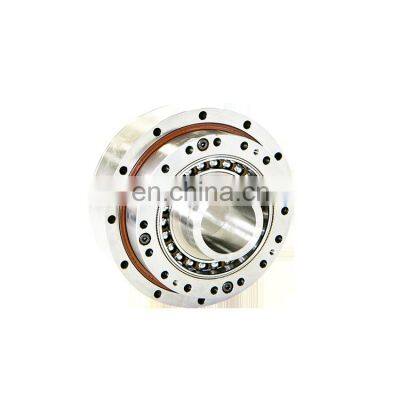

product principleProduct parametersModel naming rulesModel example: L - CSG - 14 - 50 - C - I - ST①L: Specific identifier②CSG: C: flexible wheel shape. Cup shape: C; Hollow type: H. S: Length of flexible wheel. Standard length: S; D. G: High torquedensity.③14: harmonic gear pitch circle diameter 14mm, all specifications code: 14, 17, 20, 25, 32, 40, 50, 58.④50: speed ratio. Commonly used speed ratio: 30, 50, 80, 100, 120, 160.⑤C: whole machine (integrated bearing); P: component type (three-piece set); CL: Light weight type.⑥ⅰ: Standard type, key connection. ⅱ : cross slider shaft connection. ⅲ : cylindrical hollow type, screw connection type; ⅳ :solid axis input type.⑦ST: Compact, smaller volume.LHSG-I seriesLhs-i /LHSG-I series flexible wheel is a standard tube structure with middle flip-side. The whole machine has a compact structure.The input shaft is directly matched with the inner hole of the wave generator and connected by flat keys. Both can be fixed by rigid wheel end, flexible wheel end output connection mode; Flexible wheel end can also be fixed, rigid wheel end output connection mode.Lhsg-i series is a high-torque model with the same structure, link mode, input and output mode as LHS-I series reducer, but the torque bearing capacity is 30 times higher than LHS seriesLHSG-II seriesLhs-ii /LHSG-II series flexible wheel is a standard tube structure with middle flip side. The whole machine has a compactstructure. The input shaft is connected with the inner hole of wave generator through a cross slider coupling. Both can be fixed by rigid wheel end, flexible wheel end output connection mode; Flexible wheel end can also be fixed, rigid wheel end output connection mode.Lhsg-ii series is a high-torque model with the same structure, link mode, input and output mode as LHS-I series reducer, but the torque bearing capacity is 30% higher than LHS series.LHSG-Ⅲ seriesLhs-iii series flexible wheel is a standard cylinder structure of middle flanged shape. There are large diameter hollow shaftholes in the middle of the wave generator CAM, and supporting bearings are designed inside the decelerator. The whole sealing structure is easy to install, and it is very suitable for the occasions when the line needs to be threaded from the center of the decelerator. Lhsg-iii series is a high-torque model with the same structure, link mode and input/output mode as LHS-I series reducer, but the torque bearing capacity is 30% higher than LHS series.LHSG-CL-Ⅲ seriesThis series is based on lHS-III /LHSG-III series harmonic reducer, through the optimization of structure and material, on thepremise of keeping the original performance parameters unchanged, greatly reduce the weight of harmonic reducer itself, so that it can bear faster speed and greater load after being used in industrial robots.LHSG-Ⅳ seriesLhs-iv /LHSG-IV series flexible wheel is a standard cylinder structure with a flip-side, the wave generator CAM has its own input shaft, the reducer is designed with support bearings, fully sealed structure, easy to install, very suitable for the input end of the bevel gear or synchronous belt transmission occasions.Lhsg-iv series is a high-torque model with the same structure, link mode, input and output mode as LHS-I series reducer, but the torque bearing capacity is 30% higher than LHS series.Product features and advantages Product UnderstandingThrough research, we found that harmonic meshing is based on the geometric mapping theory of curve (surface), which is a new theory with independent intellectual property rights of our company, applied to harmonic reducer. The traditional theory is based on Willis theorem, that is, on this basis, the conjugate tooth profile is deduced, and the harmonic meshing is special, which is actually non-conjugate. Our theory has been optimized and expanded to make the meshing range wider and more in line with the actual situation of harmonic meshing.All new "P" teethOur P tooth has the following advantages compared with similar foreign products:(1) Low tooth height, do not need a deep meshing distance can obtain a large amount of meshing, can bear a large torque.(2) The tooth width is larger, the radian of the tooth root increases, and the risk of fracture failure is reduced.③ The life of the flexible wheel can be greatly improved because of the small deformation of the flexible wheel.④ As many as 20% ~ 30% of teeth are engaged, and the specific pressure of tooth surface is small.Product packagingproduct certificationCompany ProfileWarranty and after-sales service1.two years warranty for machine2.We have a professional English after-sales engineer team,and supply online service 24 hours by Whatsapp,Skype, and so on. or by phone if urgently.3.We will provide you with a detailed video tutorial to teach you how to use the machine .4.lf you need installment support,we can arrange our engineer fly to your place to helpFAQQ: Do you support customized manufacturing?A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.Q: How long is your delivery time?A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according toquantity.10-20 days if customized manufacturing.Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample with sample price.Q: What is your terms of payment ?A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.If you have another question, pls feel free to contact us as belowTitle goes here.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
>>
