US$1,810.00
|
1 Piece
(MOQ)
|
Basic Info.
Lift Mechanism
Scissor Lift
Carrying Capacity
Middle-Level
Driven Type
DC or AC, DC and AC
Feature
Explosion-Proof, Insulating, Limit Switch
Certification
CE, ISO 9001
Delivery
15 Days or Rush as Requested
Safe Working Load (Kg)
240
Max Working Height (M)
5.00
Max Platform Height (M)
3.00
Platform Size (M)
1.15*0.70
Lifting Motor (VDC/Kw)
12/0.8
up/Down Speed (Sec)
34/20, 34/21
Transport Package
Steel Pallet+Buffer Sponge+Bubble Bag+Water Proof
Origin
Xiangcheng District, Suzhou, China
Production Capacity
200 Units Per Month
Product Description
Company Introduction
Boonai (Suzhou) Lift Equipment Co., Ltd as a mordern manufacturing enterprise is specialized in aerial work platform,
providing package service for design, production, sales and after-sales.
With business philosophy of "Quality First, Client Oriented", we are striving for building a reputable brand of Boonai
by following the steps of the giants for the innovation of products and the improvement of process and purchasing
the perfection on every detail.

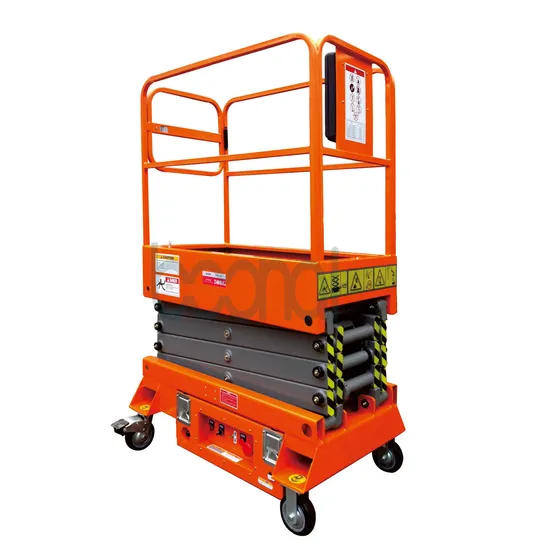

Mini Scissor Lift (Mobile) Max working height 5(m)
APPLY TO Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Product brand:Boonai (suzhou)
Parameters
| Model | JCPT0507 | JCPT0607 |
| Safe Working Load (kg) | 240 | 240 |
| Number of passengers | 1 | 1 |
| Max working height (m) | 5 | 5.8 |
| Max height of platform (m) | 3 | 3.8 |
| Overall length (m) | 1.3 | 1.3 |
| Overall width (m) | 0.76 | 0.76 |
| Overall length (rails up ) (m) | 1.83 | 1.92 |
| Overall length (rails down ) (m) | 1.43 | 1.52 |
| Platform size (m) | 1.15*0.70 | 1.15*0.70 |
| Min ground clearance (m) | 0.06 | 0.06 |
| Wheel base (m) | 0.99 | 0.99 |
| Lifting motor (VDC/KW) | 12/0.8 | 12/0.8 |
| Up/down speed (sec) | 34/20 | 34/21 |
| Accumulator (V/Ah) | 12/120 | 12/120 |
| Charger (V/A) | 12/10 | 12/10 |
| Tire (in) | 6 | 6 |
| Overall weight (kg) | 402 | 436 |
Ray
Boonai(Suzhou)Lift Equipment Co.Ltd
boonailift.en.made-in-china.com
>>
