Hot Sale Economic Honeycomb Core Machine

US$100,000.00 1 Set (MOQ)

Basic Info.

Tube Machine Type
Other
Gumming Type
Double Side
Layers of Roll Paper
2 - 8
Reelpipe Speed
500cuts/Min
Wall Thickness of Paper Tube
8-100mm
Certification
CE
Condition
New
Process
Finishing Process Machine
Usage
Packing Paper Machine
Automatic Grade
Automatic
Computerized
Yes
Dimension(L*W*H)
24000*3800*2500mm
Power(W)
30kw
Weight
20t
Transport Package
Sea Worth Package
Trademark
shenxi
Origin
China

Product Description

This machine is the newest type of honeycomb core making machine. It uses the raw paper to produce honeycomb paper in one stop. Which means connecting machine and cutting machine can be left out. The advantage of this machine is to save labor cost and high degree of automation.

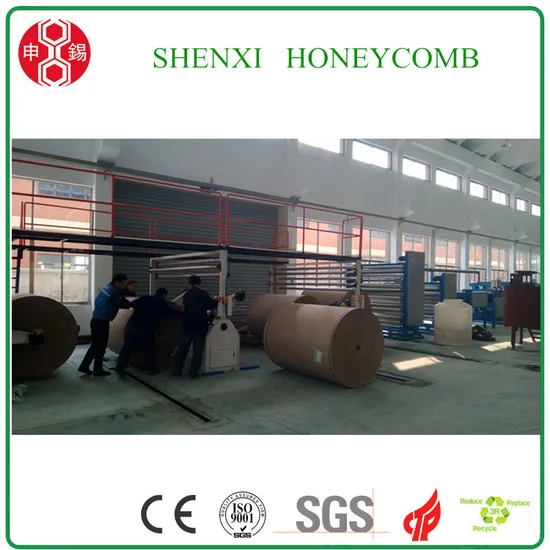

Machine Automatic honeycomb core production line
Model HCM-1600
Effective width of core paper 1600mm
Configuration



 1. 3 sets of paper Roll stands
2. Glue station 1&2
3. Heating unit
4. Rubber roller pulling system
5. Third gluing station
6. Cutter& Delivery
7. core conveyor
Width of input paper 1600mm
Width of paper core(expanded) 1300mm
Gluing principle Gluing roller transmission coating
Max. Designing Cutting Speed 380 cuts/minute
Production Capacity 6000m2/shift(after expanded,13.5mm cell size,340cuts/minute, 7 hours non-stop working)
Qty of Paper reels 6
Thickness of honeycomb core 10-100mm
Cell side length 6-20 mm (choose two)
Installation power 40KW
Cutting Direction Horizontal cut
Dimension 24000*3800*2500
Applicable paper Corrugated paper for honeycomb core(100-180g/m2)
Manpower 1-2
