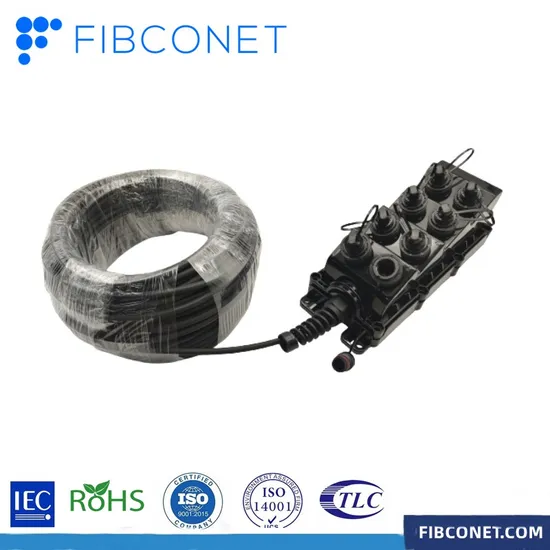

FTTH Optitap Compatible FTTX Waterproof Fiber Optic Enclosure Terminal Box with Tuneable Flat Drop Tail

Product Description

FTTH OptiTap Compatible FTTx Waterproof Fiber Optic Enclosure Terminal Box With Tuneable Flat Drop TailFiber optial termianl box are specially designed to protect joints of optic cable.
Excessive fibers can be stored in storage baskets behind the splice trays. The optical fibers are fusion on sides of the tray. One tray can splice 24 fibers; Available for 2 trays to splice total 48fibers. Adopt modified PP material, with anti-UV, anti-aging and corrosion resistance material. Good quality and long service life. It is reusable.
Application :
It can be installed in aerial locations, ducted applications, direct buried, manholes. Small volume but large capacity.
Features:
1. Excessive fibers can be stored in storage baskets. Easy in fiber management.
2. Fully mechanical sealing. Easy installation and reentry. No other sealing adhesive tape is needed.
3. Base and dome sealed with clamp and O-ring system. Cable entry ports sealed with rubber.
4. The splice trays are hinged for access to any splice tray, without disturbing other trays.
5. The inner parts and fixing parts are made of stainless steel
6. With a earthing device protect it from damage by lightning
7. Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular). And the product can be used in any environment (aerial, buried, handhole, manhole)and in many applications(tap-off, expressed, branch, and repair)
Technical Parameter:
1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade
2. Atmospheric Pressure: 70~ 150Kpa
3. Axial Tension: >2000N/ 1min
4. Stretching Resistance: 2500N/ 10 square centimetre( 1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV/ 1min, no arcover or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius: 30mm. Low optical loss.

Model	Trays	Tray capacity	Total Capacity (fibers)	Dimension mm	Entry Port dia.	Raw material
FOSC4 00M33	2	24	48	359*277* 120	2 inlets and 2 outlets <25mm 16round ports for drop cable	Dome & base : Modified P.P+GF Tray: ABS
Sealing Method			Mechanical and heat-shrinkable seals

Similar Product:
-------------------------------
Starting with the Copper age in 1992, FIBCONET has gone through nearly 18 years in the fiber optic communication area.Now FIBCONET has 3 manufacturing centers, Ningbo, Guizhou, and Northeast China, covering more than 10,000 sqm, owning 800 well-trained staff and engineers, reaching the production capacity of PLC Splitter in 300,000 pcs and fiber optical connectors in 10 million pcs per month. As the national high-tech enterprise, FIBCONET also strives for more efforts in innovation. 50 patents, 15 invention patents have been attained.FIBCONET focus on the fiber optical components, such as PLC splitter, patch cord, adapter, connectors, etc. Especially for the PLC splitter, can work in an extremely cold environment, even in the -50 centigrade degree, like in Russia, FIBCONET's PLC can still help transmit the optical signal very well, And if you hope to get the 0.1 dB for insert loss on your connectors, which is hard for the regular production, FIBCONET also can reach you.FIBCONET supplies goods all over the world through trading companies and agents, like Corning in the USA, Vodafone in Europe, Furukawa in Japan., etc. ISO9001, Rohs, and TLC certificates have already been approved by the market and our customers.With the new corporate vision: To be the top supplier for the fiber optical components, "Keep connecting" is our Motto, not only means that we produce the connectors and connect the fiber optic equipment, but also connect with the new technology, connect with every FIBCONET person connects with our customers worldwide.
FH fiber optical Terminal box waterproof Distribution Box with 12/24por
1. Are you a manufacturer or trade company?
We are the manufacturer with more than 20 years of history.
2. What is your fiber brand?
Our fiber brands include: YOFC, Corning, Fiber Home, J-fiber, POFC
3. What is your main product?
Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord, and Fiber Terminal Box. Except that, we have very good prices for part of the fiber tools! FTTH fiber optical Terminal box waterproof Distribution Box with 12/24port
4. How can we place an order?
After the agreement is made on the product parameters, we will make a proforma invoice for you to confirm. We will arrange the production and delivery after receiving advance payment (deposit). If you have your ship forwarder, we will use your ship forwarder to deliver goods; if you don't have a shipping forwarder, we can ship them by our agent shipping company which offers a competitive freight cost.
5. What is the quality of your products?
All of our products are of high quality. We promise a 100% recall policy if products are unqualified, and we can write it into our contract!
6. How do you arrange the shipping?
Solution A: Fibconet takes care of everything. Clients only need to collect cargo in a local port or wait for cargo delivery to their office. There are two types of shipping methods available: by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can ship them according to your express account or ship them by our agent company, the delivery time is about four to seven days).
Solution B: Clients assign a Shenzhen logistic company to do the shipping, Fibconet follows the shipping company's instructions and finishes the delivery.
7. How can you guarantee the delivery time?
To avoid delay, we have built a complete and professional procedure system from production to delivery. We have rich experience in production and delivery. We can regulate the penalty clause in the contract for the late delay.
8. What's your best price for your passive fiber optic product?
Based on the quality and quantity of goods, we would quote the best matching price for you all the time.
9. What is your quality control for your fiber optic product?
1. Source Guarantee. We have our long-term cooperation with raw material suppliers. All the products are ROHS certificated and meet exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to the finished product, such as package, surface, physical, and optical tests. All the products are 100% tested.
3. Optical Test. Our products are strictly tested by IEC and ITU standards.
4. We have a 30% spot test by Quality Assurance Department after the products are finished.
10. Why choose Fibconet Fiber Optic to cooperate?
1. We have a first-class production line and a strict quality management system.
2. We have a professional procedure system and a big production capacity to guarantee fast delivery and on-time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate new products based on our rich experience.
5. We have a professional team to provide a comprehensive one-stop service for you.
Please always feel free to contact us with any questions, it's our honor to be in service of you!
